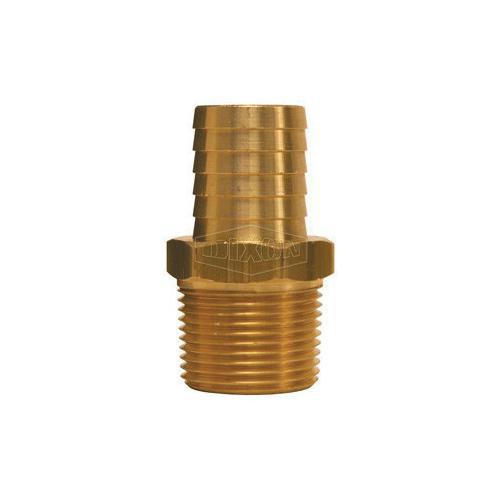

Dixon® 1021612C 102 Standard Insert, 3/4 x 1 in Nominal, MNPT x Hose Barb End Style, Brass, Domestic
Dixon® 1021612C 102 Standard Insert, 3/4 x 1 in Nominal, MNPT x Hose Barb End Style, Brass, Domestic
-
BrandDixon®
-
UPC089109710942
-
Manufacturer Part Number1021612C
-
CountryUSA
-
MaterialBrass
-
Fitting/Connector TypeAdapter
-
TypeStandard
-
Nominal Size3/4 x 1 in
-
Dimensions1 in ID Hose
-
Domestic/ImportDomestic
-
End StyleMNPT x Hose Barb
-
Temperature Rating-40 to 160 deg F
-
Pressure Rating150 psi
-
Number of Barb5
-
Hex Size1-1/16 in
-
Series102
-
Barb Length1.19 in
-
Length2-1/16 in
- All standard hose fittings are intended for use with hose clamps or crimped ferrules
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- 5 barbs
- 7/32 in W hex
- 1-1/32 in Dia barb
- Fixed fitting swivel torque
- Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
- Barbed fitting for a tight seal on hoses
- Dryseal construction
-
UNSPSC40141734
-
Package Description20/BX
-
Alternative Part NumberBN86|102-1612
-
WarrantyLimited
-
Catalog
-
Specification Sheet
Recently Viewed
Dixon® 1021612C 102 Standard Insert, 3/4 x 1 in Nominal, MNPT x Hose Barb End Style, Brass, Domestic
Dixon® 1021612C 102 Standard Insert, 3/4 x 1 in Nominal, MNPT x Hose Barb End Style, Brass, Domestic

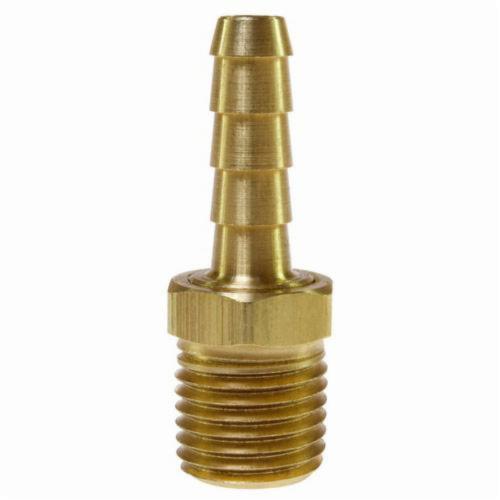

Coilhose® 6-252V Moldflow Pipe Connector, 1/4 in x 1/4-18 Nominal, MPT End Style, Brass, Domestic
