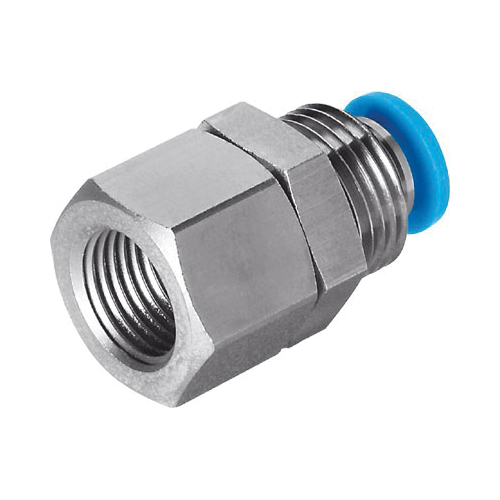

Festo 153170 QSSF Push-In Straight Bulkhead Fitting, 11 mm Nominal, G3/8 FNPT x 12 mm Tube, -0.95 to 14 bar Pressure, Brass
Festo 153170 QSSF Push-In Straight Bulkhead Fitting, 11 mm Nominal, G3/8 FNPT x 12 mm Tube, -0.95 to 14 bar Pressure, Brass
-
BrandFesto
-
Manufacturer Part Number153170
-
CountryUSA
-
Temperature Rating-10 to 80 deg C
-
FinishNickel Plated
-
MaterialBrass
-
Pressure Rating-0.95 to 14 bar
-
Nominal Size11 mm
-
Hex Size24 x 27 mm
-
SeriesQSSF
-
Length36.8 mm
-
End StyleG3/8 FNPT x 12 mm Tube
- The stainless steel retaining claw within the fitting holds the tubing securely without damaging its surface
- Vibration and pressure surges are safely absorbed
- A nitrile rubber sealing ring guarantees a perfect seal between standard OD tubing and the body of the fitting
- All brass parts of Festo push-in fittings are nickel plated and are thus highly resistant to corrosion
- The tapered ISO R-threads have a self-sealing PTFE coating, which allows the fitting to be re-used up to five times without the need for additional sealing components
- The fitting can be aligned after assembly
- Low corrosion stress
-
Alternative Part NumberQSSF-3/8-12-B
-
UNSPSC24110000
-
Package Description10/PK
-
Standards/ApprovalsFN 940070 CRC-1 Standard|RoHS Compliant
-
