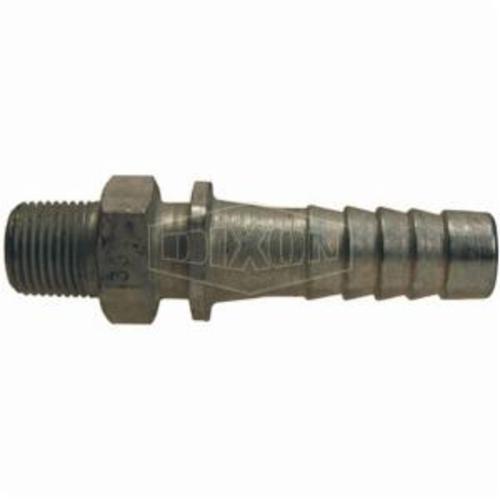

Dixon® 3510 3500 Nipple, 3/8 x 1/2 in Nominal, MNPT x Hose Shank, 600 psi Pressure, Steel, Domestic
Dixon® 3510 3500 Nipple, 3/8 x 1/2 in Nominal, MNPT x Hose Shank, 600 psi Pressure, Steel, Domestic
-
BrandDixon®
-
Manufacturer Part Number3510
-
CountryUSA
-
Temperature Rating70 deg F
-
FinishZinc Plated
-
MaterialSteel
-
Pressure Rating600 psi
-
Nominal Size3/8 x 1/2 in
-
Series3500
-
Domestic/ImportDomestic
-
End StyleMNPT x Hose Shank
- The constant vibration created by air tools, like air drills and pavement breakers, is destructive to air hose couplings, especially the quick-acting type
- To provide protection against coupling breakage and related hazards, Dixon® recommends the use of a whip hose
- To construct a whip hose, connect one end of a short (3 to 10 ft ) air hose to the air tool using a 3500 type steel nipple
- Connect the other end of the hose to the air supply using the standard quick-acting coupling
- The heat treated 3500 nipple will withstand vibration far better than the standard coupling and provide a safer connection
- The whip hose should remain permanently connected to the tool
- For air and water service only
- Do not use in connection with drinking water
- Wash hands after handling
-
UNSPSC40141734
-
Package Description100/BX
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
-
