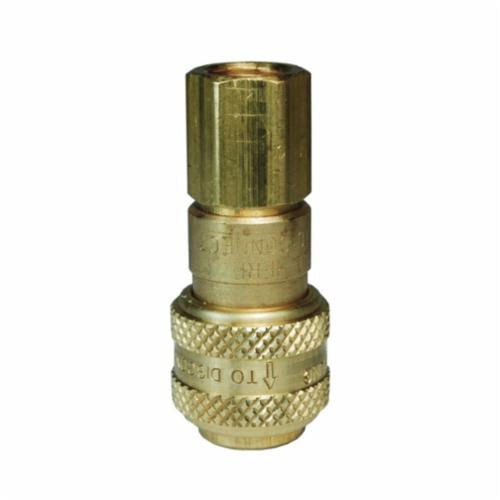

Dixon® 6DF6-B D Automatic Interchange Pneumatic Coupler, 3/4 in, Quick-Connect x FNPT, Brass
Dixon® 6DF6-B D Automatic Interchange Pneumatic Coupler, 3/4 in, Quick-Connect x FNPT, Brass
-
BrandDixon®
-
Manufacturer Part Number6DF6-B
-
CountryUSA
-
Temperature Rating-40 to 250 deg F
-
FinishPolished Chrome
-
MaterialBrass
-
Fitting/Connector TypeCoupler
-
Pressure Rating500 psi
-
TypeAutomatic Interchange
-
Nominal Size3/4 in
-
Hex Size1-5/16 in
-
SeriesD Series
-
Dimensions1.73 in OD x 2.99 in L
-
End StyleQuick-Connect x FNPT
- Machined components are manufactured using solid bar stock
- 200 cfm flow rate
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
- Nitrile (Buna-N) seals are standard
- Steel prong valve
-
UNSPSC40183100
-
Package Description20/BX
-
Standards/ApprovalsRoHS Compliant
