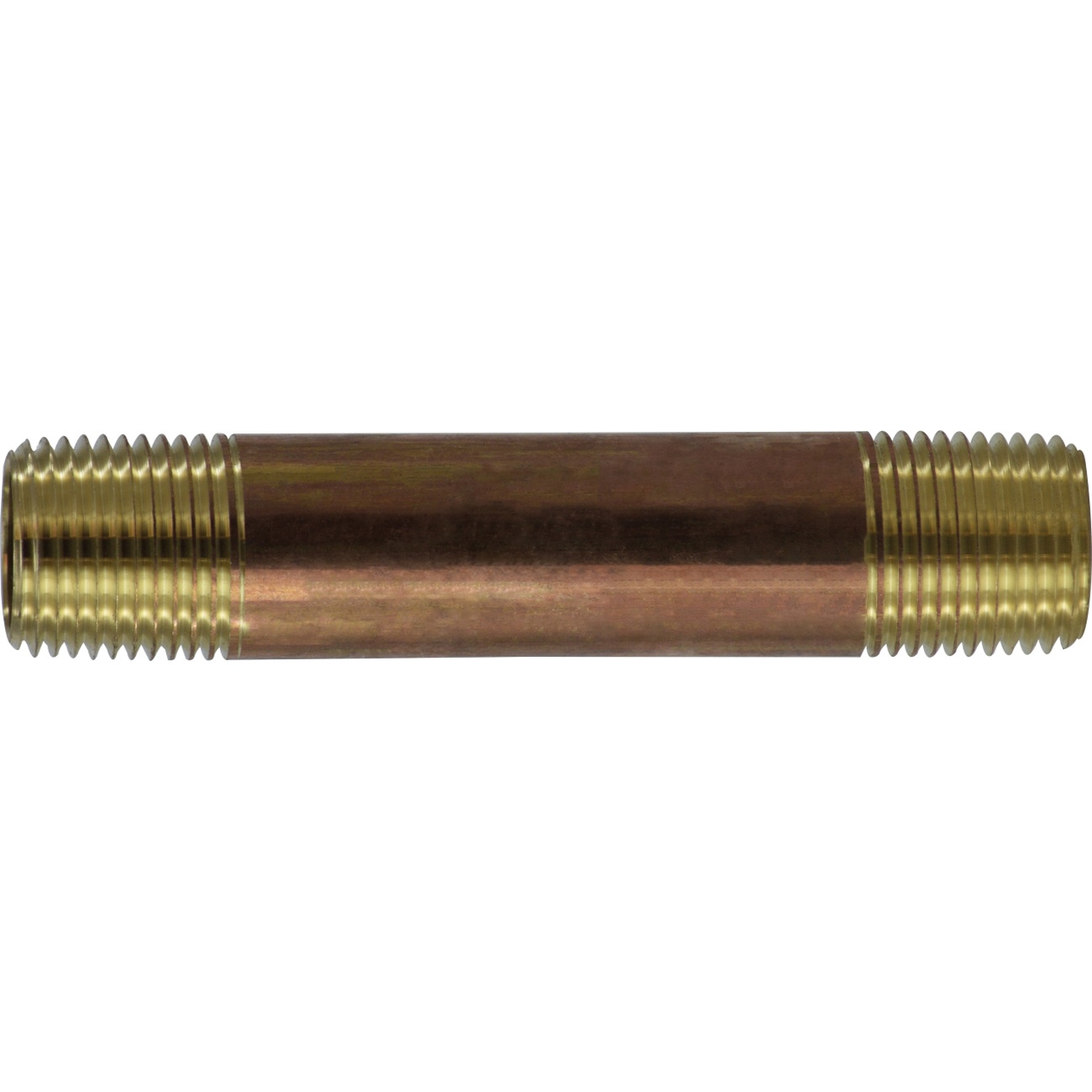

HCI Preferred Supplier 40068 Standard Pipe Nipple, 1/2 in Nominal, 5 in L, Brass, NPT End Style
HCI Preferred Supplier 40068 Standard Pipe Nipple, 1/2 in Nominal, 5 in L, Brass, NPT End Style
-
BrandGeneric
-
Manufacturer Part Number40068
-
CountryUSA
-
Temperature Rating100 to 400 deg F
-
MaterialBrass
-
Pressure Rating900 psi at 100 deg F/900 psi at 200 deg F/790 psi at 300 deg F/340 psi at 400 deg F
-
Method of ManufactureSeamless
-
ColorRed
-
TypeStandard
-
Nominal Size1/2 in
-
Dimensions0.626 in ID x 0.84 in OD x 0.107 in THK
-
Domestic/ImportImport
-
Length5 in
-
End StyleNPT
- Meets legislation for potable water application
- Lead free - no lead 125LB seamless threaded red brass nipples - 2200
- The chemical analysis is 85% copper and 15% zinc
-
UNSPSC40173301
-
Package Description25/BX
-
Standards/ApprovalsANSI B1.20.1|ANSI B687-96|NSF-61 Approved|MS51846|RoHS Compliant|Federal Specifications WWN-351|Federal Government 5.3874|Federal Public Law 111-380|California AB 1953|Maryland HB-372|Louisiana Act No. 362|Vermont Statute|Title 9 Chapter 63: 247h|ASTM B43/ASTM B687-96|PROP65: This product can expose you to chemicals, including lead, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
-
