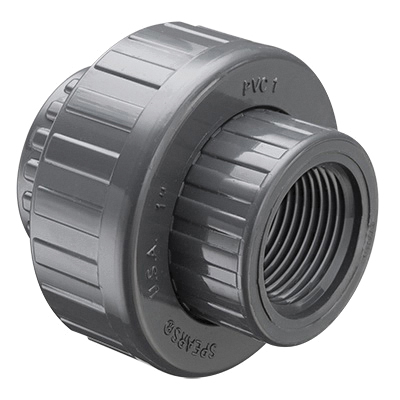

NIBCO 1-1/4" PVC SCH-80 SLIP X FPT UNION NIB 899-012
All PVC SCH 80/XH fittings shall be produced by Spears® manufacturing company from PVC type I, cell classification 12454, conforming to ASTM Standard D1784. All injection molded PVC SCH 80/XH fittings shall be certified for potable water service by NSF® international manufactured in strict compliance to ASTM D2467. All fabricated fittings shall be produced in accordance with Spears® general specifications for fabricated fittings. All PVC flanges shall be designed and manufactured to meet CL150 bolt pattern per ANSI Standard B16.5 and rated for a maximum internal pressure of 150 psi, non-shock at 73 deg F.
-
BrandSpears®
-
UPC054211171646
-
Manufacturer Part Number899-012
-
CountryUSA
-
Temperature Rating73 deg F
-
MaterialPVC
-
Fitting/Connector TypeUnion
-
Pressure Rating235 psi
-
Method of ManufactureMolded
-
ColorGray
-
TypeO-Ring
-
Schedule RatingSCH 80/XH
-
Nominal Size1-1/4 in
-
Seal MaterialEPDM O-Ring
-
Domestic/ImportDomestic
-
Length2-7/8 in
-
End StyleSocket x FNPT
- ASTM D-1784: Rigid poly vinyl chloride (PVC) compounds and chlorinated poly vinyl chloride (CPVC) compounds
- Do not use Lasco® fittings for compressed air or gases
- Do not test PVC piping systems with compressed air or gases
- Do not use fittings with liquids not recommended by Lasco®
- Fitting modification voids the warranty
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | S899012 |
-
UNSPSC40174908
-
Package Description5/CT
-
Standards/ApprovalsANSI B16.5|ASTM D1784|ASTM D2467|NSF Approved
-
Specification Sheet
-
Catalog
Recently Viewed
All PVC SCH 80/XH fittings shall be produced by Spears® manufacturing company from PVC type I, cell classification 12454, conforming to ASTM Standard D1784. All injection molded PVC SCH 80/XH fittings shall be certified for potable water service by NSF® international manufactured in strict compliance to ASTM D2467. All fabricated fittings shall be produced in accordance with Spears® general specifications for fabricated fittings. All PVC flanges shall be designed and manufactured to meet CL150 bolt pattern per ANSI Standard B16.5 and rated for a maximum internal pressure of 150 psi, non-shock at 73 deg F.
1-1/4 inch PVC Schedule 80 Socket Union featuring an EPDM O-ring seal. Within the NIBCO Chemtrol industrial plastics line, this component falls under the 4533E series designation.
