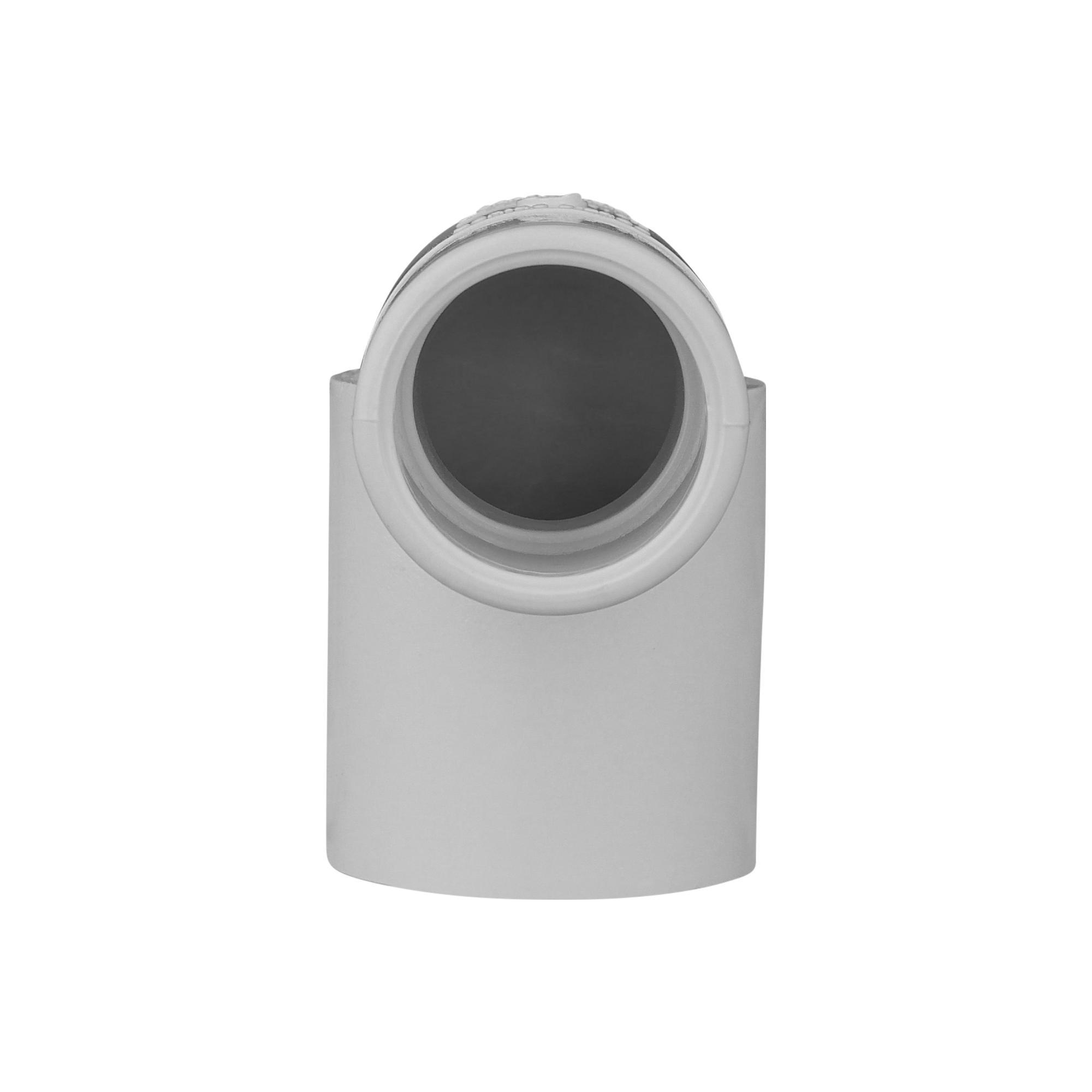

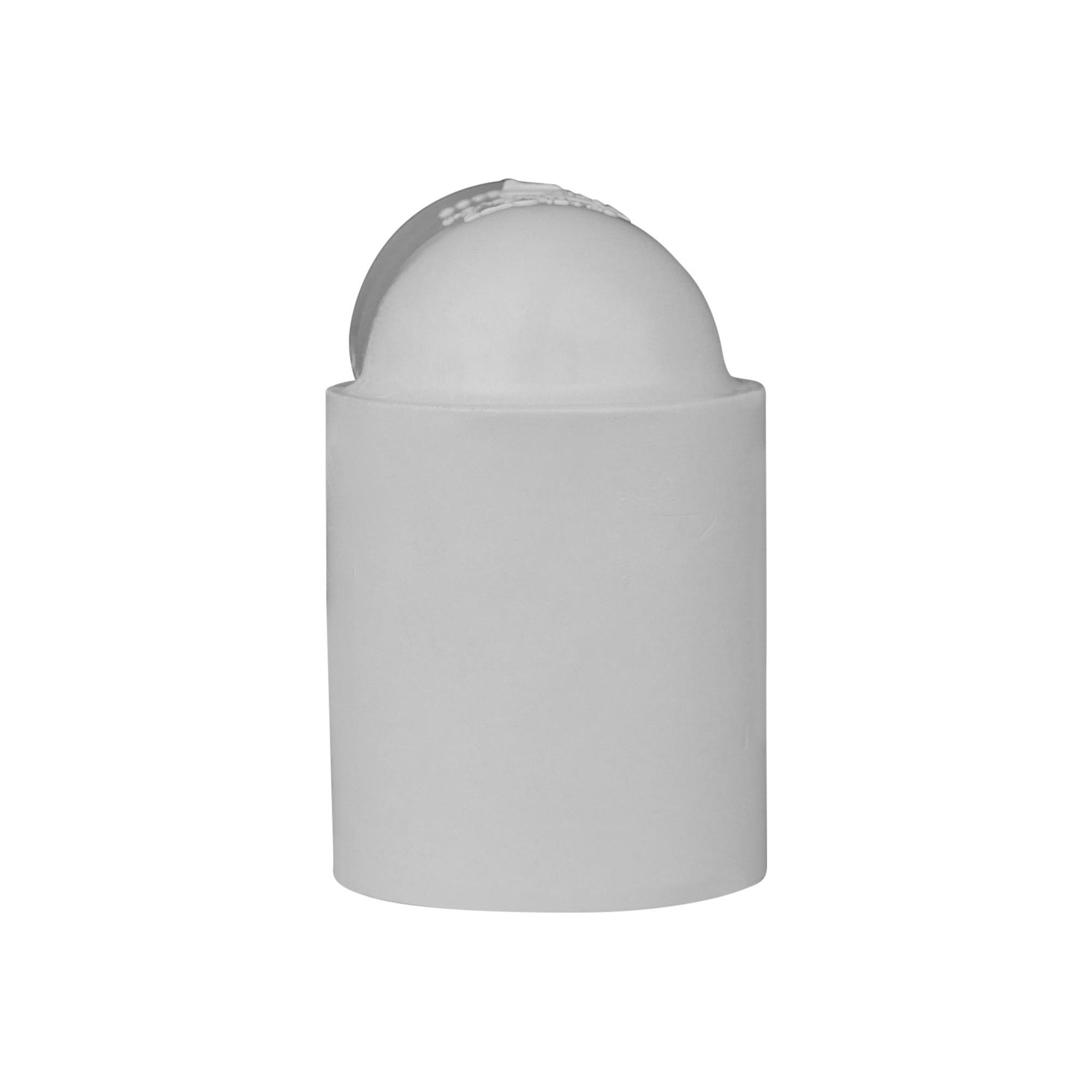

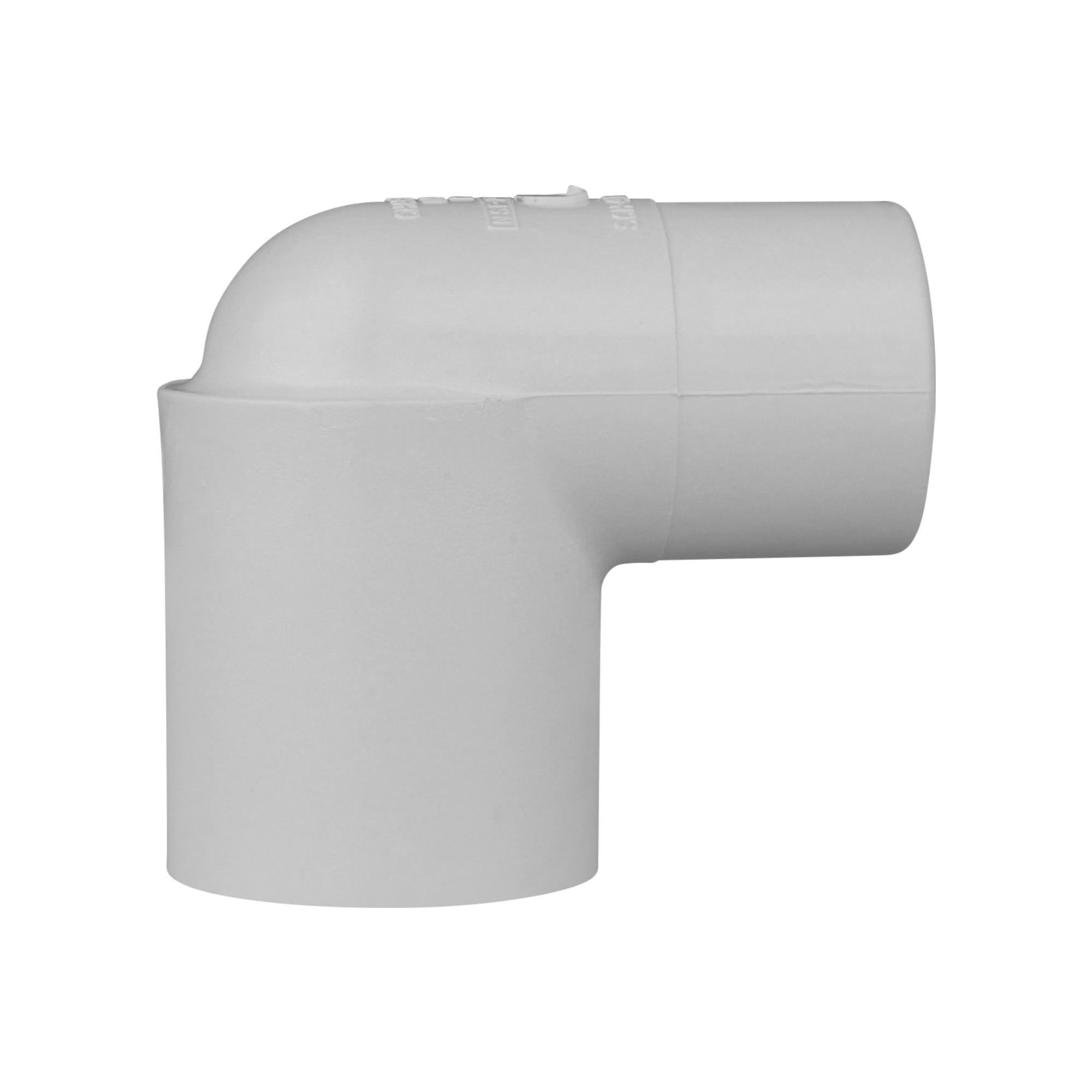

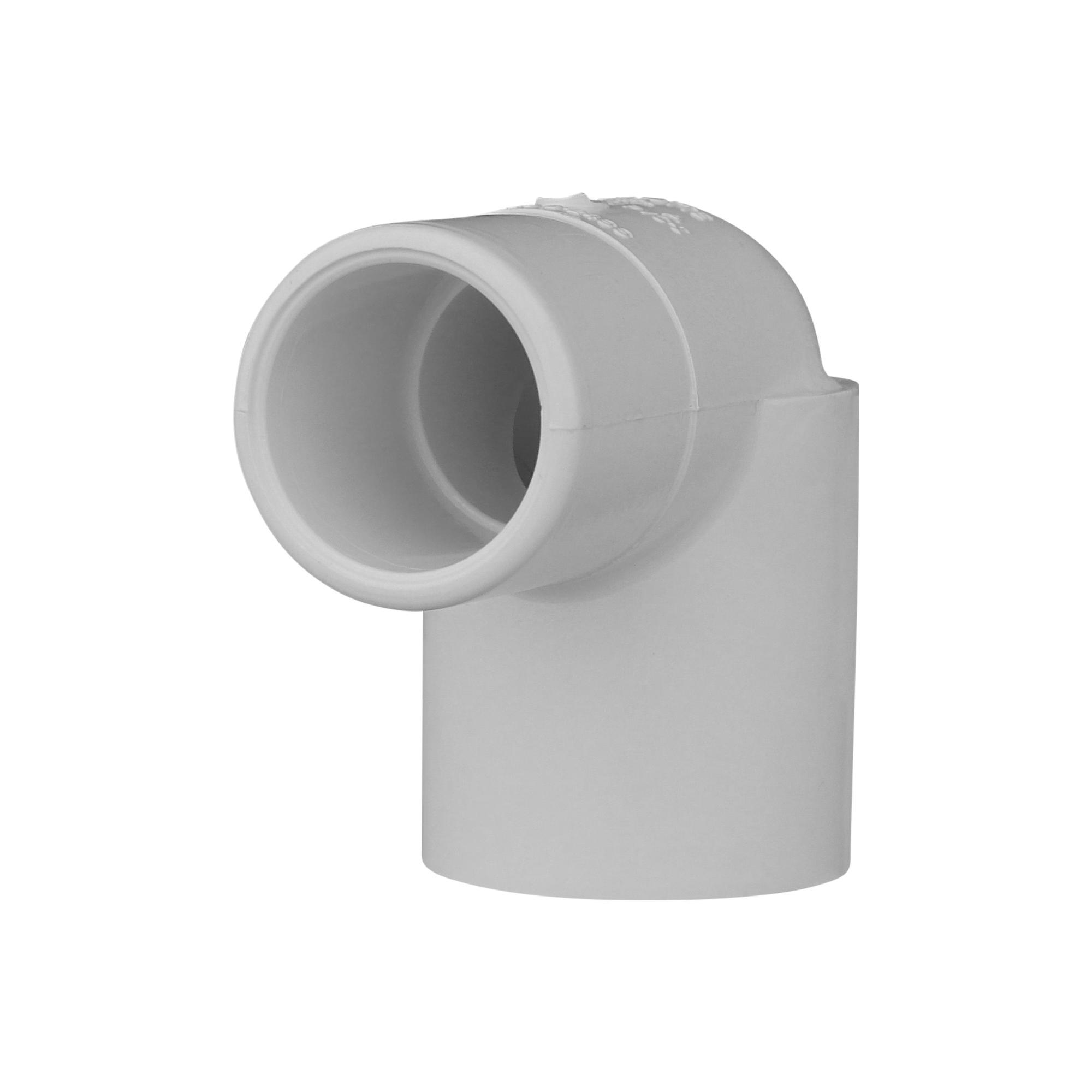

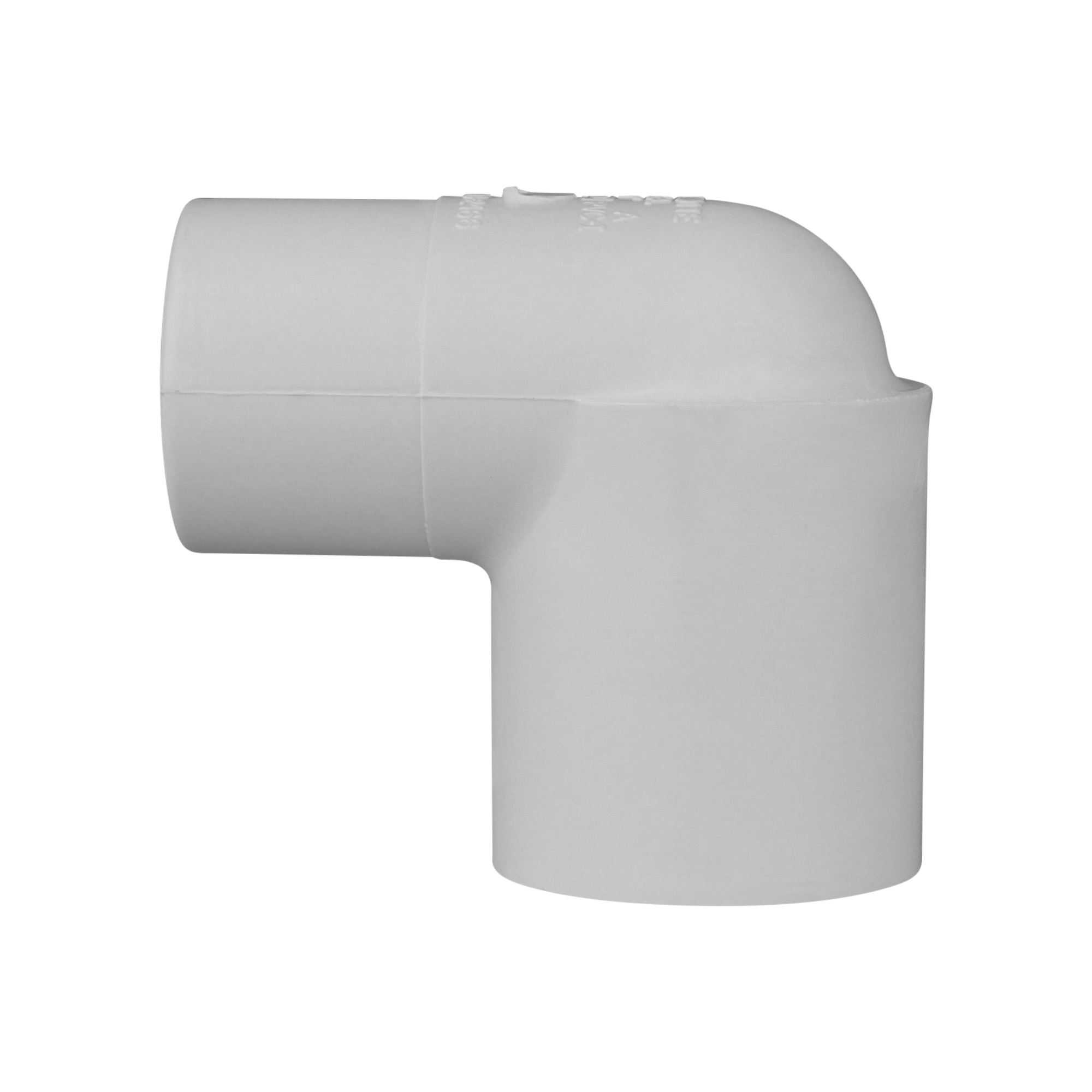

Charlotte PVC 02304 0800, 1 in nominal, Spigot x Socket end style, SCH 40/STD, PVC, Domestic
PVC Schedule 40 fitting that is for pressure systems where temperatures will not exceed 140° F. They are highly resilient, with high-tensile and high-impact strength. PVC Schedule 40 has better sound deadening qualities than
-
BrandCharlotte
-
UPC611942038787
-
Manufacturer Part NumberPVC 02304 0800
-
CountryUSA
-
MaterialPVC
-
Fitting/Connector Type90 deg Elbow
-
Pressure Rating150 psi
-
Schedule RatingSCH 40/STD
-
Nominal Size1 in
-
Domestic/ImportDomestic
-
End StyleSpigot x Socket
-
Temperature Rating140 deg F
-
ColorWhite
- PVC Schedule 40 fittings are for pressure applications have high impact strength and are intended for systems that will not exceed 140 F
- It is non-toxic, lightweight and easy to install
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | P40SS9G |
-
UNSPSC40172808
-
Standards/ApprovalsASTM D1784|ASTM D2466|NSF 14/61
-
Package DescriptionEACH
-
WarrantyLimited Warranty
-
SDS
-
Warranty Information
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
