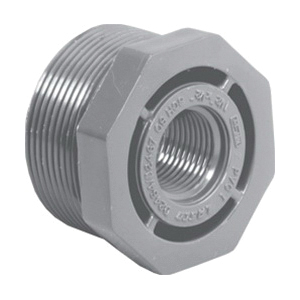

Lasco® 9839-338 Flush Reducing Bushing, 3 x 2 in, MNPT x FNPT, SCH 80/XH, CPVC, FKM O-Ring Seal, Domestic
Lasco® 9839-338 Flush Reducing Bushing, 3 x 2 in, MNPT x FNPT, SCH 80/XH, CPVC, FKM O-Ring Seal, Domestic
-
BrandLasco®
-
UPC025528179441
-
Manufacturer Part Number9839-338
-
CountryUSA
-
MaterialCPVC
-
Fitting/Connector TypeBushing
-
TypeFlush
-
Schedule RatingSCH 80/XH
-
Nominal Size3 x 2 in
-
Seal MaterialFKM O-Ring
-
Domestic/ImportDomestic
-
Length1-15/16 in
-
End StyleMNPT x FNPT
- ASTM D-1784: rigid poly vinyl chloride (PVC) compounds and chlorinated poly vinyl chloride (CPVC) compounds
- ASTM F-437: threaded chlorinated poly vinyl chloride (CPVC) plastic pipe fittings, SCH 80/XH
- Fittings are produced from CPVC type IV, grade I
- Listing: NSF® 14 and 61 (National Sanitation Foundation) for potable water services
- Do not use Lasco® fittings for compressed air or gases
- Do not test PVC piping systems with compressed air or gases
- Do not use fittings with liquids not recommended by Lasco®
- Fitting modification voids the warranty
-
UNSPSC40172309
-
Package Description5/CT
-
Standards/ApprovalsASTM D-1784/F-437/F-439|NSF 14/61
-
Specification Sheet
-
Catalog
