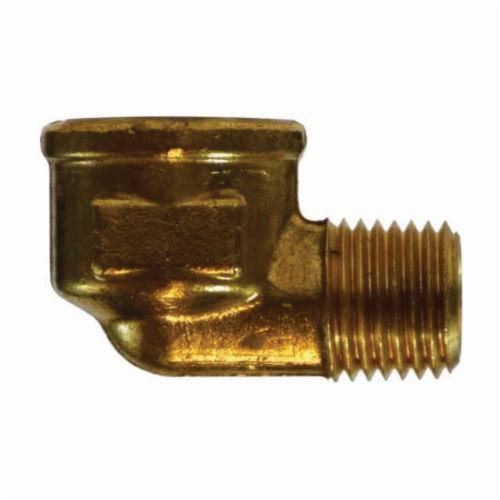

HCI Preferred Supplier 28261B Reducer Street Elbow, 1/4 x 1/8 in Nominal, MNPT x FNPT End Style, Brass
HCI Preferred Supplier 28261B Reducer Street Elbow, 1/4 x 1/8 in Nominal, MNPT x FNPT End Style, Brass
-
BrandGeneric
-
Manufacturer Part Number28261B
-
CountryUSA
-
Temperature Rating-65 to 250 deg F
-
MaterialBrass
-
Fitting/Connector Type90 deg Elbow
-
Pressure Rating1200 psi
-
Nominal Size1/4 x 1/8 in
-
Dimensions0.53 x 0.72 in
-
Domestic/ImportImport
-
End StyleMNPT x FNPT
- Fair resistance vibration
- Used with brass, bronze, copper, steel, aluminum and iron pipe
- /- 0.02 tolerance on all dimensions
- 1/4-18 x 1/8-27 thread size
- Barstock
- 0.72 in wrench flat
-
UNSPSC27121800
-
Package Description1/PK
-
Standards/ApprovalsASA Certified|ASME Specified|SAE Approved
-
Catalog
-
Full Engineering Drawing
