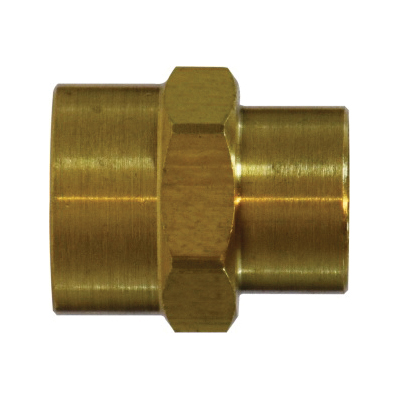

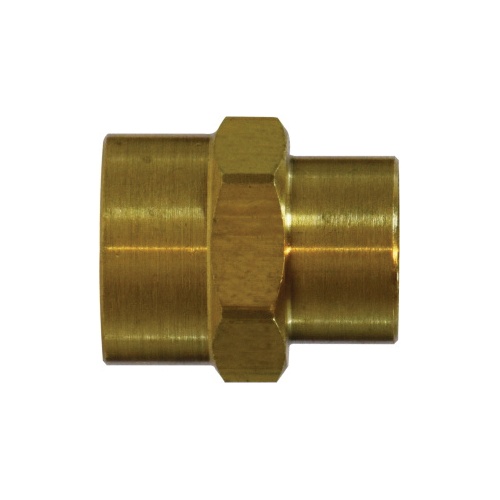

HCI Preferred Supplier 28183L Light Pattern Reducer Coupling, 3/8 x 1/4 in Nominal, FNPT End Style, Brass
HCI Preferred Supplier 28183L Light Pattern Reducer Coupling, 3/8 x 1/4 in Nominal, FNPT End Style, Brass
-
BrandGeneric
-
Manufacturer Part Number28183L
-
CountryUSA
-
Temperature Rating-65 to 250 deg F
-
MaterialBrass
-
Fitting/Connector TypeCoupling
-
Pressure Rating1200 psi
-
TypeLight Pattern
-
Nominal Size3/8 x 1/4 in
-
Hex Size0.81 in
-
Domestic/ImportImport
-
Length1 in
-
End StyleFNPT
- Fair resistance vibration
- Used with brass, bronze, copper, steel, aluminum and iron pipe
- /- 0.02 tolerance on all dimensions
- 3/8-18 x 1/4-18 thread size
- Fittings are completely interchangeable with full pattern fittings, but have been modified in some way
- Modification is usually in the length of the pipe threads
-
UNSPSC40173606
-
Package Description1/PK
-
Standards/ApprovalsASA Certified|ASME Specified|SAE 130138
-
