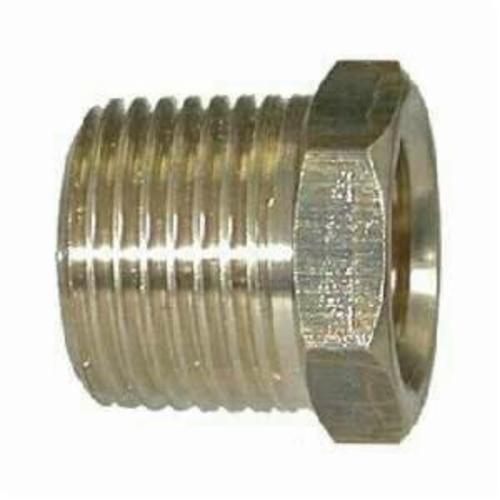

HCI Preferred Supplier 28102L Light Pattern Hex Bushing, 1/4 x 1/8 in Nominal, MNPT x FNPT End Style, Brass
HCI Preferred Supplier 28102L Light Pattern Hex Bushing, 1/4 x 1/8 in Nominal, MNPT x FNPT End Style, Brass
-
BrandGeneric
-
Manufacturer Part Number28102L
-
CountryUSA
-
Temperature Rating-65 to 250 deg F
-
MaterialBrass
-
Fitting/Connector TypeBushing
-
Pressure Rating1200 psi
-
TypeLight Pattern Hex
-
Nominal Size1/4 x 1/8 in
-
Hex Size0.56 in
-
Domestic/ImportImport
-
Length0.62 in
-
End StyleMNPT x FNPT
- Fair resistance vibration
- Used with brass, bronze, copper, steel, aluminum and iron pipe
- /- 0.02 tolerance on all dimensions
- 1/4-18 x 1/8-27 thread size
- Fittings are completely interchangeable with full pattern fittings, but have been modified in some way
- Modification is usually in the length of the pipe threads
-
UNSPSC40172306
-
Package Description1/PK
-
Standards/ApprovalsASA Certified|ASME Specified|SAE 130140
-
Catalog
-
Full Engineering Drawing
