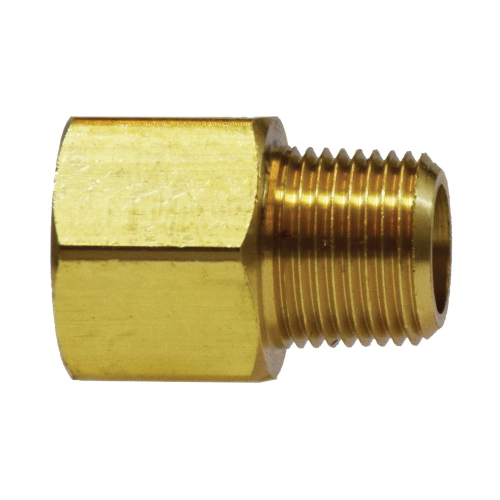

HCI Preferred Supplier 28194L Light Pattern Extension Adapter, 3/8 in Nominal, MNPT x FNPT End Style, Brass
HCI Preferred Supplier 28194 Extension Adapter, 3/8 in Nominal, MNPT x FNPT End Style, Brass
-
BrandGeneric
-
Manufacturer Part Number28194L
-
CountryUSA
-
Temperature Rating-65 to 250 deg F
-
MaterialBrass
-
Fitting/Connector TypeAdapter
-
Pressure Rating1200 psi
-
TypeLight Pattern
-
Nominal Size3/8 in
-
Hex Size0.81 in
-
Domestic/ImportImport
-
Length1.24 in
-
End StyleMNPT x FNPT
- Fair resistance vibration
- Used with brass, bronze, copper, steel, aluminum and iron pipe
- /- 0.02 tolerance on all dimensions
- 3/8-18 thread Size
- Fittings are completely interchangeable with full pattern fittings, but have been modified in some way
- Modification is usually in the length of the pipe threads
-
UNSPSC40171701
-
Package Description1/PK
-
Standards/ApprovalsASA Certified|ASME Specified|SAE 130139
-
