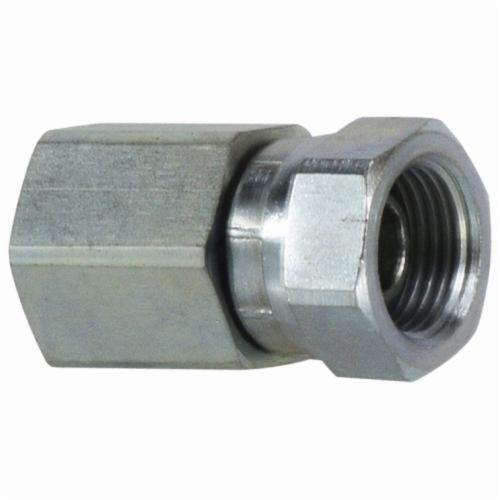

HCI Preferred Supplier 14051212 Swivel Adapter, 3/4 in Nominal, FNPT x Female NPSM, Steel
HCI Preferred Supplier 14051212 Swivel Adapter, 3/4 in Nominal, FNPT x Female NPSM, Steel
-
BrandGeneric
-
Manufacturer Part Number14051212
-
CountryUSA
-
MaterialSteel
-
Nominal Size3/4 in
-
Domestic/ImportDomestic
-
End StyleFNPT x Female NPSM
- NPSM fittings include an inverted 60 deg cone inside an internally threaded swivel union nut
- Male NPTF fittings that have a 30 deg internal chamfer that make a 60 deg inverted cone, will mate with NPSM swivel unions
- The mating male threads must include an inside chamfer on the end of the fitting that mates with the inverted cone
- Threads are for clamping force only
- The sealing occurs on a small radial section between the male fitting internal chamfer and the swivel union inverted cone
- NPT and NPTF pipe threads seal by wedging the tapered threads through deformation into each other
- Both of these threads require thread sealants to complete a seal
-
UNSPSC27112800
-
Package Description1/PK
-
Standards/ApprovalsSAE 140130
-
