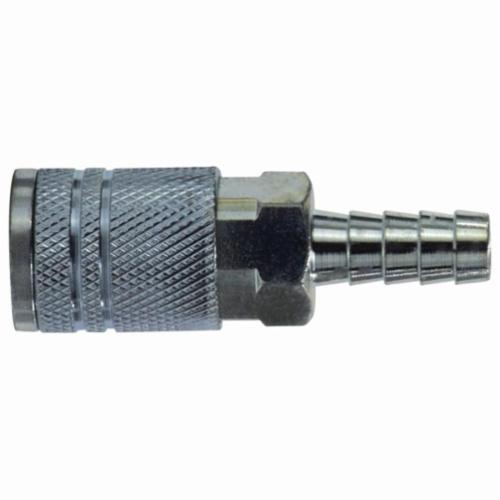

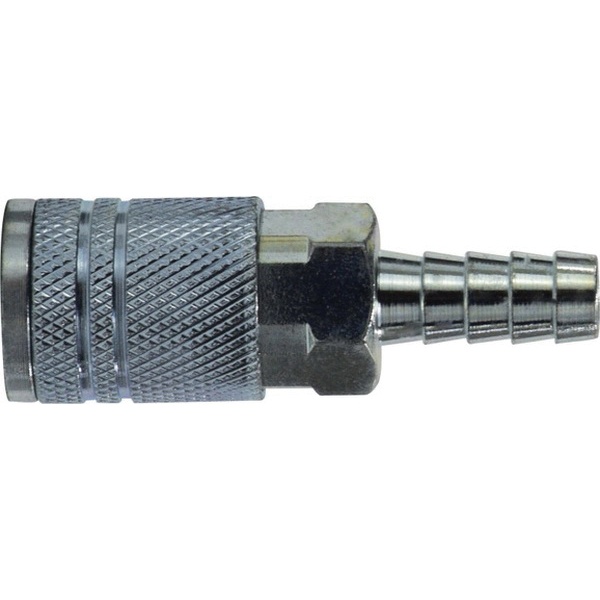

HCI Preferred Supplier 28562S Industrial Interchange Hose ID Coupler, 1/4 in Nominal, Tube, Steel
HCI Preferred Supplier 28562S Industrial Interchange Hose ID Coupler, 1/4 in Nominal, Tube, Steel
-
BrandGeneric
-
UPC029292115803
-
Manufacturer Part Number28562S
-
CountryUSA
-
Temperature Rating-4 to 176 deg F
-
MaterialSteel
-
Pressure Rating250 psi
-
TypeIndustrial Interchange
-
Nominal Size1/4 in
-
SeriesCoilflow Manual Industrial
-
Domestic/ImportDomestic
-
End StyleTube
- Compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the locking groove on the mating nipple
- Sliding spring loaded sleeve on the coupler must be manually retracted in order to connect or disconnect the nipple
- It is easy to do, but two hands are normally required
- Couplings are widely used to connect compressed air and low pressure fluid lines
- Buna-N seals
- Four stainless balls locking
-
UNSPSC27121701
-
Package Description1/PK
-
Catalog
-
Specification Sheet
