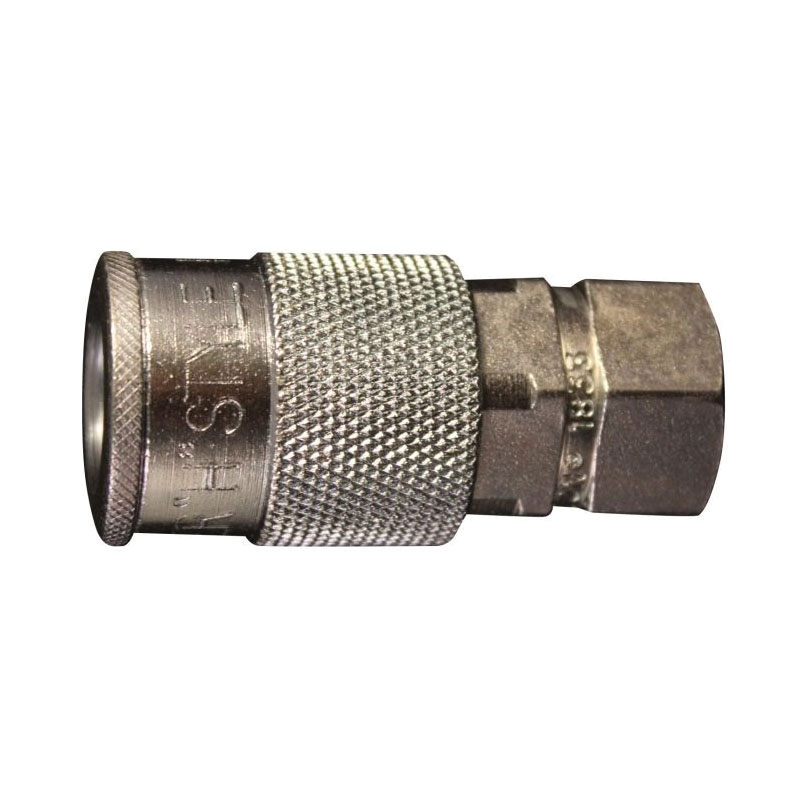

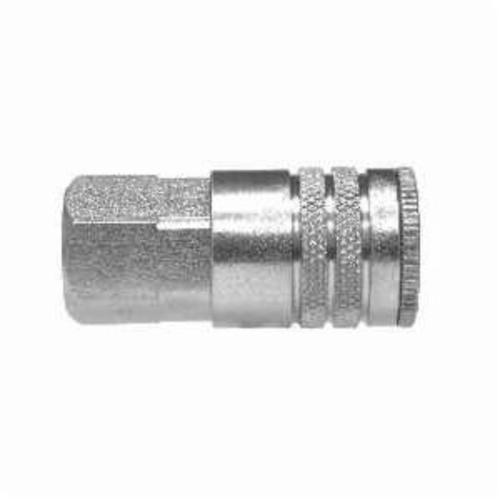

Fittings 1/4"-FPT 3/8"-BODY AIR COUPLERS FTG B-200 X 6 X 4-F
1/4 in FNPT H-style Couplers are used in larger tool applications requiring more scfm's. 300 psi maximum. Buna-N seal.
-
BrandGeneric
-
UPC030937306722
-
Manufacturer Part Number98810
-
CountryUSA
-
Temperature Rating-4 to 176 deg F
-
FinishPlated
-
MaterialSteel
-
Pressure Rating250 psi
-
TypeIndustrial Interchange
-
Nominal Size1/4 in
-
Series1800
-
Dimensions1.07 in W x 1.07 in H
-
Domestic/ImportDomestic
-
Length2.24 in
-
End StyleFNPT
- Couplings are widely used to connect compressed air and low pressure fluid lines
- Compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the locking groove on the mating nipple
- Sliding spring loaded sleeve on the coupler must be manually retracted in order to connect or disconnect the nipple
- Easy to do, but two hands are normally required
- Steel valve, NBR seat, and stainless steel springs
-
UNSPSC27112800
-
Package Description1/PK
-
Standards/ApprovalsPROP65: CANCER AND REPRODUCTIVE HARM www.P65Warnings.ca.gov
-
WarrantyLimited
-
