Gates® Power Transmission MegaCrimp™ 12G-16MP G25 Straight Hydraulic Coupling, 3/4 in x 1-11-1/2 Nominal, Hose x Male NPTF, Steel
It’s what’s inside the MegaCrimp coupling that makes it perform so well, the “C” insert. This “C” insert allows usage with different hose constructions and wall thicknesses. In addition, the C-insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one- and two-wire braid hoses and select Xpiral hoses. An additional bonus: MegaCrimp couplings are fully qualified for SAE, EN, and ISO performance.
-
BrandGates® Power Transmission
-
UPC72053322705
-
Manufacturer Part Number12G-16MP
-
CountryUSA|Canada
-
MaterialSteel
-
TypeStraight
-
Nominal Size3/4 in x 1-11-1/2
-
Hex Size1-3/8 in Stem
-
SeriesG25
-
Domestic/ImportDomestic
-

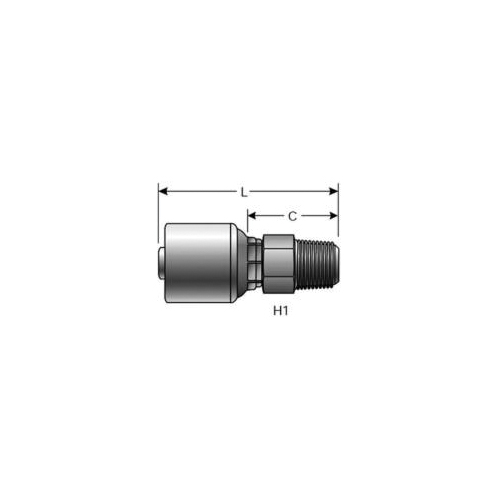

Length3.77 in
-
End StyleHose x Male NPTF
- Robust "Bite-the-wire" crimp
- Low profile
- Full stem insertion
- Full length crimp
- Tested to industry leading 600000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat™ plating for 3X better corrosion resistance than SAE standard
- 60 deg thread angle
- 30 deg cone seat
- 1.77 in cut-off length
-
Alternative Part NumberG25100-1216|710000175
-
UNSPSC40172601
-
Package Description1/PK
-
WarrantyLimited
-
Warranty Information
-
