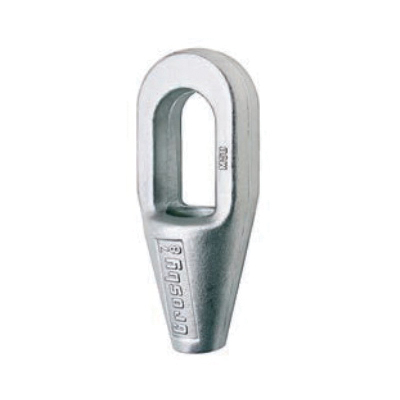

Crosby® 1039931 G-417 Closed Spelter Socket, 7/16 to 1/2 in Cable, 1.16 in ID Eye, 5-1/2 in L, Forged Steel
Crosby® 1039931 G-417 Closed Spelter Socket, 7/16 to 1/2 in Cable, 1.16 in ID Eye, 5-1/2 in L, Forged Steel
-
BrandCrosby®
-
UPC662547086581
-
Manufacturer Part Number1039931
-
CountryUSA
-
Cable Size7/16 to 1/2 in
-
MaterialForged Steel
-
SeriesG-417
-
Length5-1/2 in
-
Eye Inside Diameter1.16 in
- Spelter socket terminations have an efficiency rating of 100% based on the catalog strength of wire rope
- Ratings are based on recommended use with 6 x 7, 6 x 19, or 6 x 37 IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC wire rope
- Strand constructed with minimal number of wires requires special consideration that socket basket length be five times the strand diameter or fifty times the wire diameter whichever is the greater
-
UNSPSC24101600
-
Standards/ApprovalsFederal Spec RR-S-550E Type A
-
WarrantyLimited
-
