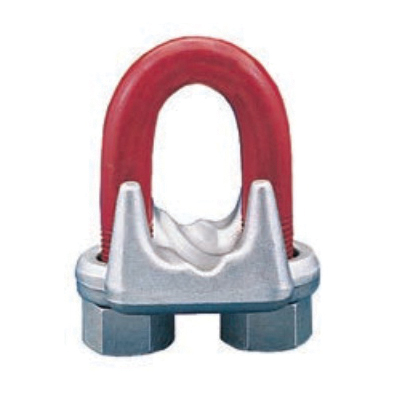

Crosby® 1010337 G-450-1 5/8 Red-U-Bolt Wire Rope Clip, 1-5/8 in, Forged Steel, 8 Clips, 58 in Rope Turn Back
Crosby® 1010337 G-450 Red-U-Bolt Wire Rope Clip, 1-5/8 in, Forged Steel, 8 Clips, 58 in Rope Turn Back
-
BrandCrosby®
-
UPC662547103370
-
Manufacturer Part Number1010337
-
CountryUSA
-
Cable Size1-5/8 in
-
FinishGalvanized
-
MaterialForged Steel
-
Minimum Number of Clips8
-
TypeRed-U-Bolt
-
Minimum Torque430 ft-lb
-
Rope Turn Back58 in
-
SeriesG-450
- Each base has a product identification code (PIC) for material traceability the name Crosby® or CG and a size forged into it
- Based on the catalog breaking strength of wire rope, Crosby® wire rope clips have an efficiency rating of 90%
- Entire clip is galvanized to resist corrosive and rusting action
- All clips are individually bagged or tagged with proper application instructions and warning information
- Importantly, these wire rope clips meet other critical performance requirements including fatigue life, impact properties and material traceability
- Look for the Red-U-Bolt® your assurance of genuine Crosby® clips
-
UNSPSC31162813
-
Standards/ApprovalsASME B30.26|Federal Spec FF-C-450 Type III, Class 1
-
