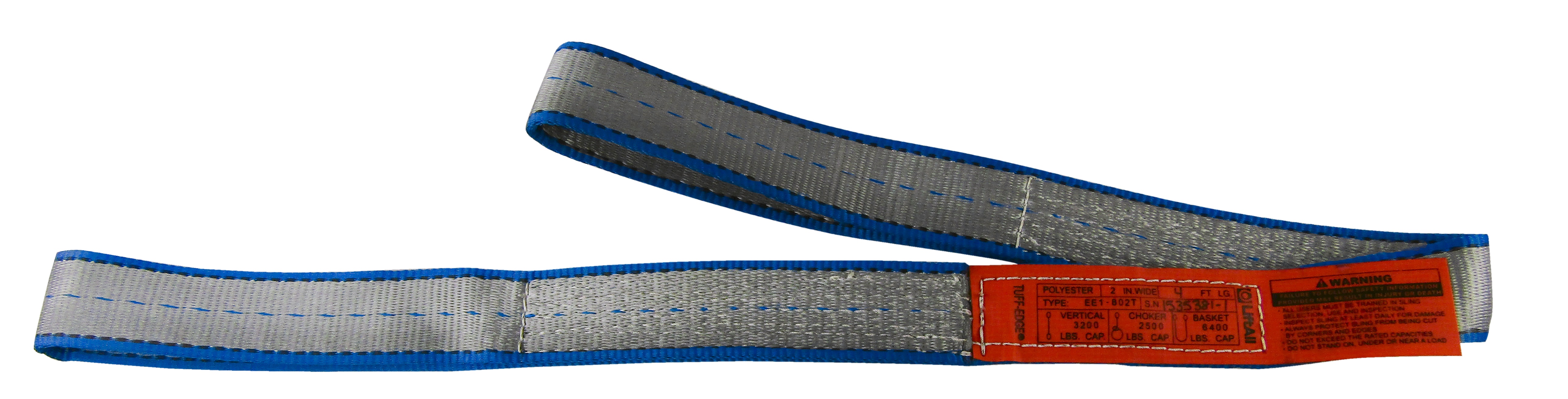

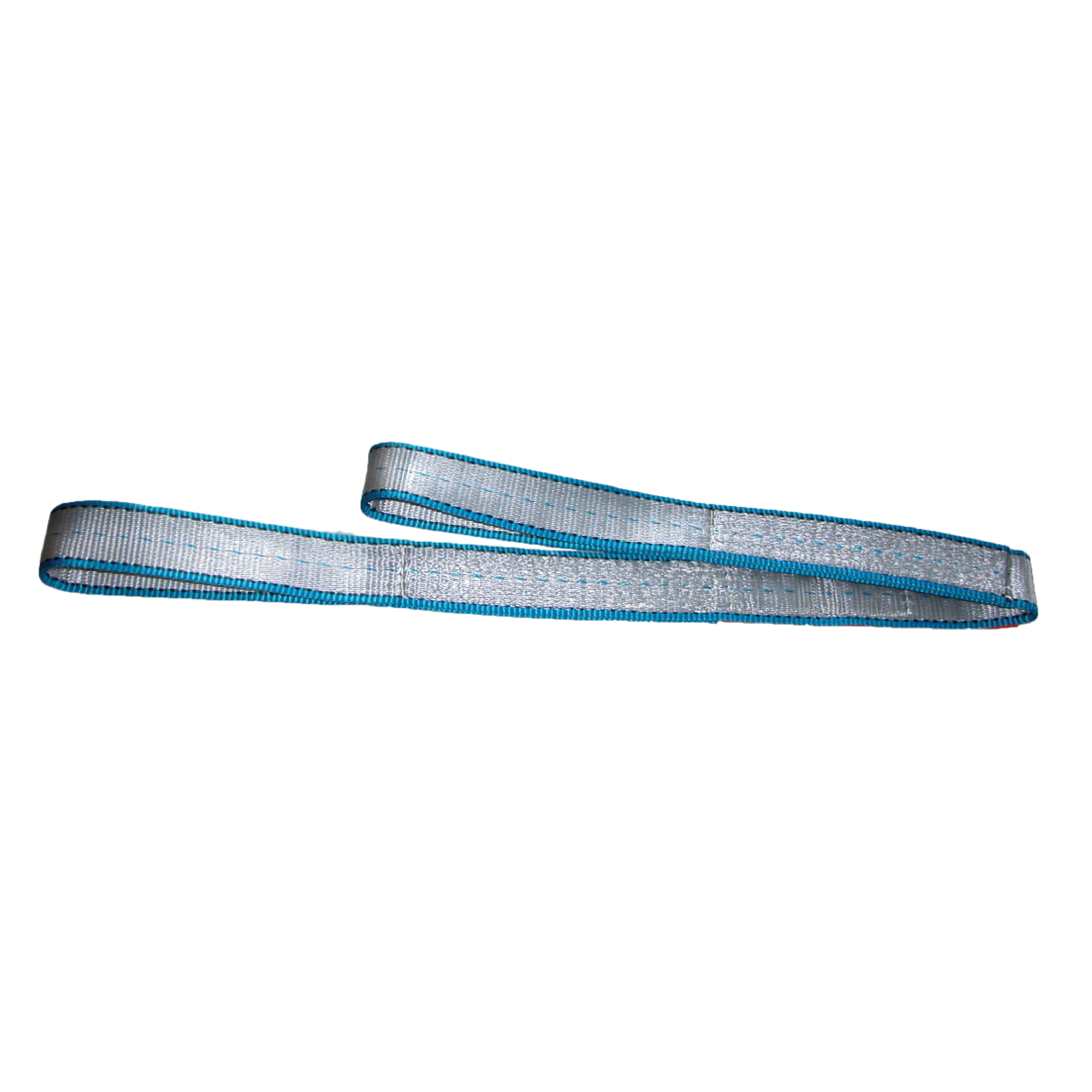

Lift-All® Tuff-Edge® II Webmaster® 1600 EE2802TFX4 Eye and Eye Web Sling, 4 ft L x 2 in W, 6400 lb, Polyester
Lift-All® Tuff-Edge® III introduces a patented design with edge-cut resistance and increased abrasion. Easily inspect webbing with Edge Damage Limit (EDL) marker.
-
BrandLift-All®
-
UPC697886100162
-
Manufacturer Part NumberEE2802TFX4
-
CountryUSA
-
Temperature Range-60 to 200 deg F
-
MaterialPolyester
-
Choker Hitch Capacity5000 lb
-
CoatingLatex
-
ColorSilver
-
TypeEye and Eye
-
Vertical Hitch Capacity6400 lb
-
Web GradeHeavy Duty
-
Width2 in
-
Number of Plys2
-
Basket Hitch Capacity12800 lb
-
Length4 ft
-
Eye Length10 in
- Edge damage limit (EDL) out-of-service marker
- The EDL marker tool both simplifies the inspection process and also extends the life of the web slings, saving you money
- Web slings are light weight, flexible and have wide bearing surfaces to help protect the load
- Their stretch characteristics help to avoid shock loading problems
- Lighter weight and easier to use than chain or wire rope
- Daily use under good to rugged lifting conditions
- Red core yarn warning system aids in the inspection process
- Special polymer coated edge yarns improve edge cutting and abrasion to extend sling life
- Silver colored web treatment fights abrasion for additional sling life
- TUFF-TAG™ provides required OSHA information for the life of the sling, not just the life of the tag
- Easy Identification - Silver body, blue edges, blue center stripe
- 2x stronger after abrasion
- 2x better edge cut resistance
- 3 ft L minimum standard
- Always protect synthetic slings from being cut by corners and edges
- Tubular edge design with damage-resistant core helps protect the body fibers from cutting, keeping the integrity of the sling intact without compromising its strength
- See Sling Protection section in the Lift-All catalog
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 4ZV29 |
| MSC | 89673065 |
| Fastenal | 45652 |
-
UNSPSC24101611
-
Package DescriptionEACH
-
Standards/ApprovalsASME B30.9|OSHA 29 CFR 1910.184|WSTDA WS-1
-
WarrantyLimited Liability Warranty
-
Technical Bulletin
-
Catalog
-
Instruction/Installation Manual
