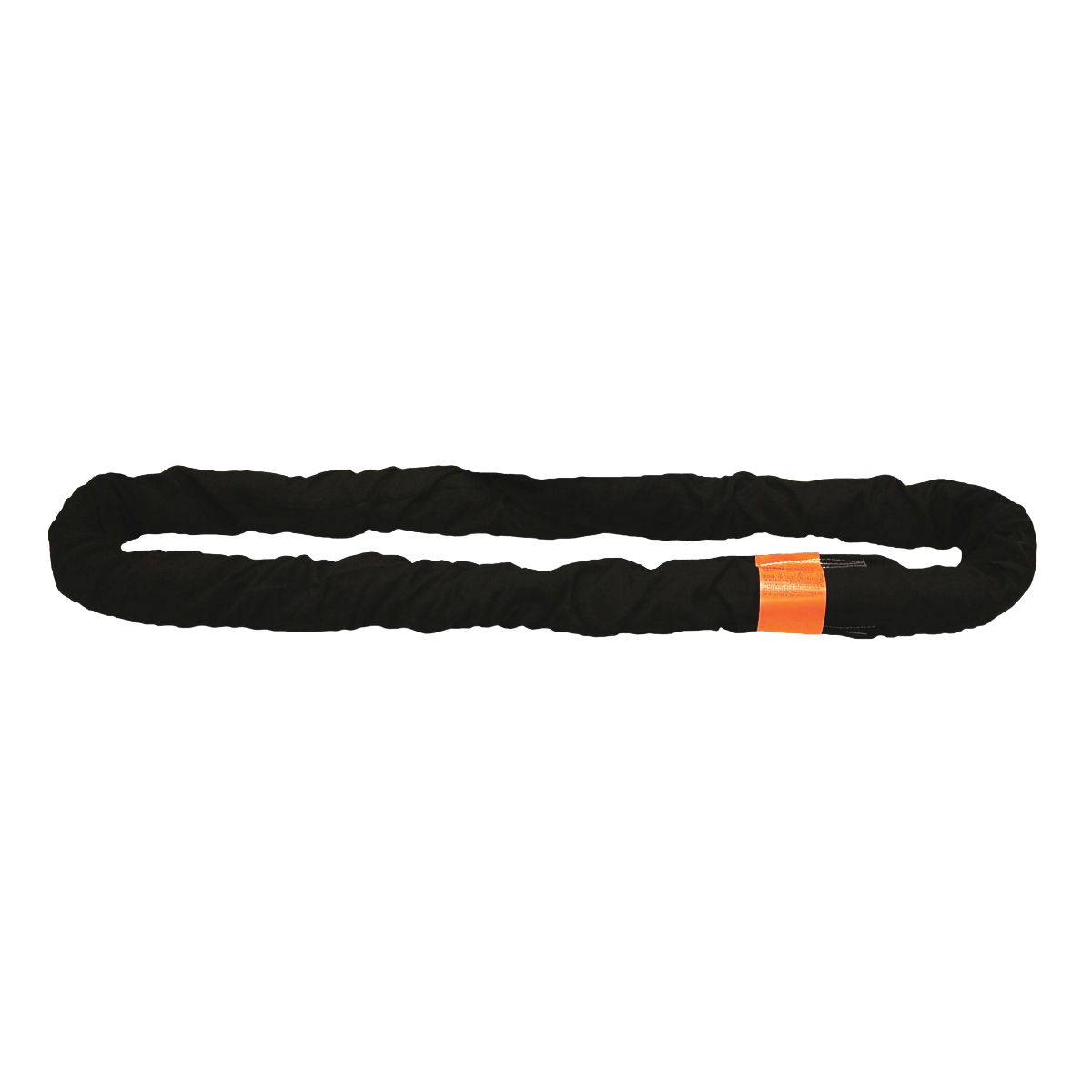

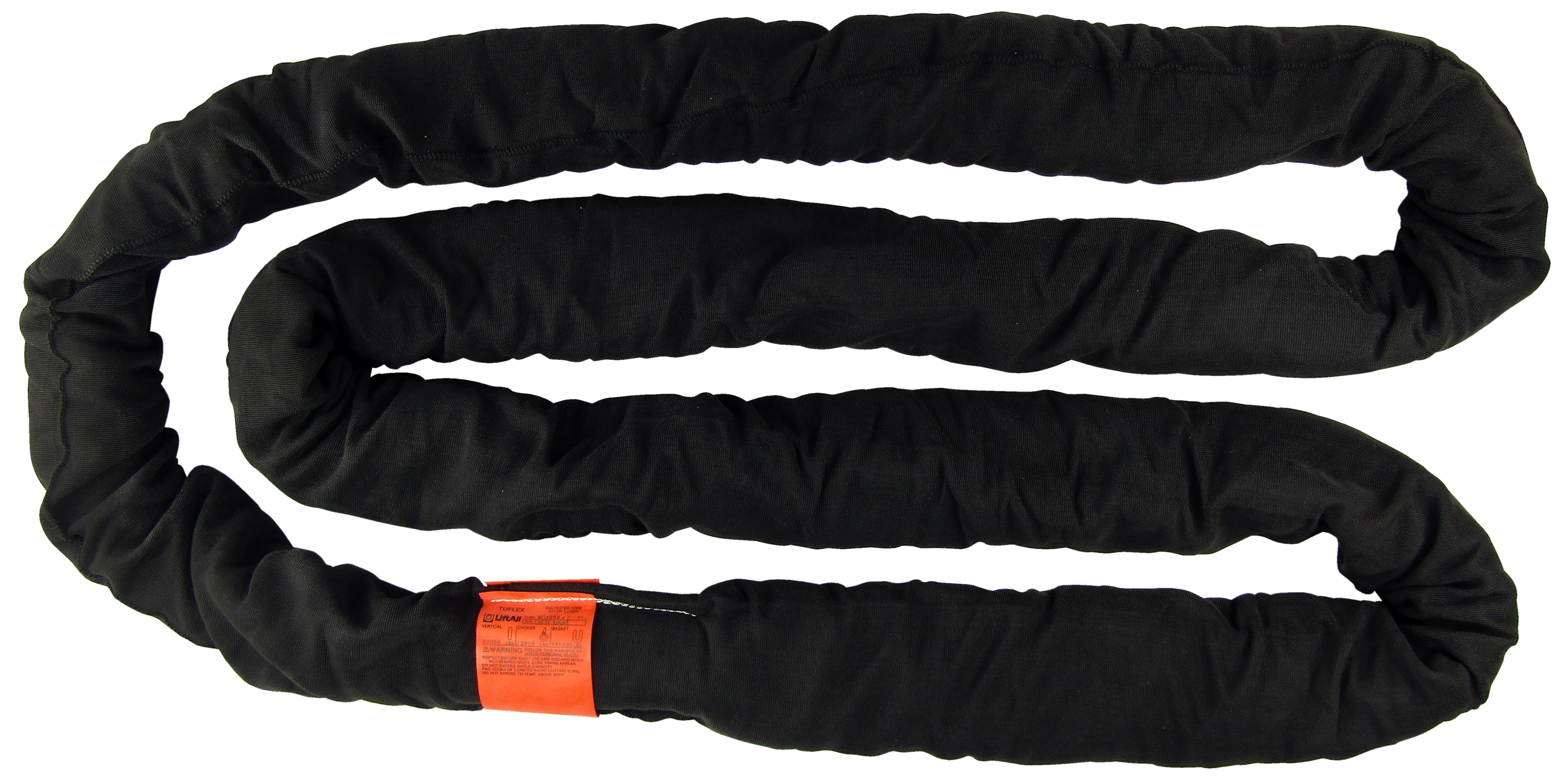

Lift-All® Tuflex™ EN1000X12 Endless Round Sling, 12 ft L, 90000 lb, Nylon/Polyester, Black
Tuflex endless roundslings are the most versitile roundsling. Tuflex roundslings are color-coded to easily identified capacities . The cover is seamless with no sewn edges, preventing rupture and allowing wear points to be shifted to extend sling life.
-
BrandLift-All®
-
UPC697886638788
-
Manufacturer Part NumberEN1000X12
-
CountryUSA
-
Temperature Range-40 to 200 deg F
-
MaterialNylon/Polyester
-
Choker Hitch Capacity72000 lb
-
ResistsAbrasion, Cutting, Snags, Punctures, Missing/Illegible Tag, Heat/Chemical Burns and Knotting
-
ColorBlack
-
TypeEndless
-
Vertical Hitch Capacity90000 lb
-
Width Under Load5-1/4 in
-
Basket Hitch Capacity180000 lb
-
Length12 ft
- Tuflex™ round sling is an endless synthetic sling made from a skein (continuous loop or hank) of polyester yarn covered by a double wall tubular jacket
- These durable and versatile endless slings will become your first choice for synthetic slings once you've tried them
- The round sling body can also be compared to sling webbing with the tubular jacket face yarns woven without binder yarns, this allows the core yarns to move independently within the jacket
- Color coded capacities for quick identification
- TUFF-TAG™ provides serial numbered identification for traceability
- Low stretch (about 3 Percent at rated capacity)
- Maintains 100 Percent of original strength until jacket damage exposes core yarns
- When core yarns are visible, sling must be removed from service
- Chokes tighter, releases easier than other slings
- No strength loss from abrasion to cover
- Good for low headroom lifts
- Always protect synthetic slings from being cut by corners and edges
- The most versatile endless sling on the market
- Wear points can be shifted to extend sling life
- See Sling Protection section in the Lift-All catalog
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 38Z276 |
-
UNSPSC24101611
-
Package DescriptionEACH
-
Standards/ApprovalsASME B30.9|OSHA 29 CFR 1910.184|WSTDA RS-1|WSTDA RS-2
-
WarrantyLimited Liability Warranty
-
Technical Bulletin
-
Catalog
-
Instruction/Installation Manual
