CROSBY 907460 Sheave, 3/8 in, 6 in OD

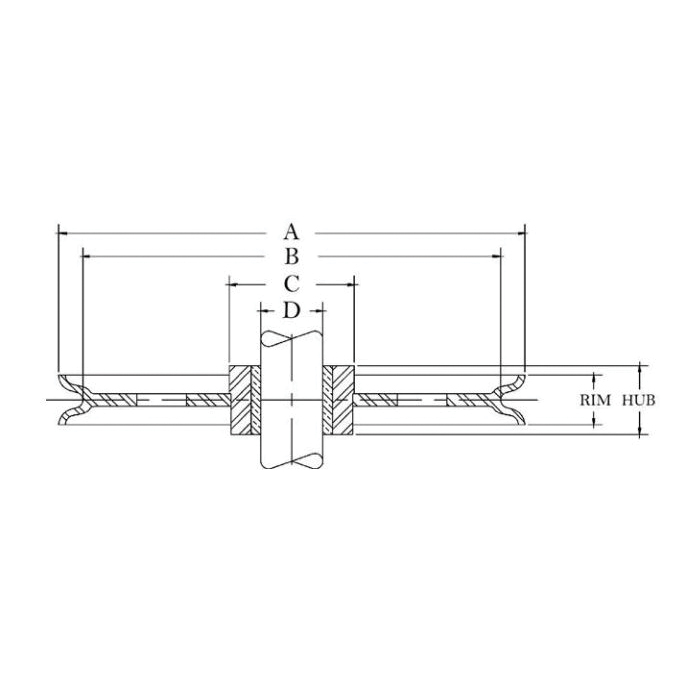

Dimensions: 6" Outside Diameter (OD) x 3/4" Hub Width x 3/4" Bore Size (6 × 3/4 × 3/4). Wire Rope Size Compatibility: 3/8" wireline / wire rope. Bushing Material: Equipped with S.A.E. 660 Bronze Bushings featuring a "Figure 8" oil groove to optimize shaft lubrication. Weight: Approximately 2.5 lbs.
-
BrandMcKissick®
-
Manufacturer Part Number907460
-
CountryUSA
-
Maximum Cable Size3/8 in
-
Sheave MaterialPowdered Metal
-
Sheave Outside Diameter6 in
-
BearingsSelf-Lubricating Bronze Bushing
- McKissick® Bronze bushed sheaves are equipped with SAE 660 bronze bushings for cold finished shafts
-
UNSPSC31171804
-
