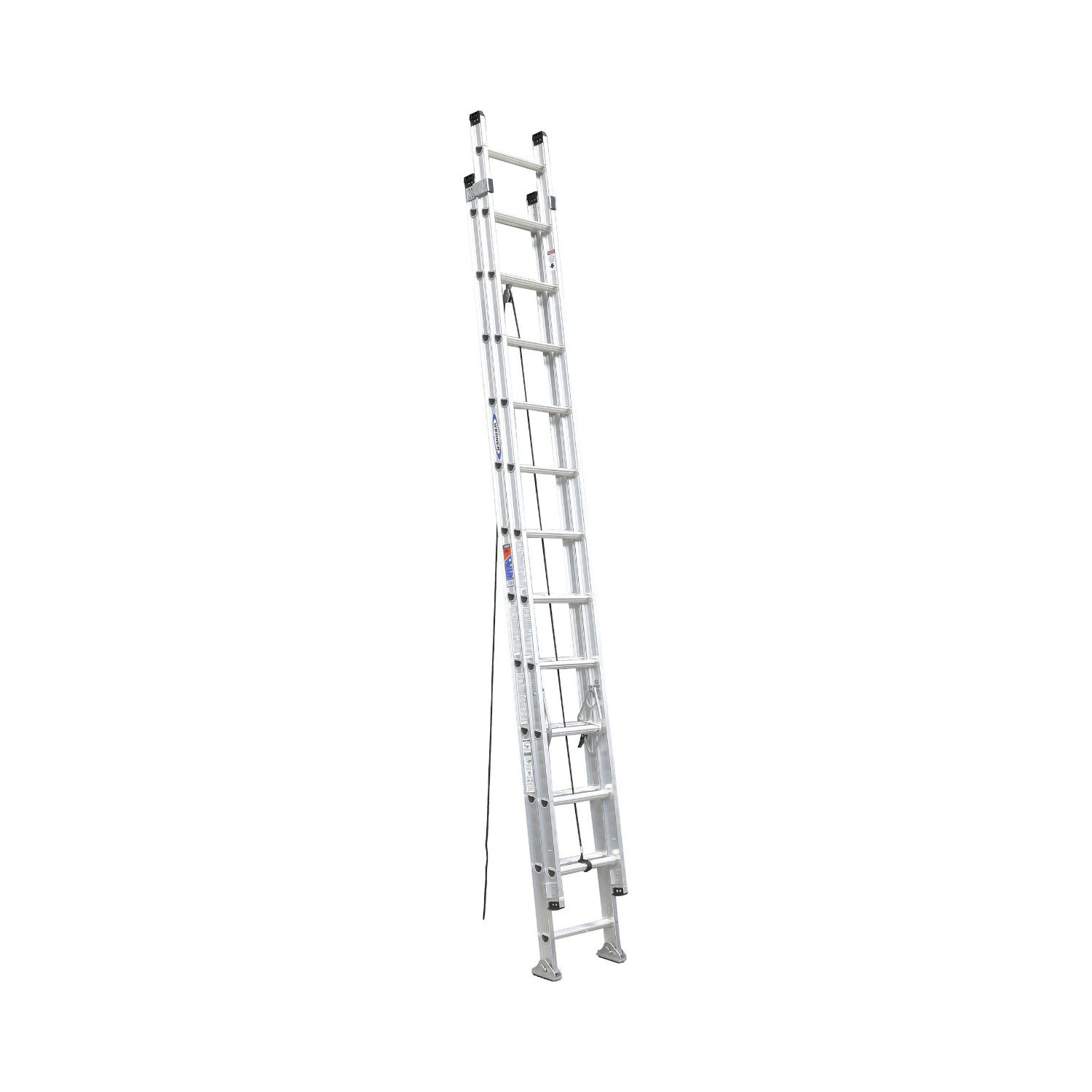

WERNER® D1524-2 D1500-2 D-Rung Multi-Section Extension Ladder, 24 ft OAL, 300 lb Load, 12 in Adjustable Increments, Aluminum, Type IA
The D1524-2 aluminum extension ladder has a duty rating of 300 lbs and has extra heavy duty I-Beam side rails. The base and fly sections separate easily and can be used separately. Guide brackets help to ease operation when raising and lowering the fly section. The exclusive ALFLO® rung joint means TWIST-PROOF® performance every time. TRACTION-TRED® D-rungs are slip resistant, and the rugged shoes rest flat or are held in spur position with the SHU-LOK® feature. Rugged spring loaded locks operate smoothly. Mar resistant end caps protect the surface ladder is resting against.
-
BrandWERNER®
-
UPC051751012330
-
Manufacturer Part NumberD1524-2
-
CountryUSA
-
Load Capacity300 lb
-
MaterialAluminum
-
Rail TypeI-Beam
-
Maximum Working Length21 ft
-
TypeD-Rung Multi-Section
-
ANSI CodeType IA
-
Adjustable Increments12 in
-
Section Length12 ft
-
SeriesD1500-2
-
Shoe TypeDual Action Shu-Lok®
-
Outside Shoe Base Width18-1/8 in
-
Overall Length24 ft
- Exclusive ALFLO® rung joint means TWIST-PROOF® performance
- 1-3/4 in slip resistant TRACTION-TRED® D-rungs
- Heavy duty extruded rung locks are spring loaded to operate smoothly
- Base and fly separate easily for use as an extension or two single sections
- Smooth operating pulley design, enclosed shape protects pulley
- Guide brackets mounted at the top and bottom of the rail for durability and smooth operation of fly section
- Extra heavy duty I-Beam rails
- Rugged spring loaded locks operate smoothly
- Rugged shoe rests flat or is held in spur position with SHU-LOK® feature
- Stacked rail design provides increased rung width on fly section
- Mar resistant end caps
- 23 ft H reach
- 21 ft L maximum open extended
- Slip resistant pad foot material
- 2 section x 12 rungs
- 3 in rails
- 1-1/8 in flange
- 1-3/4 in rung
- 18-1/8 in W fly
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2113584 |
-
UNSPSC30191501
-
Standards/ApprovalsANSI A14.2 (2007)|OSHA Compliant
