WERNER 20' 225# TY-2 ALUMINUM EXT/LADDERS WER D-12202

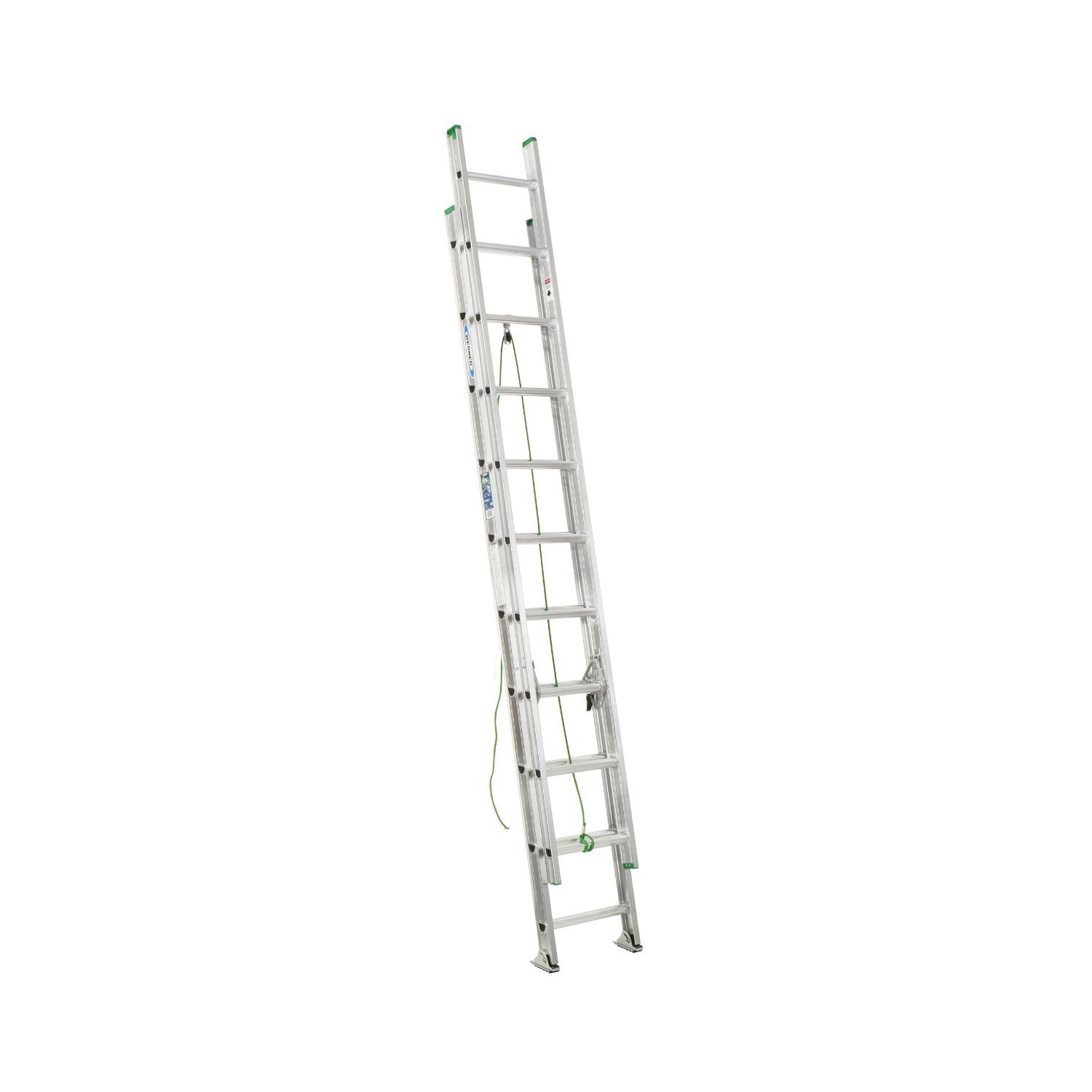

The D1220-2 aluminum 20 ft extension ladder has a duty rating of 225 pounds and interlocking side rails. The TRACTION-TRED® D-rungs are slip resistant. Spring loaded locks operate smoothly for easy operation. Shoes rest flat or are held in spur position with SHU-LOK® feature. Mar resistant end caps help protect the surface ladder is leaning against. Exclusive ALFLO® rung joint means TWIST-PROOF® performance every time.
-
BrandWERNER®
-
UPC051751012088
-
Manufacturer Part NumberD1220-2
-
CountryUSA
-
Load Capacity225 lb
-
MaterialAluminum
-
Rail TypeInterlocking/I-Beam
-
Maximum Working Length17 ft
-
TypeD-Rung Multi-Section
-
ANSI CodeType II
-
Adjustable Increments12 in
-
Section Length10 ft
-
SeriesD1200-2
-
Shoe TypeSwivel
-
Outside Shoe Base Width17-3/8 in
-
Overall Length20 ft
- Exclusive ALFLO® rung joint means TWIST-PROOF® performance
- 1-3/4 in slip resistant TRACTION-TRED® D-rungs
- Durable extruded rung locks are spring loaded to operate smoothly
- Mar resistant end caps
- Smooth operating pulley with polypropylene rope
- Heavy duty modified I-Beam side rails
- Durable shoe rests flat on slip resistant pad or is held in spur position with SHU-LOK® feature
- 19 ft H reach
- 17 ft L maximum open extended
- Slip resistant pad foot material
- 2 sections
- 10 ft L approximate closed
- 3 in rails
- 1 in flange
- 1-3/4 in rung
- 15-1/4 in W fly
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2113573 |
-
UNSPSC30191501
-
Standards/ApprovalsANSI A14.2 (2007)|OSHA Compliant
