Louisville 16' 300# F/GLASS EXTENSION LADDERS LOU FE-3216

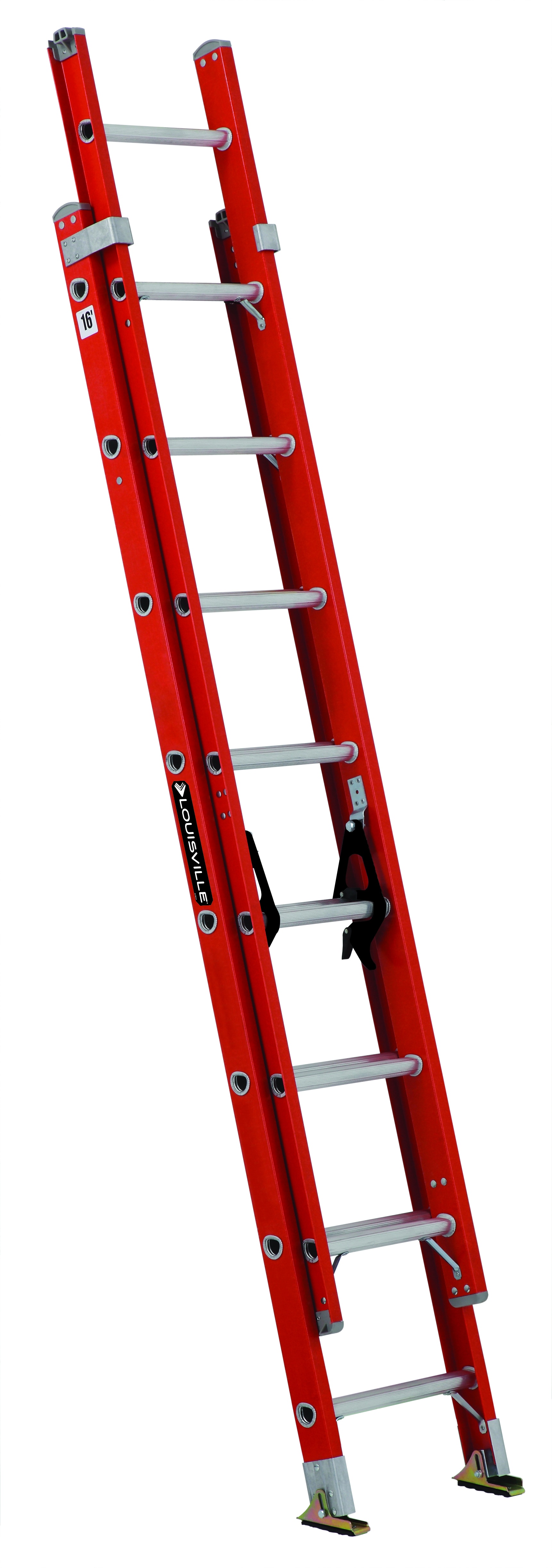

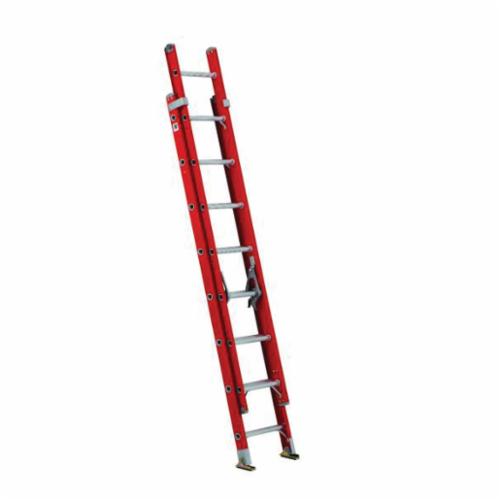

This Louisville 16 foot non-conductive fiberglass extension ladder has a 300 lb load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder also includes the patented QuickLatch system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. The ladder features outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps and steel swivel safety shoes with metal shield to be used with the tread down or in spike position. The Louisville FE3216 fiberglass extension ladder meets or exceeds the safety standards set by ANSI, CSA and OSHA.
-
BrandLouisville®
-
UPC728865200044
-
Manufacturer Part NumberFE3216
-
CountryUSA
-
Load Capacity300 lb
-
MaterialFiberglass
-
Rail TypeNon-Conductive
-
Maximum Working Length13 ft
-
TypeD-Rung Type IA
-
ANSI CodeA14.5
-
Adjustable Increments12 in
-
Section Length96 in
-
SeriesFE3200
-
Shoe TypeSwivel
-
Outside Shoe Base Width17-1/16 in Base x 16-1/16 in Fly
-
Overall Length16 ft

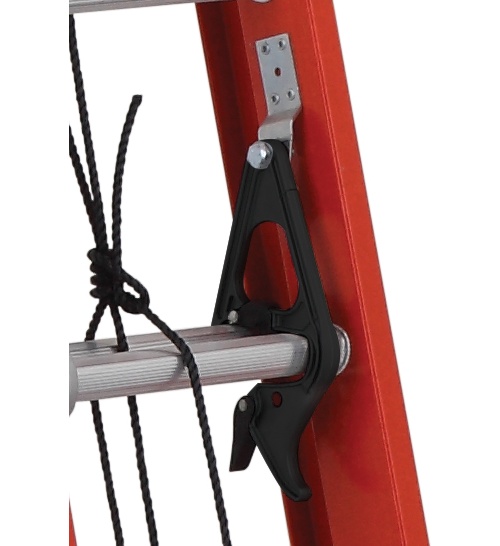

- Patented Quicklatch Runglock System
- Steel Swivel Safety Shoe With Metal Shield
- Direct Rung-Rail Connection

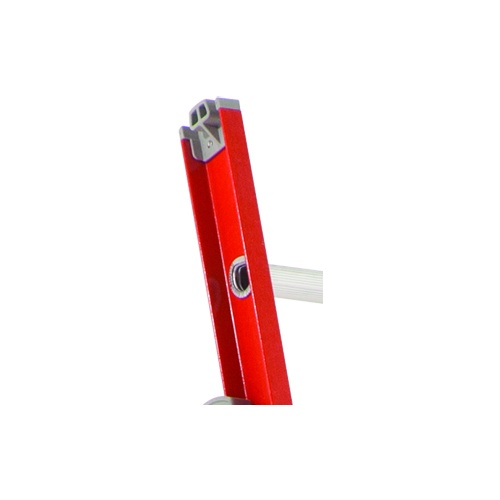

- Mar-Resistant Rail End Caps
- Outside Slide Guides
- D-Shaped Rungs
- Rail depth is 3-1/4 in
| Competitor Name | Cross-Reference Number |
|---|---|
| MSC | 00236380 |
| Grainger | 1CMW3 |
| Fastenal | 0500772 |
-
UNSPSC30191501
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|ANSI A14.5|OSHA Standard
