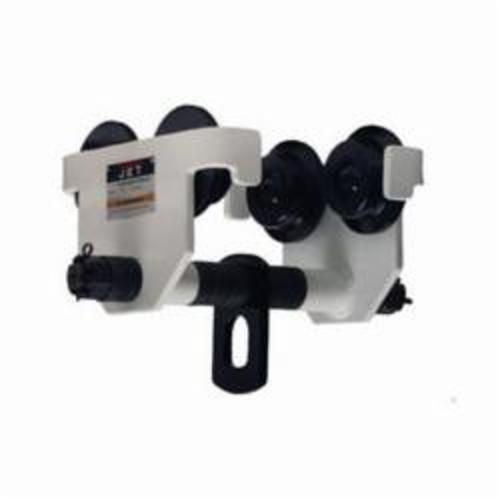

1-TON PLAIN TROLLEYS JET252010
JET PT series heavy duty manual trolleys are available in capacities from 1/2 ton to 10 tons. Built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smear movement on a variety of beams. The built-in bumper guards increase user safety and extend the life of the trolley.
-
BrandJET®
-
UPC662755223280
-
Manufacturer Part NumberJT9-252010
-
CountryUSA
-
Load Capacity2000 lb
-
Fits Beam Flange Width3 to 8 in
-
Fits Beam Height4 in
-
TypeHeavy Duty
-
Minimum Radius Curve39 in
-
Wheel MaterialSteel
-
SeriesPT Series
- Durability
- Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection
- Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smear movement
- Built-in bumper guards on the side plates increase safety and extend trolley life
- Built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smear movement on a variety of beams
- Easily adjustable to wide flange H-beams, standard I-beams or curved track with the included spacer washers
- Load tested to 125 percent of capacity with certificate
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 24V155 |
-
Alternative Part Number252010
-
UNSPSC24101706
-
Standards/ApprovalsOSHA Compliant|ANSI/ASME B30.11|B30.17
-
Owners/User Manual
