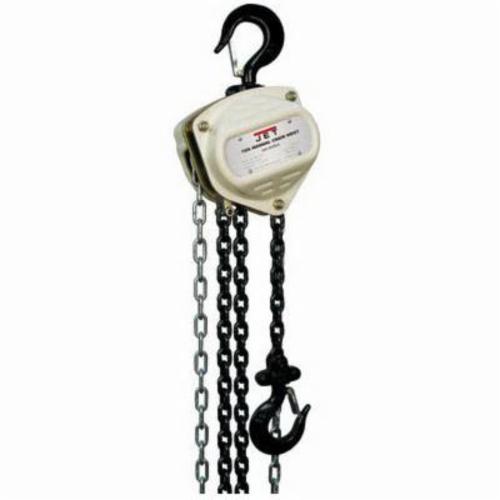

1-TON 10'-LIFT HAND CHAIN HOISTS JET101704
JET® S90 Series Hand Chain Hoists were designed with all steel construction and ensures reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET® S90 is available in capacities from ½ ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET® S90 is the ideal contractor grade hoist.
-
BrandJET®
-
UPC731325218831
-
Manufacturer Part NumberJT9-101910
-
CountryUSA
-
Load Capacity1 ton
-
Pull to Lift Rated Load60 lb
-
Minimum Between Hooks12 in
-
TypeLight Duty
-
SeriesS90
-
Hook Opening1.8 in
-
Dimensions5.3 in W
-
Brake TypeDual Pawl Weston
-
Lifting Height10 ft
- Weston style dual pawl brake system- double pawl design increases safety
- Alloy steel hooks- industrial rated hooks rotate 360 deg for easy rigging
- Hooks slowly stretch to indicate an no-slip situation increasing jobsite safety
- Needle bearing design- promotes long hoist life with low wear reducing downtime
- Heat treated load plates- heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
- Grade 80 load chain- grade 80 black oxide coated load chain for durability
- All steel construction- impact resistant covers that provide durability and protection
- Compact design- smaller body and light weight design for low headroom applications and use in confined areas
- 6 x 18 mm load chain
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 0578967 |
-
Alternative Part Number101910
-
UNSPSC24101602
-
Standards/ApprovalsOSHA Compliant|ANSI/ASME B30.16|HST-2
-
Owners/User Manual
