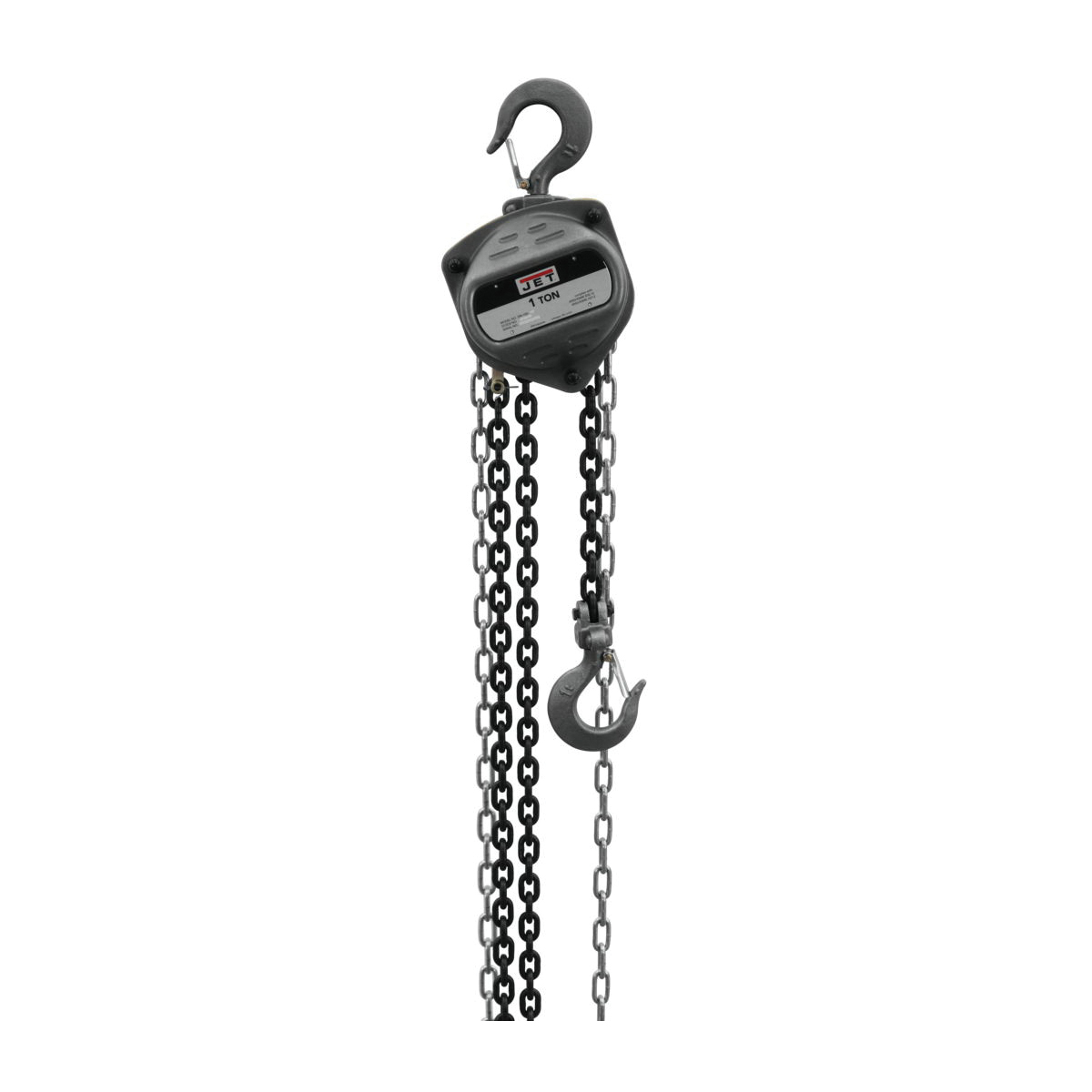

JET® JT9-101912 S90 Hand Chain Hoist, 1 ton Load, 20 ft H Lifting, 12 in Min Between Hooks, 60 lb Rated
Jet® S90 series hand chain hoists were designed with reliability and durability to perform in light duty industrial applications. Easily maintained and serviced, the Jet® S90 is available in capacities from 1/2 ton to 10 ton and standard lifts of 10, 15, 20 and 30 feet (custom lifts available). The Jet® S90 is the ideal contractor grade hoist.
-
BrandJET®
-
UPC731325218855
-
Manufacturer Part NumberJT9-101912
-
CountryUSA
-
Load Capacity1 ton
-
Pull to Lift Rated Load60 lb
-
Minimum Between Hooks12 in
-
SeriesS90
-
Brake TypeDual Pawl Weston
-
Lifting Height20 ft
- Weston style dual pawl brake system- double pawl design increases safety
- Alloy steel hooks industrial rated hooks rotate 360 deg for easy rigging
- Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Needle bearing design promotes long hoist life with low wear reducing downtime
- Heat treated load plates- heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
- Grade 80 load chain grade 80 black oxide coated load chain for durability
- All steel construction impact resistant covers that provide durability and protection
- Compact design smaller body and lightweight design for low headroom applications and use in confined areas
- Certification- load tested to 125% of capacity with certificate
- 53 ft chain overhau
-
Alternative Part Number101912
-
UNSPSC24101602
-
Standards/ApprovalsANSI/ASME B30.16
-
Specification Sheet
