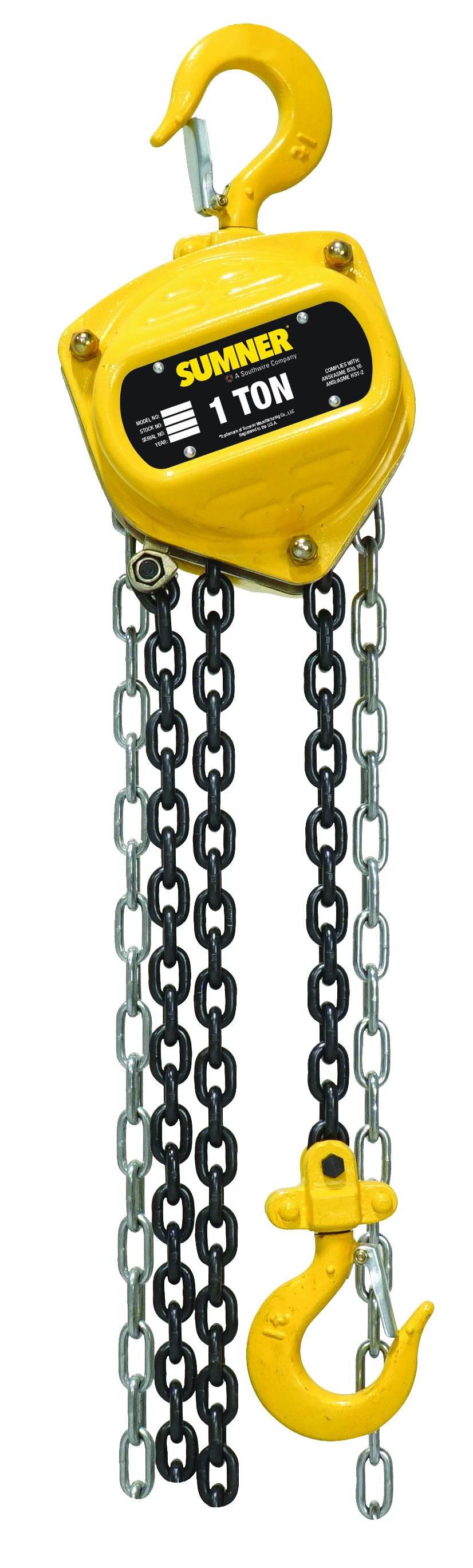

Sumner 1-TON 20'-LIFT MANUAL CHAIN HOISTS SUM 787564
Sumner manufacturing offers a full line of mechanical hoisting products. With a focus on field usability and serviceability, The sumner line will include 46 different lever Chain Block Hoist, ranging in capacity up to 20 ton. This new line of lever hoists and chain block hoists also offers a premium option that includes a single fused brake design and zinc phosphate load chain for superior corrosion resistance. Each hoist also comes with an easily removable top hook and hard steel load sheave rollers. All of Sumner Hoists meet ANSI/ASME, OSHA and CE hoisting standards with our premium models being serviceable for your safety.
-
BrandSouthwire®
-
UPC661165875645
-
Manufacturer Part NumberCB100C20
-
CountryUSA|Canada
-
Load Capacity1 ton
-
Brake TypeFused
- Dual Pawl brake system
- 360 deg Alloy Steel hooks
- 1.5X safety tested
-
Alternative Part Number787564|14878385
-
UNSPSC22101505
-
IDEA Index ID14878385
-
Package DescriptionEACH
-
Standards/ApprovalsANSI/ASME Specified|CE Certified|OSHA Standard
-
WarrantyLifetime
-
Warranty Information
-
Specification Sheet
