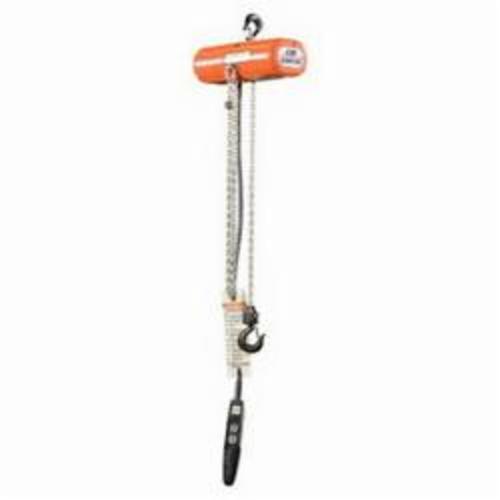

CM® ShopStar® 2000 Single Reeving Electric Chain Hoist, 300 lb Load, 6-1/2 ft Chain/Rope, 10 ft H Lifting, 1/6 hp Power Rating, 115 V AC
The CM® ShopStar® electric chain hoist is built for rugged industrial and commercial use. This durable hoist features high H4 duty cycles and a compact design ideal for use at workstations and production lines. Standard overload device protects the hoist, operator and surrounding structure from damaging overloads.
-
BrandCM®
-
UPC043927620005
-
Manufacturer Part Number2000
-
CountryUSA
-
Load Capacity300 lb
-
Power Rating1/6 hp
-
Chain/Rope Size6-1/2 ft
-
Minimum Between Hooks11-1/16 in
-
ColorOrange
-
TypeSingle Reeving
-
Voltage Rating115 V AC
-
Control Type1-Speed/NEMA 4 Control Station
-
Hook Opening7/8 in
-
Dimensions9-27/32 in L x 5-15/16 in W x 4-1/16 in D
-
Brake TypeDual DC/Regenerative
-
Lifting Height10 ft
- H4 duty cycle (300 motor starts/hr)
- Easy installation and maintenance
- Standard protector overload device
- 10-pocket oblique lay lift wheel provides longer chain wear
- Epoxy powder coat finish
- 6-1/2 ft power cord with molded 3-prong plug on 115 V units
- NEMA 4 industrial rated control station
- Gear train is lifetime lubricated with non-oxidizing grease
- Alloy load chain
- Thermally protected hoist duty motor
- Dual braking system DC plus regenerative
- Rugged cast aluminum alloy hoist frame
- 5:1 design factor
- Small, compact design for commercial and industrial applications
- Rigid hook suspension prevents tangling of power cord
- Hardened forged steel latch style lower hook rotates 360 deg
- Totally enclosed non-ventilated hoist frame protects motor from environmental contamination
- True vertical lift
- Precision bearings used throughout hoist
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 0578626 |
-
UNSPSC24101602
-
Package Description1/PK
-
Standards/ApprovalscUL Listed|ASME B30.16
-
Owners/User Manual
