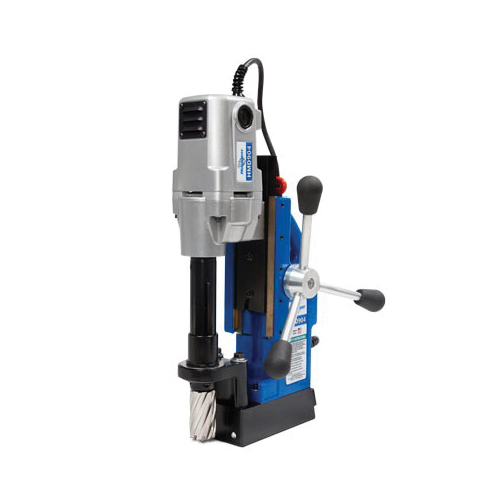

Hougen 120-VOLT MAGNETIC DRILL PRESSES HOU HMD-904
Hougen® HMD904S Compact Lightweight Patented Versatile With Swivel Base, 450 rpm Spindle, 115/230 VAC
-
BrandHougen®
-
UPC662850000113
-
Manufacturer Part NumberHMD904S
-
CountryUSA
-
TypeCompact Lightweight Patented Versatile
-
Voltage Rating115/230 V AC
-
Amperage Rating9/4.5 A
-
Dimensions11-5/8 in L x 7-3/4 in W
-
Spindle Speed450 rpm
-
Overall Height19-5/8 in
- Large 1-1/2 x 2 in capacity
- Pilot light - For low light or no light conditions
- Two stage magnet - 30% power increase when motor is turned on
- Slot drive arbor for more accuracy and quicker change out of accessories
- Housing - Stronger stiffer, more ergonomic
- Positive slug ejection
- Feed handle switches easily from side to side
- Lift detector safety system
- Rear mounted controls
- Precisely line up your pilot with the holes center location
- One stroke lock and unlock handle
- Great for horizontal, overhead, tight areas and getting out over another piece of steel
- Powerful
- Use with 12000 Series, Rotabroach™, Copperhead™ and Fusion™ 3/4 in shank cutters
- 7/16 to 1-1/2 in hole diameter
- 2 in depth of cut
- 8 A (115 V), 4 A (230 V) motor rating
- 6-9/16 in L x 3-1/8 in W magnet base
- 1035 W power rating
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | FZ80HMD904S |
-
Alternative Part Number904103
-
UNSPSC23241801
-
Standards/ApprovalsCSA Certified
-
Owners/User Manual
-
Catalog
