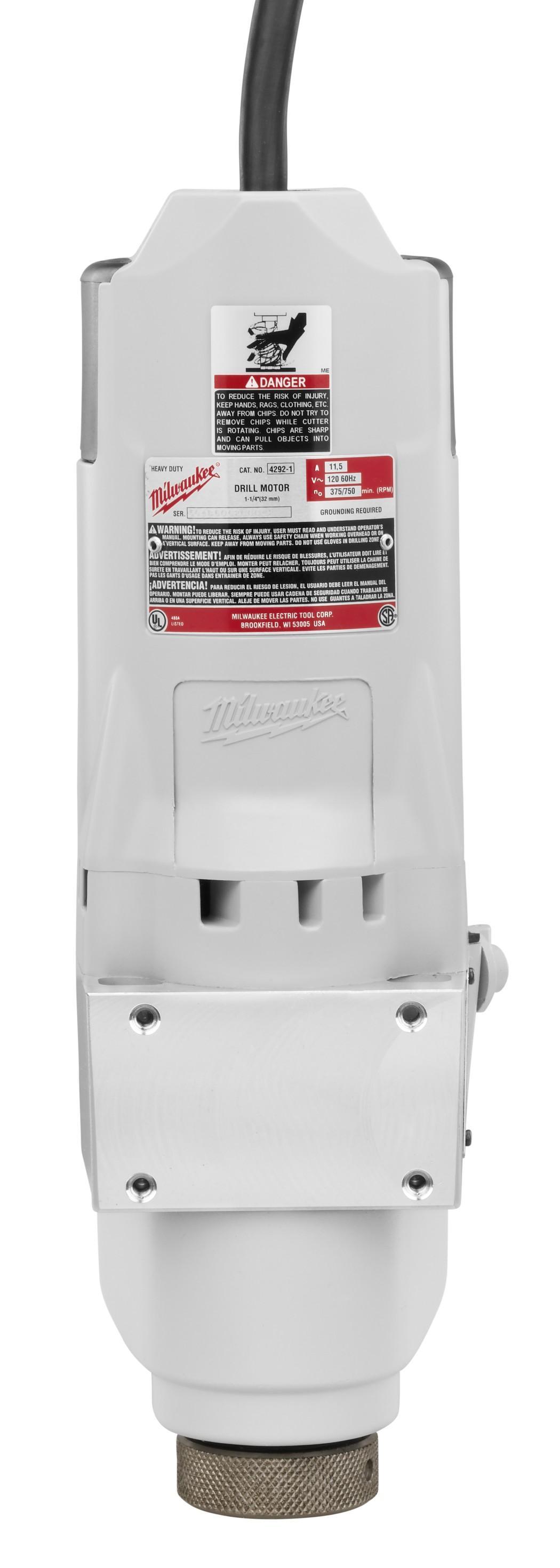

Milwaukee 1-1/4" MAGNETIC DRILL PRESS MOTORS MWK 4292-1
This heavy duty unit is built for production drilling and will take the toughest drilling jobs. Model 4292-1 features an 11.5 amp motor with a no.3 morris taper chuck. This two speed unit has 375 and 750 RPM, geared low for maximum torque. Use the larger 4203 adjustable base for this powerhouse, and no job is too large.
-
BrandMilwaukee®
-
UPC045242013203
-
Manufacturer Part Number4292-1
-
CountryUSA|Canada
-
MaterialMetal
-
ColorBlack/Gray/Red
-
TypeHeavy Duty Portable
-
Dimensions20.19 in L x 6.5 in W x 7.25 in H
-
Specifications120 VAC, 11.5 A, 750 rpm No Load, 1-1/4 in Drill Capacity, 1 in Chuck Size, 4 ft Cord, 1530/1600 lb Drill Point Pressure, 1-14 Tap Capacity
-
Suitable For Use WithElectromagnetic Drill Press
- Powerful 11.5 A motor engineered for the toughest applications, delivering 2375/750 rpm
- Dual-mount gear case/reverse mount - permits tight quarter drilling
- 1-1/4 in capacity - taps up to 1 in, 14-threaded holes
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1Y056 |
-
Alternative Part Number8564732
-
UNSPSC26101112
-
IDEA Index ID8564732
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|UL Listed
-
WarrantyLimited Lifetime
-
Owners/User Manual
