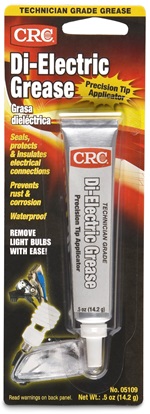

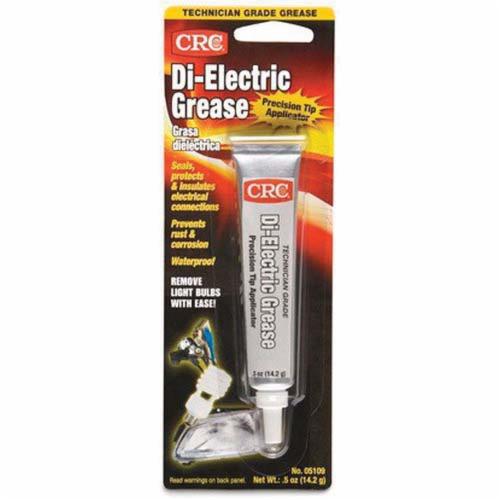

CRC® 05109 Non-Flammable Dielectric Grease With Precision Tip Applicator, 0.5 oz Tube, Grease, Translucent White, 570 deg F
A unique, non-curing compound used for sealing, protecting & electrical insulating. Improves electrical performance by reducing arcing, voltage drop & other conditions. Also ideal for lubrication of plastic & rubber.
-
BrandCRC®
-
UPC078254051093
-
Manufacturer Part Number05109
-
CountryUSA
-
Temperature Range570 deg F
-
Flammability Rating1
-
Flash Point570 deg F
-
FormGrease
-
ColorTranslucent White
-
TypeNon-Flammable
-
GradeTechnician
-
CompositionPolydimethylsiloxane, Amorphous Fumed Silica, Fumed Silica, Ethoxylated Nonylphenol
-
Container Size0.5 oz
-
Container TypeTube
-
Net Weight0.5 oz
-
Base TypeSilicone
-
Specific Gravity1.03
-
Odor/ScentMild
- 500 V dielectric strength
- A unique, non-curing compound used for sealing, protecting and electrical insulating
- 5 years of shelf life
- 3 of nlgi grade
- Slow evaporation rate
- Plastic safe
- -50 deg F pour point
- Improves electrical performance by reducing arcing, voltage drop and other conditions
- Temperature resistant- maintains performance year round
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 4138555 |
-
Alternative Part Number1003727
-
UNSPSC15121902
-
IDEA Index ID11112976
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|RoHS Compliant
-
Specification Sheet
