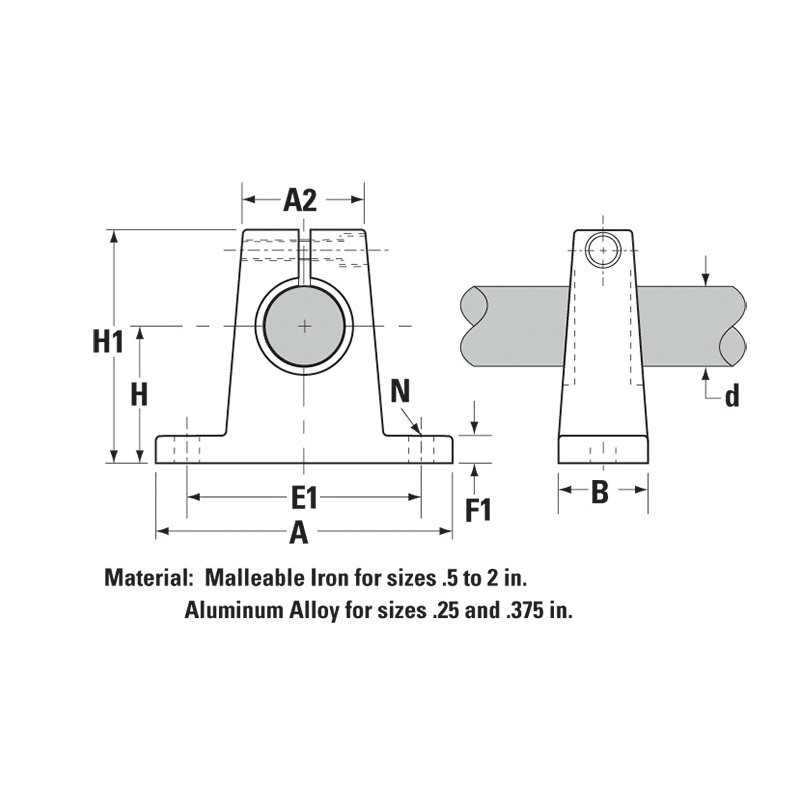

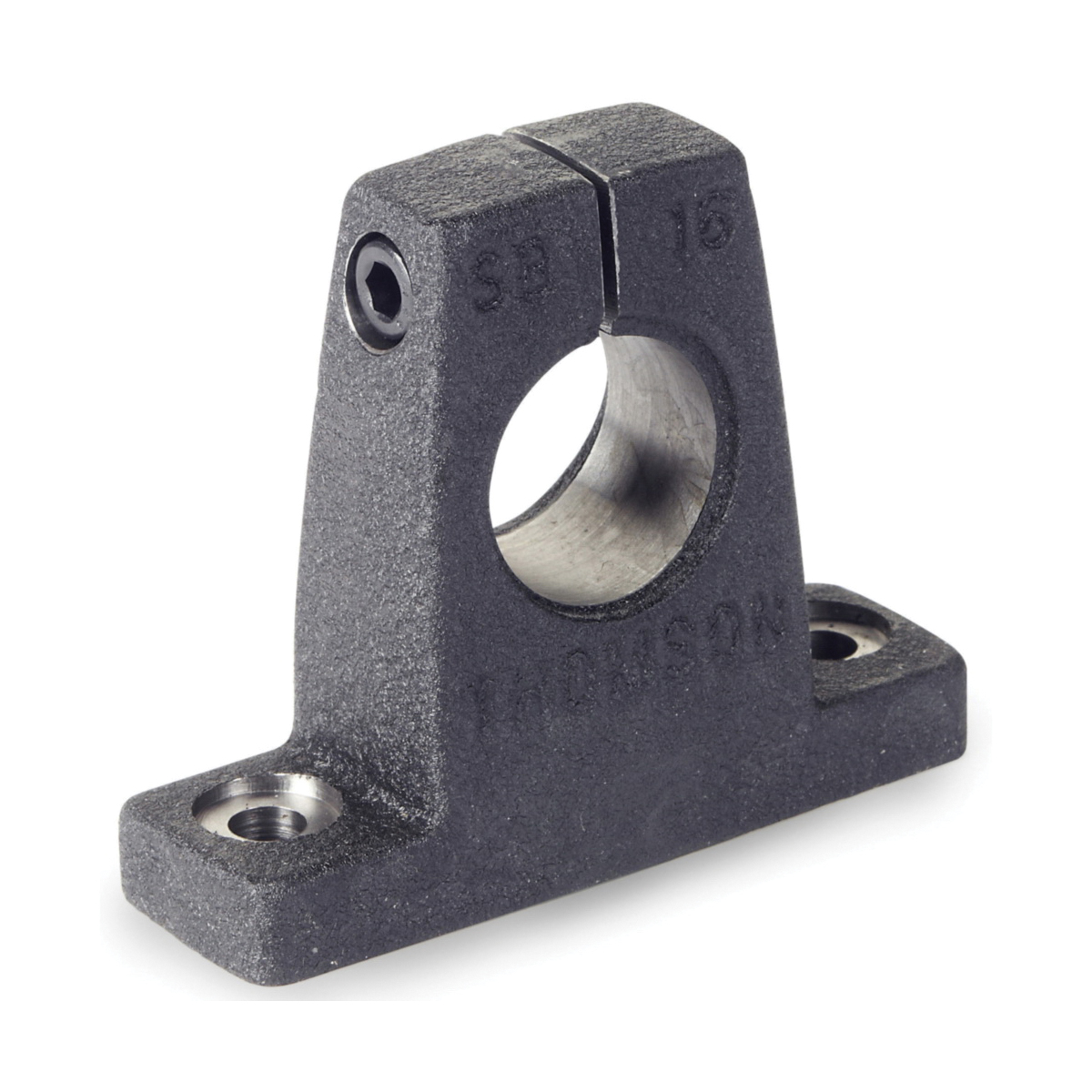

Thomson® 60 Case® LinearRace® SB12 Standard Type SB Shaft Support Block, 3/4 in Dia Shaft, 2-3/4 in L x 3/4 in W x 2.13 in H
Shaft support blocks are used for end or intermittent support where loads are light and deflection between supports is not a problem. Unlike shaft support rails, blocks do not permit longitudinal passage of open-type Ball Bushing® bearings. Type SB shaft support blocks enable clamping of shafts and eliminate the need for bolts, to maintain shaft position. Shimming is suggested for high-precision applications to eliminate the effect of variations in surface of base or manufacturing tolerances between supports.
-
BrandThomson®
-
UPC662486101642
-
Manufacturer Part NumberSB12
-
CountryUSA
-
FinishPainted
-
MaterialMalleable Iron
-
TypeStandard Type SB
-
Height2.13 in
-
Width3/4 in
-
Shaft Diameter3/4 in
-
Length2-3/4 in
-
Suitable For Use WithRoundRail™ 1BA/1NA End-Supported Linear Guide
- Easily secured with two mounting bolts
- Protected by corrosion resistant coating
- Lightweight, high-strength aluminum alloy construction
-
UNSPSC31171505
-
Package Description1/PK
-
Warranty1 Year
-
