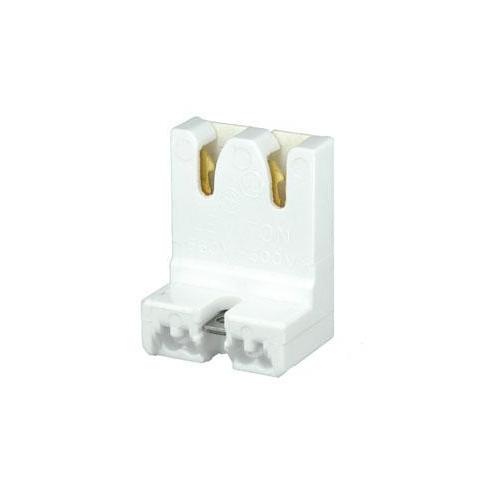

LEVITON T-8 FLUORESCENT BULB LAMPHOLDERS LEV 13451-N
LevitonĀ® 13451-N Standard Lampholder, 660 W Lamp, 600 VAC, Medium Bi-Pin Fluorescent Lamp
-
BrandLevitonĀ®
-
UPC078477854402
-
Manufacturer Part Number13451-N
-
CountryUSA
-
MaterialThermoset
-
ColorWhite
-
TypeStandard
-
Connection TypeQuick-Connect
-
Mounting TypeThreaded
-
Voltage Rating600 V AC
-
Dimensions1 in L x 1.34 in W x 0.72 in D
-
Lamp Base TypeG13
-
Lamp TypeFluorescent
-
Lamp Wattage660 W
- Copper alloy contacts
- Straight in double edge contact
- 3/8 in wire strip length
- Low profile
- #6-32 zinc plated nut
- #6-32 x 3/8 zinc plated screw
- 18 AWG wire size
- T8 fluorescent lamp
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25ML61 |
-
Alternative Part Number7345987
-
UNSPSC39101605
-
IDEA Index ID7345987
-
Package DescriptionEACH
-
Standards/ApprovalsUL File No. E5833|CSA File No. LR5863|NOM 057
-
Warranty1 Year Limited
-
Specification Sheet
-
Instruction/Installation Manual
