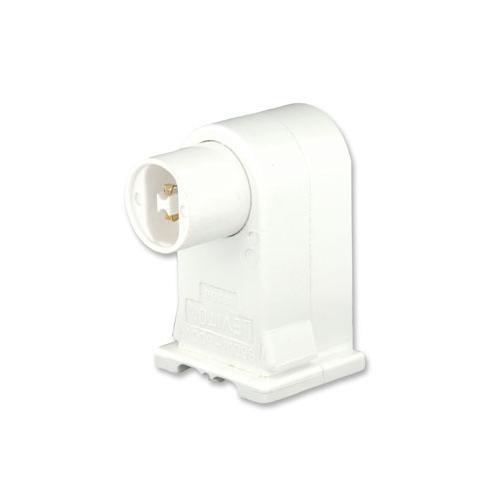

Leviton® 13556-W Plunger End Standard Lampholder With Internal Shunt, 660 W Lamp, 1 kV AC
Leviton® 13556-W Plunger End Standard Lampholder With Internal Shunt, 660 W Lamp, 1000 VAC, High Output Fluorescent Lamp
-
BrandLeviton®
-
UPC078477104378
-
Manufacturer Part Number13556-W
-
CountryCanada
-
Terminal TypeQuick Wire
-
MaterialThermoset
-
ColorWhite
-
TypePlunger End Standard
-
Mounting TypeThreaded
-
Voltage Rating1 kV AC
-
Dimensions1.28 in H x 1.44 in W
-
Lamp Base TypeHigh Output
-
Lamp TypeFluorescent
-
Lamp Wattage660 W
- Silver plated copper alloy contact
- Vertical double contact lamp
- 3/8 to 1/2 in wire strip length
- 20 ga panel
- For power grove and jacketed lamps
- 18 AWG wire gauge
-
Alternative Part Number12168403
-
UNSPSC39101605
-
IDEA Index ID12168403
-
Package DescriptionEACH
-
Standards/ApprovalsCSA File No. LR-5863|NOM 057 Approved|UL File No. E5833
-
Instruction/Installation Manual
