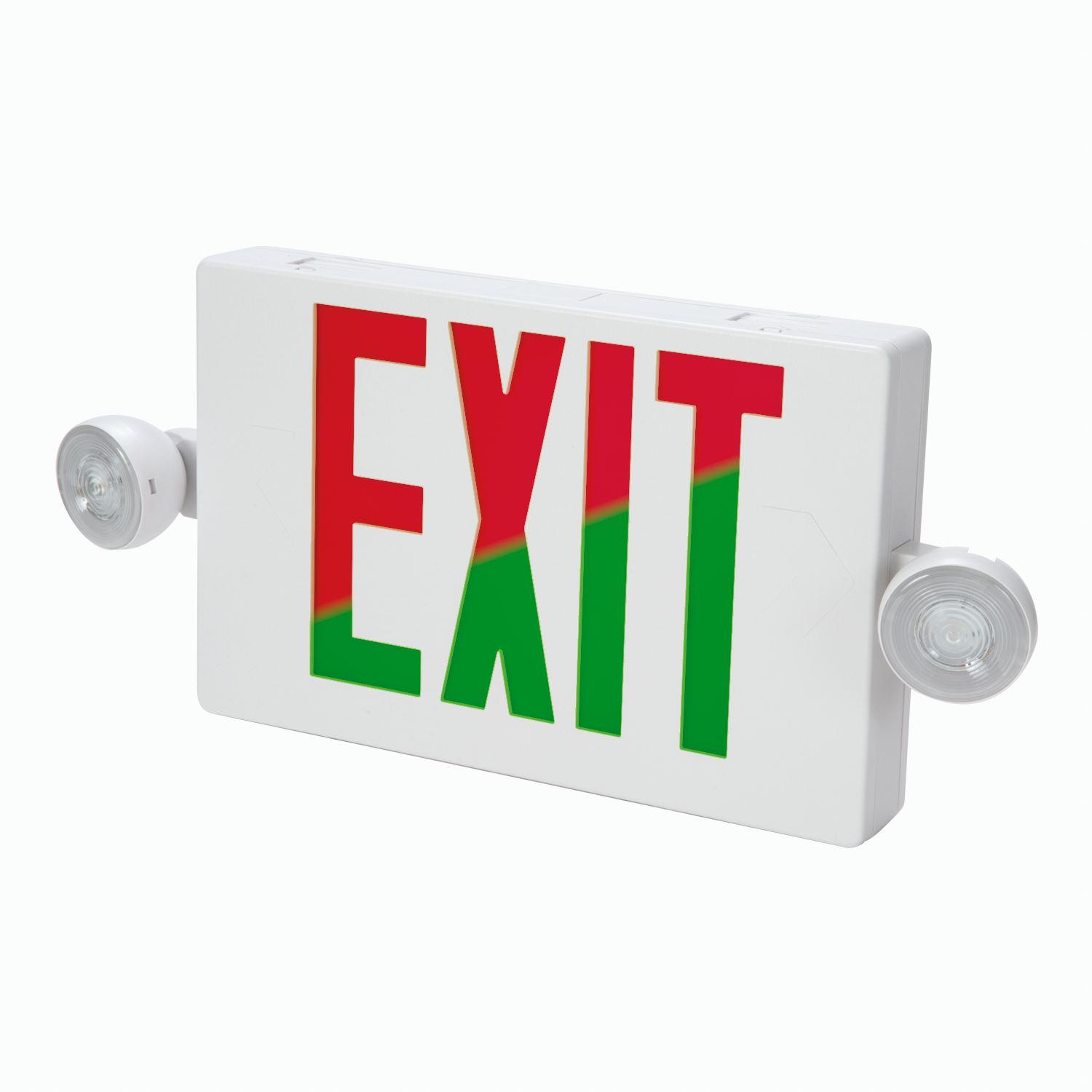

Sure-Lites APC7RG Universal Exit Sign, LED Lamp, 120/277 V AC, White Housing, EXIT Legend
The CC series offers quality and value with a compact and attractive LED based combination emergency exit. The white or black housing and Lamp heads are made of high impact UL flame rated thermoplastic. Snap together canopy, housing and removable chevrons for quick and easy installation. Universal single or double-face. Remote capacity unit will run a double head remote or 2 single head remotes of either the Compass® CIR or COR series.
-
BrandSure-Lites
-
UPC080083280827
-
Manufacturer Part NumberAPC7RG
-
CountryUSA
-
Power SourceNickel-Cadmium Battery
-
TypeUniversal
-
Mounting TypeCeiling/End/Wall
-
Voltage Rating120/277 V AC
-
Amperage Rating0.1 A at 277 V
-
SeriesAPC7RG
-
Housing MaterialThermoplastic
-
Dimensions8-1/4 in H x 16-9/16 in W x 2-5/16 in D
-
Lamp TypeLED
-
Lamp Wattage4.04 W
-
LegendEXIT
-
Light ColorRed/Green
-
Number of Heads2
-
Number of Lamps2
- Red/green selectable exit sign and emergency light
- Runs for 90 min when AC power is lost
- 3.6 V, 0.78W LED heads provide up to 17 ft of egress coverage
- Field selectable, long-life red or green LEDs and face inserts provide deep letter colors and uniform illumination
- Selectable single or double faces and snap-in/snap-out directional chevrons
- High impact, UV resistant, 5VA flame resistant housing
- Nickel cadmium battery
- Ceiling, wall and back mount with universal J-box mounting pattern
- Remote capable model powers up to two additional APWR LED heads
-
Standards/ApprovalsUL 924 Listed|Title 20 Compliant|Damp location listed
-
Alternative Part Number11792690
-
UNSPSC39111707
-
IDEA Index ID11792690
-
IncludesCanopy
-
Package DescriptionEACH
-
Warranty2 years
-
Specification Sheet
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
