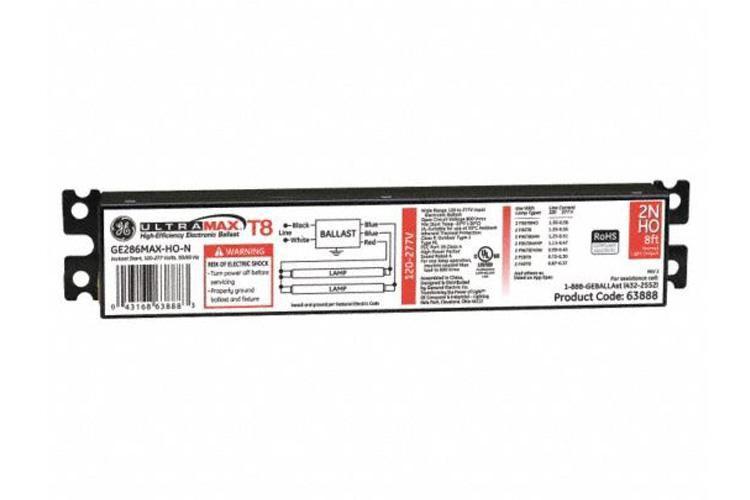

GE Lamps Tungsram Multi-Volt ProLine® GE Lamps286MAX-HO-N Electronic Ballast, 86 W Lamp, 120 to 277 VAC, Instant, 0.8 Ballast Factor
GE Lamps Tungsram Multi-Volt ProLine® GE Lamps286MAX-HO-N Electronic Ballast, T8HO Fluorescent Lamp, 86 W Lamp, 120 to 277 VAC, Instant, 0.8 Ballast Factor
-
BrandGE Lamps
-
UPC043168638883
-
Manufacturer Part NumberGE286MAX-HO-N
-
CountryUSA
-
Temperature Range-22 to 105 deg F
-
Power Factor>0.97/0.99
-
Total Harmonic Distortion0.1 %
-
Frequency Rating60 Hz
-
Minimum Starting Temperature-18 deg C
-
Voltage Rating120 to 277 V AC
-
Wattage143/146 W
-
Amperage Rating1.3/0.56 A
-
Ballast Factor0.8
-
Number of Lamps2
-
Dimensions9.5 in L x 1.7 in W x 1.2 in H
-
Start TypeInstant
-
Lamp TypeT8HO Fluorescent
-
Lamp Wattage86 W
-
Enclosure TypeNEMA 1
- Parallel lamp operation means system maintenance is easier to manage
- Active power factor correction
- 18 ft max lead length, 18 AWG min wire size remote mounting
- Normal ballast factor
- 146 W at 120 VAC, 143 W at 277 VAC
- 1.30 A at 120 VAC, 0.56 A at 277 VAC
- >=99% at 120 VAC, 97% at 277 VAC power factor
- GE286MAX-HO-N designation
-
UNSPSC39101901
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed
-
Warranty5 year limited warranty
-
SDS
-
Catalog
-
Specification Sheet
