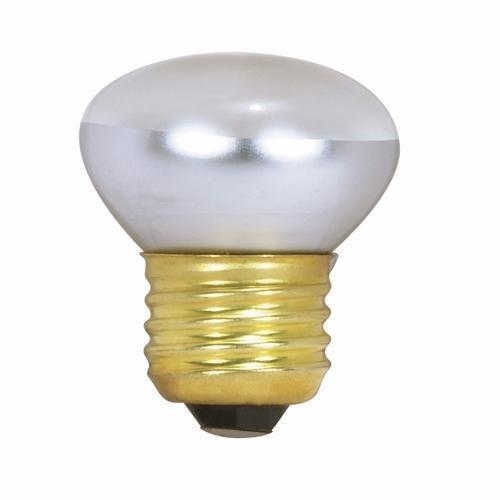

SATCO® S3601 Dimmable General Service Reflective Lamp, 25 W, E26 Incandescent Lamp, R14 Stubby Shape, 135 Lumens Initial
Incandescent lamps represent the original lighting technology, remaining virtually unchanged since their invention in the mid 19th century and the lighting technology SATCO® was founded upon. This is the technology most everyone has become familiar with and the baseline comparison for all other lighting technologies. As the incandescent bulb becomes more and more regulated, SATCO® remains on the cutting edge of new lighting technologies. Still, we remain well stocked with incandescent lamps in a multitude of wattages, base sizes and shapes for every application.
-
BrandSATCO®
-
UPC045923036019
-
Manufacturer Part NumberS3601
-
CountryUSA|Canada
-
FilamentCC-2V
-
Lumens135 Lumens Initial
-
ColorWhite
-
Color Rendering Index (CRI)100
-
Color Temperature2700 K
-
TypeDimmable General Service
-
Voltage Rating120 V AC
-
Wattage25 W
-
Amperage Rating0.21 A
-
Average Life1500 hr
-
ShapeR14 Stubby
-
Designation25R14
-

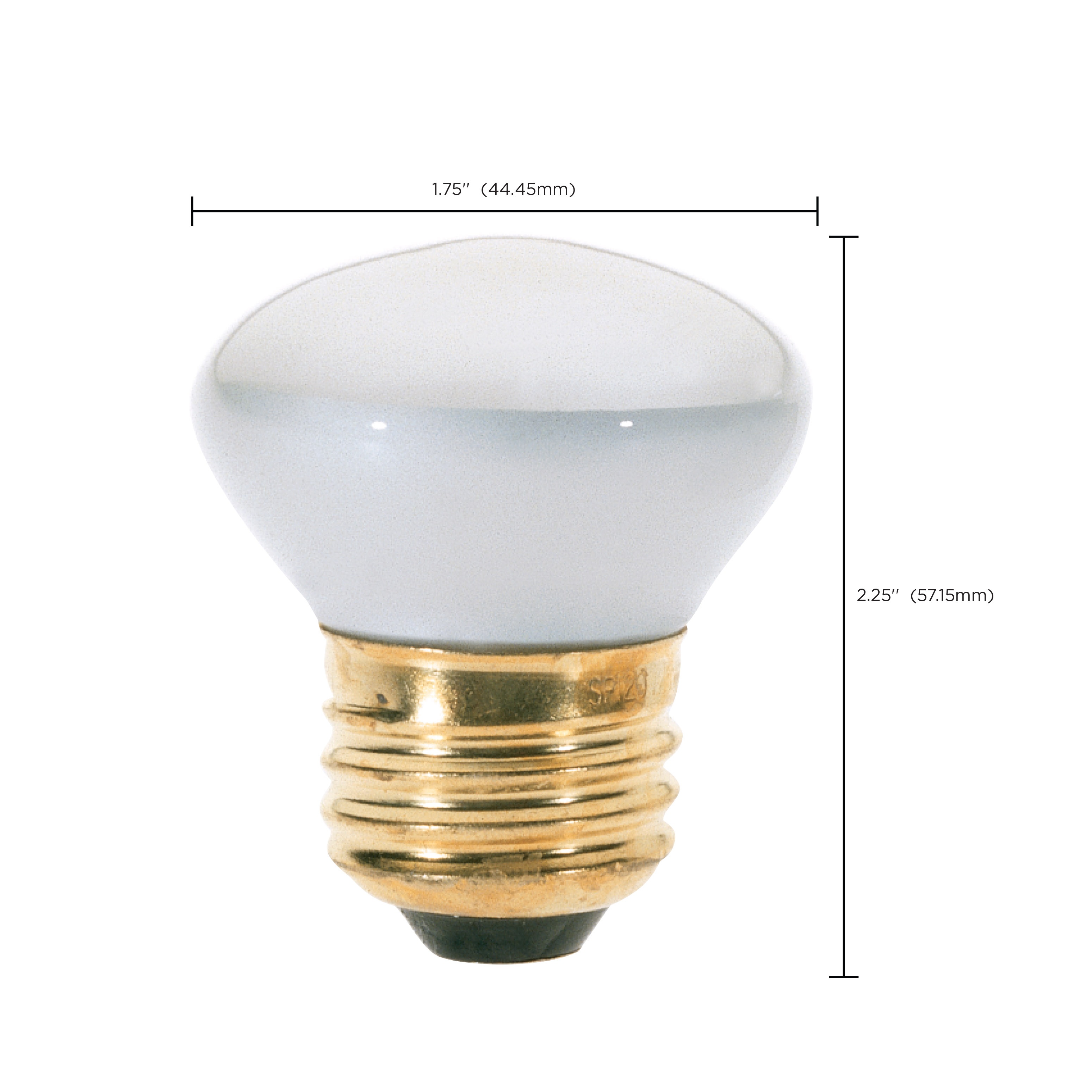

Dimensions1-3/4 in Dia x 2-1/4 in L
-
Beam TypeReflector
-
Lamp Base TypeE26
-
Lamp FinishClear
-
Lamp TypeIncandescent
- High lumen output
- Virtually every size and style imaginable
- Durable vibration and rough service products
- Colored and special application types
- Long life
- Brass base
| Cross-Reference Number |
|---|
| 521922 |
-
Alternative Part Number12913890
-
UNSPSC39101612
-
IDEA Index ID12913890
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|CEC Certified|ECCN: EAR99
-
WarrantyLimited
-
RoHS
-
Warranty Information
-
Specification Sheet
