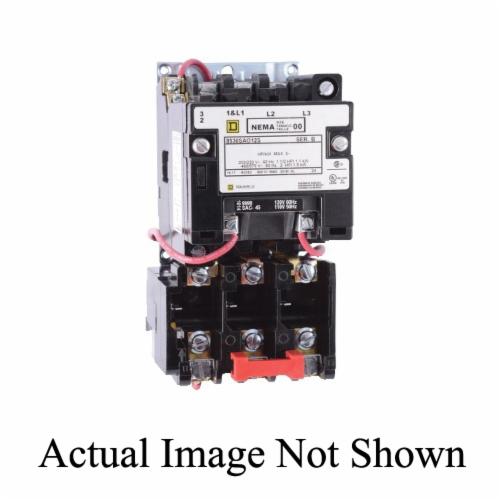

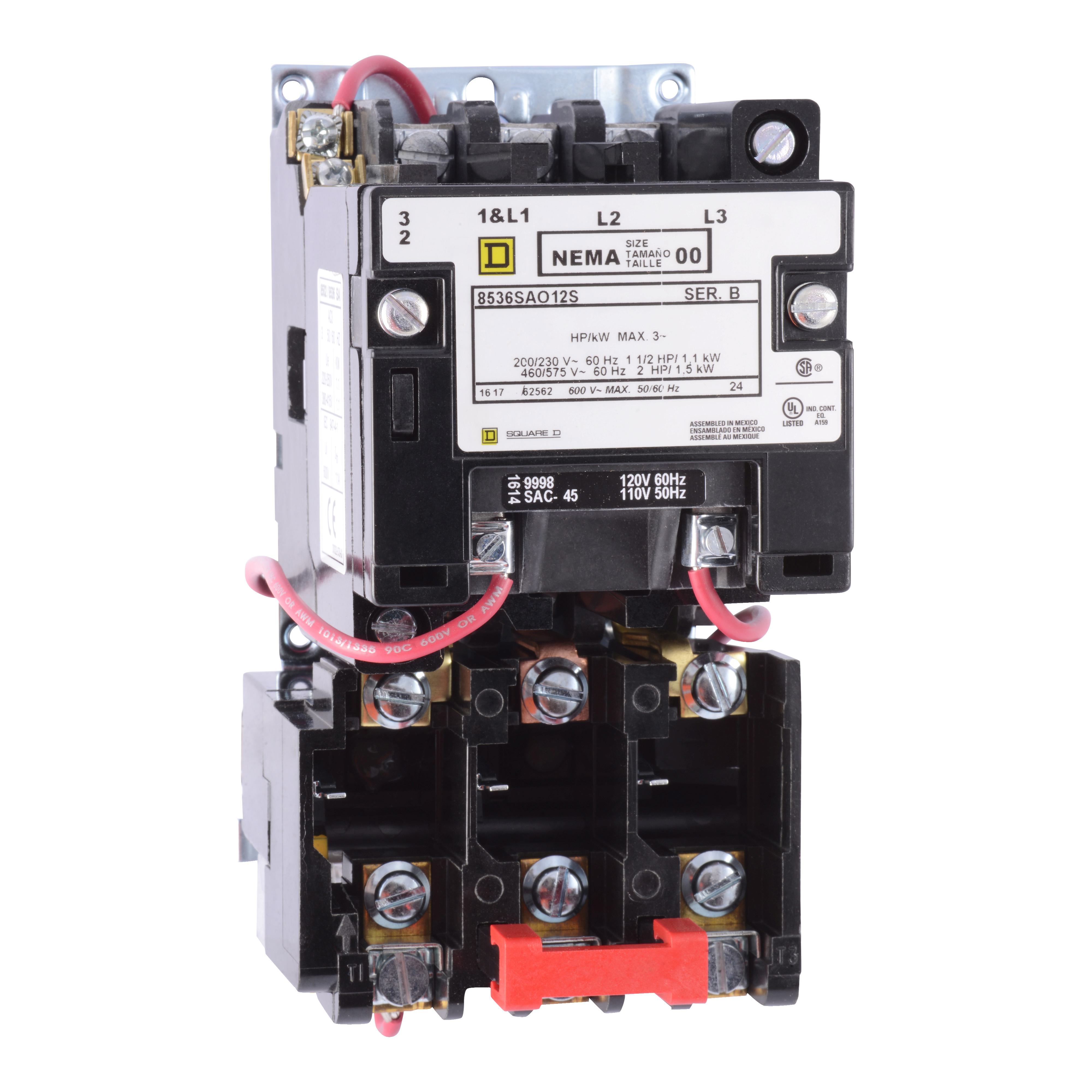

Square D™ 8536SBO2V06 Type S Starter, 440/480 VAC V Coil, Non-Reversing Action, 3 Poles, Open Enclosure
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. NEMA Size 0 motor starters have 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 440/480 VAC 50/60 Hz operating coil wired for common control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 4.52 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
-
BrandSquare D™
-
UPC785901864622
-
Manufacturer Part Number8536SBO2V06
-
CountryUSA
-
Frequency Rating50/60 Hz
-
Coil Voltage440/480 V AC
-
Reset Type(3) Thermal Melting Alloy
-
TypeType S
-
Connection TypeScrew Clamp
-
ActionNon-Reversing
-
Voltage Rating600 V AC
-
Amperage Rating18 A
-
Number of Poles3
-
Dimensions3.5 in W x 4.21 in D x 6.77 in H
-
Enclosure TypeOpen
-
Phase3
- Flexible with four overload relays types
- Customizable with hundreds of combinations
- Streamline installation, wiring, maintenance and field modifications
- Reliable build for long mechanical life and electrical endurance
-
Alternative Part Number8064951
-
UNSPSC39121521
-
IDEA Index ID8064951
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed|CSA Certified|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
-
Warranty18 Months
-
