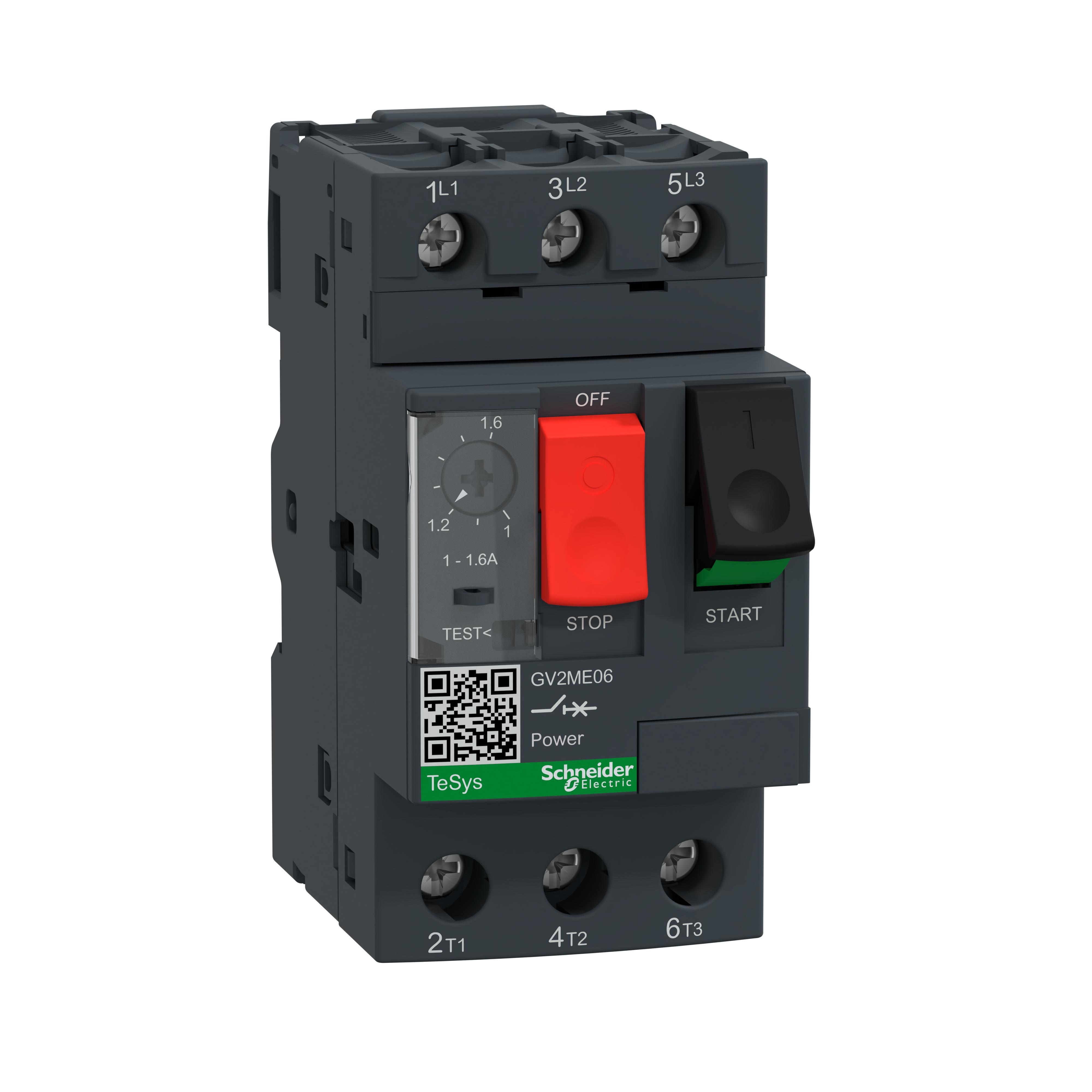

Schneider Electric Square D™ TeSys™ GV2 GV2ME06 Non-Reversing Manual Motor Starter With Thermal Magnetic Circuit Protector, 3 Poles, IP20 Enclosure
The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 1 ampere to 1.6 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
-
BrandSchneider Electric
-
UPC785901211938
-
Manufacturer Part NumberGV2ME06
-
CountryUSA
-
Frequency Rating50/60 Hz
-
TypeNon-Reversing
-
Connection TypeScrew Clamp
-
Voltage Rating600 V AC
-
Control TypePushbutton
-
Amperage Rating1 to 1.6 A
-
SeriesGV2
-
Number of Poles3
-
Dimensions45 mm W x 78.5 mm D x 89 mm H
-
Operating Cycles100000 cycles
-
Operating Temperature-20 to 60 deg C
-
Enclosure TypeIP20
- New modern look and feel of all machines
- Wide range of GVs, Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)
- Easier to install and operate with multi-standard screws
- Sturdy and long-lasting power connection with EverLink terminals
- Digital customer experience for technical documents
- Maintenance guide via EcoStruxureTM Facility Expect
-
Alternative Part Number8087064
-
UNSPSC39121521
-
IDEA Index ID8087064
-
Package DescriptionEACH
-
Standards/ApprovalsBV Certified|CCC Certified|CSA Certified|DNV Certified|ECCN: EAR99|EN 60204|GL Certified|Green Premium|IEC 60947-1|IEC 60947-2|Lloyd's Register Certified|NFC 63-120|NFC 63-650|NFC 79-130|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov|REACH Compliant|RINA Certified|RoHS Compliant|VDE 0113|VDE 0660|WEEE Compliant
-
Warranty18 months
-
RoHS
-
Specification Sheet
-
Owners/User Manual
-
Technical Bulletin
