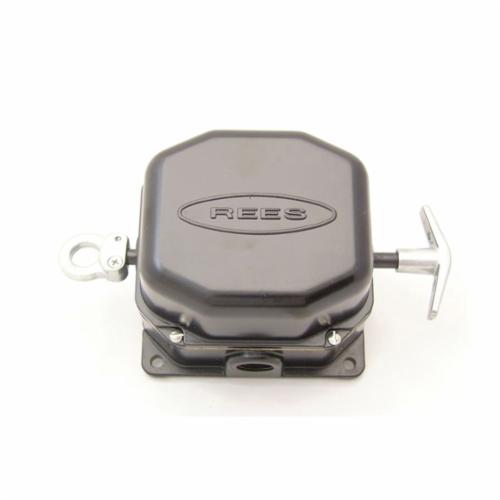

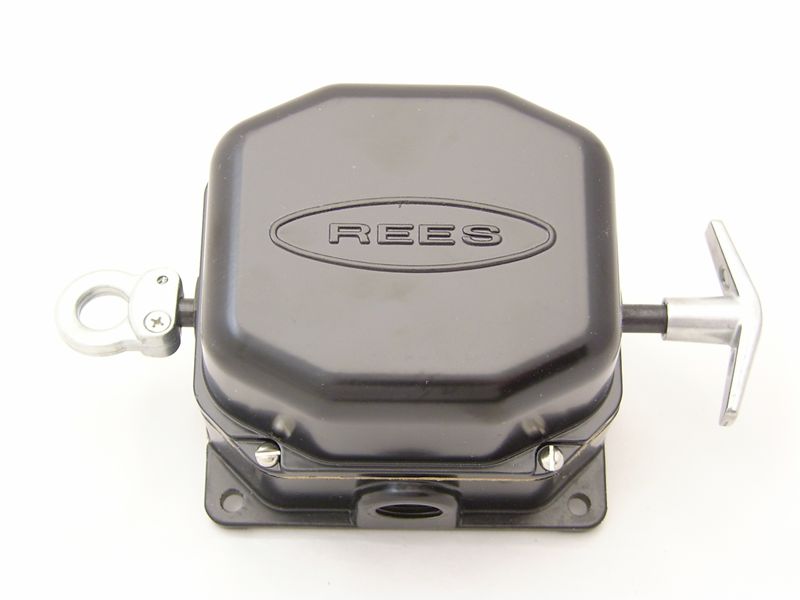

REES 04944-000 Heavy Duty Manual Reset Slack Cable Operated Switch, 550 to 600 V AC, 1NO-1NC Contact
-
BrandREES
-
UPC648671440000
-
Manufacturer Part Number04944-000
-
CountryUSA
-
Temperature Rating32 to 131 deg F
-
Terminal Type(2) 14 AWG Stranded Wire
-
MaterialAluminum
-
TypeHeavy Duty Manual Reset Slack
-
Contact Configuration1NO-1NC
-
Mounting TypeHole
-
Contact Rating6/1.2 A at 110 to 600 VAC, 2.2/1.1 A at 115 to 250 VDC
-
Voltage Rating550 to 600 V AC
-
Dimensions3.9 in H
-
Enclosure TypeNEMA 12/13/IP65
- This switch is particularly competent for use in emergency stop applications as well as for ordinary circuit control
- The housing is made from high quality die cast aluminum and powder coated painted black
- Manual reset with positive break contacts
- Gold plated contacts eliminate high resistance tarnishing
- May be mounted for right or left hand pull
- Each switch is supplied with a fibreflex gasket which provides an oil tight seal upon installation
- For added protection against corrosive environments a neoprene gasket is available as an accessory item by ordering part number 02005-540
- There are two 1/2 in NPT conduit openings
- The maximum cable recommended cable length is 200 ft with a maximum interval support of 10 ft
- The mechanical life of the switch is 150000 operations
- This switch can be installed on various conveyor installations and provides a constant access for emergency or normal stopping
- The rugged construction and long term reliability makes this cable pull switch well suited to function within various environments
- A600/N300 heavy duty rating
- -40 to 85 deg C storage temperature
- Operating temperatures at 0 deg C are based on the absence of freezing moisture and liquids
- 60, 30, 15, 12 A inrush current, 15 lb trip force, 3 lb operating force between 10 ft supports
- Slack cable style, 6 A/1.2 A at 110 to 120/550 to 600 VAC, 2.2 A/1.1 A at 115 to 125/230 to 250 VDC
-
UNSPSC39122205
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Specified|CE Certified|CSA C22.2 File No. LR3648|Demko File No. D-01496-M1|IEC/EN 60947-5-1|UL File No. E 58589/508
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
