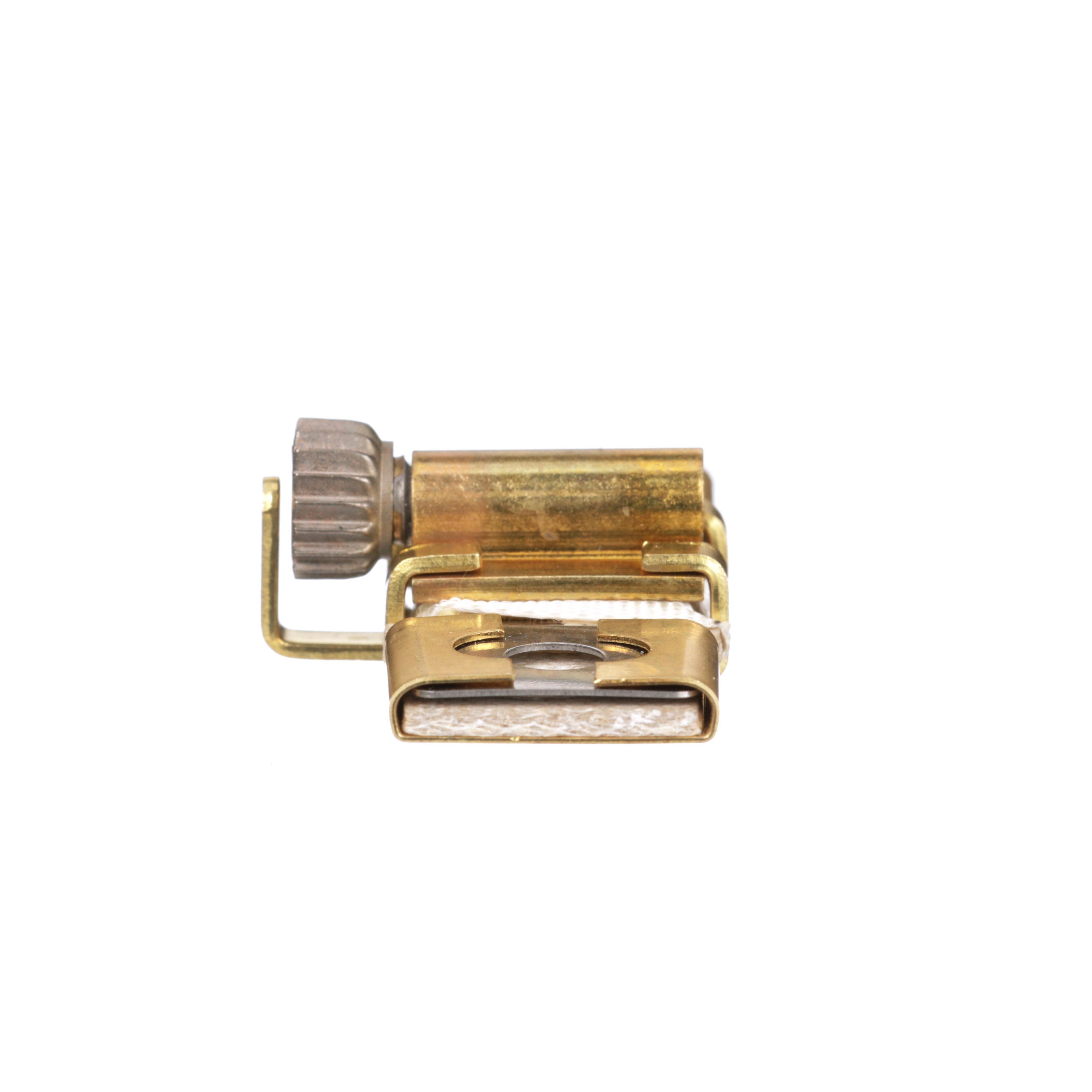

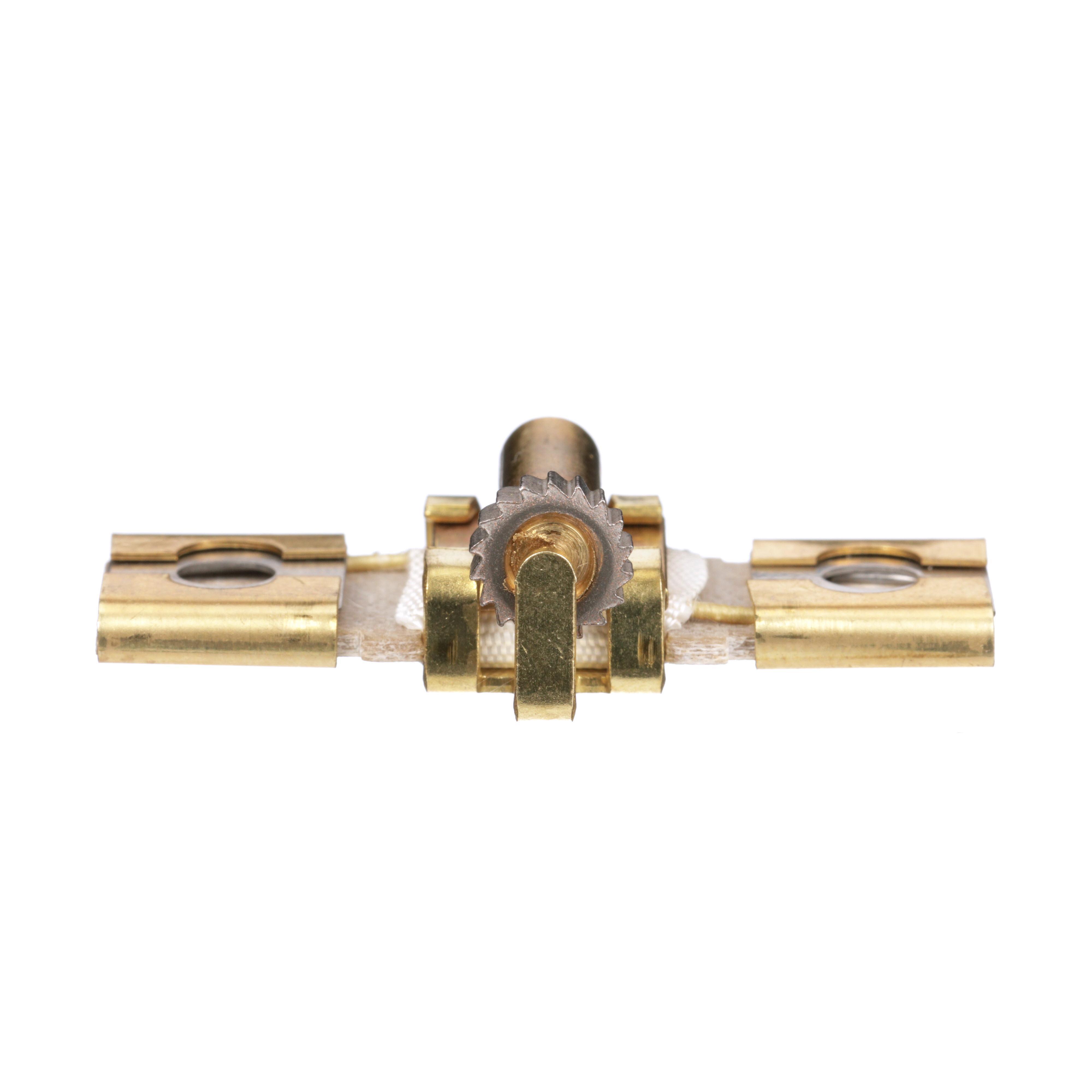

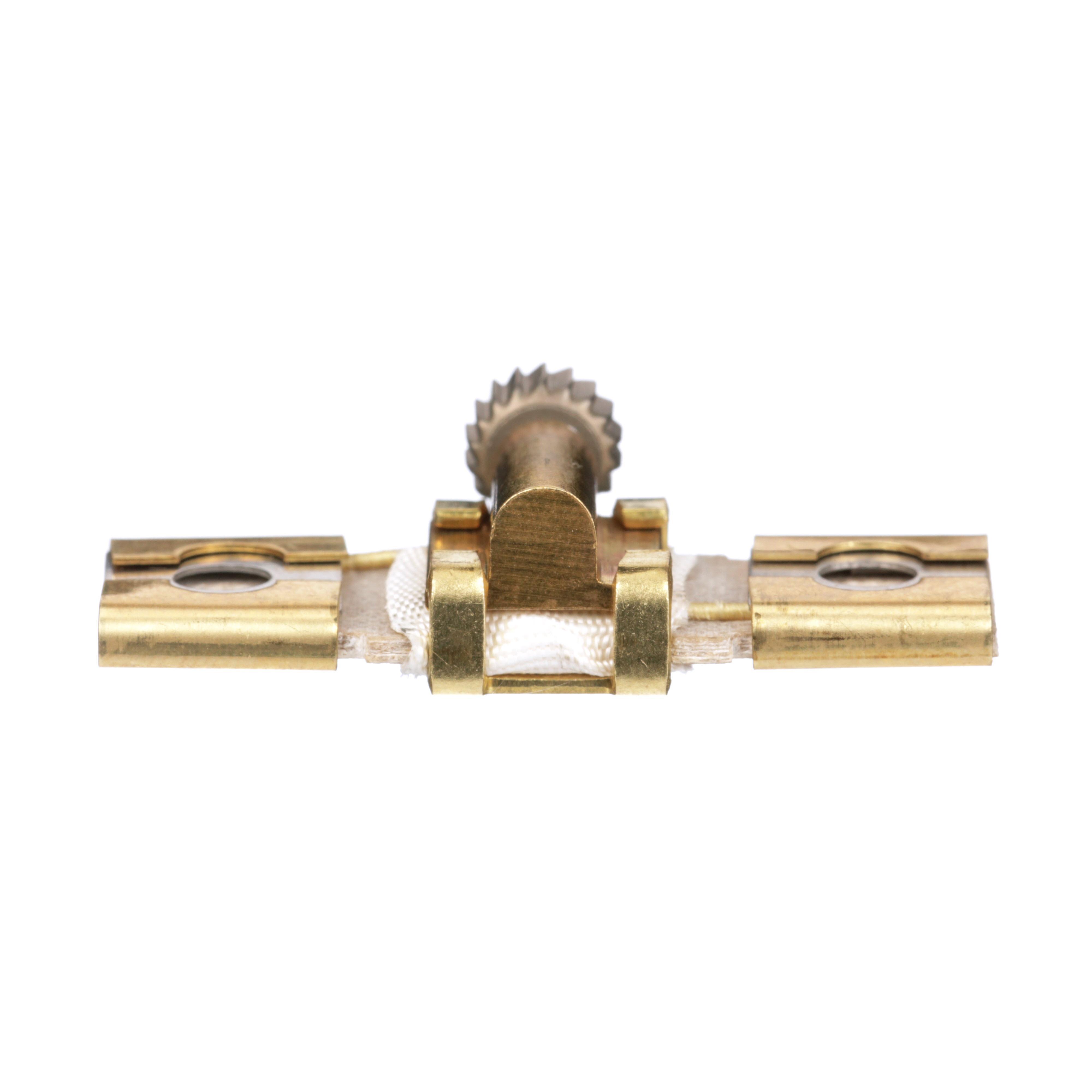

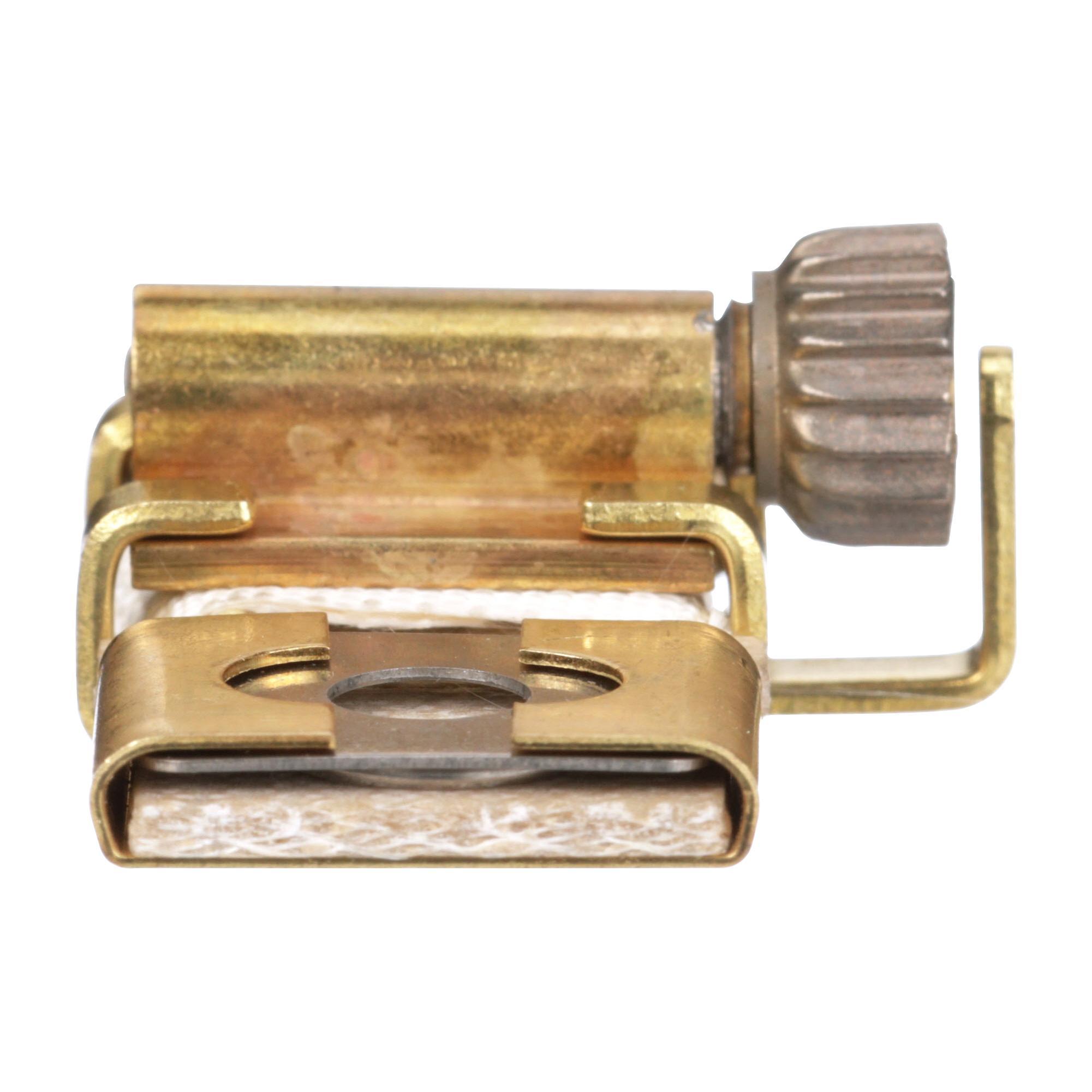

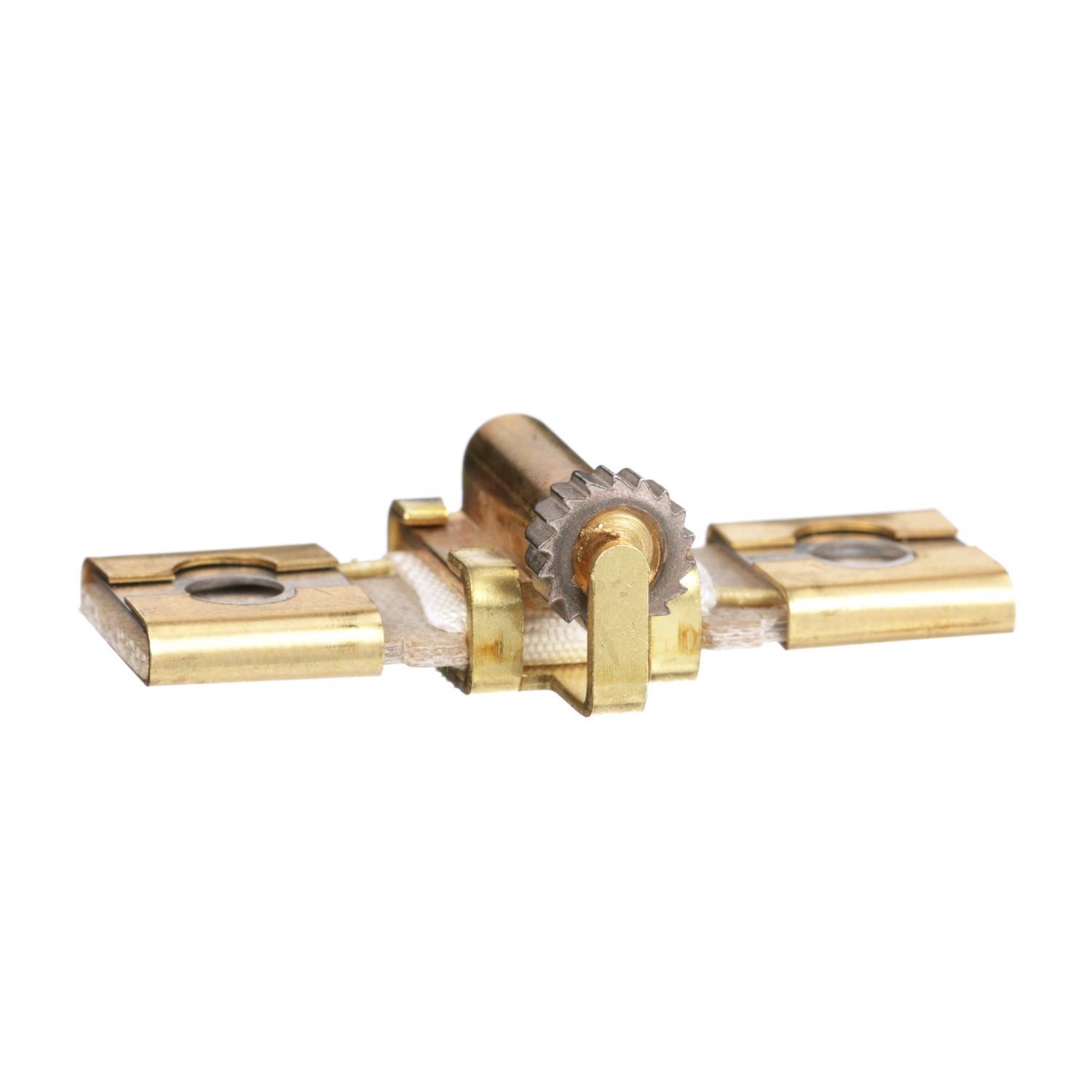

Square D™ B11.5 Melting Alloy Thermal Unit, 600 V AC
Linergy NEMA sectional terminal blocks are for terminating wire and are designed to NEMA standards. This Square D terminal block mounting track is designed specifically for 9080G terminal blocks. The track is pre-punched with oblong slots to make mounting the track to the panel easier. This terminal block track is 20 inches long. This track is made of galvanized steel.
-
BrandSquare D™
-
UPC785901587484
-
Manufacturer Part NumberB11.5
-
CountryUSA|Canada
-
Temperature Rating40 deg C
-
Full Load Current6.9 to 9.56 A
-
Trip TypeClass 50/Standard
-
TypeMelting Alloy
-
Mounting TypePlug-In
-
Voltage Rating600 V AC
-
Size4.9 in L x 3.4 in W x 0.8 in H
- Switch electric motors with variety of overload relays
- 600V maximum
- Simple catalog number for easy and fast ordering
- 40 deg c or less
- 6.9 to 9.56 A (1 thermal unit), 7.14 to 9.55 A (2 thermal unit), 6.44 to 9.12 A (3 thermal unit) full load current
-
Alternative Part Number8104402
-
UNSPSC39122330
-
IDEA Index ID8104402
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
-
Warranty18 months
-
