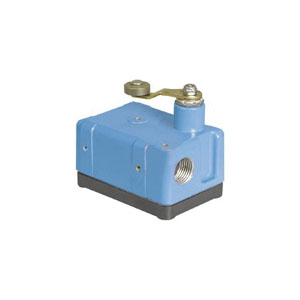

Honeywell MICRO™ SWITCH OP-AR OP Series Enclosed Limit Switch, 125/250/480 V AC, 15 A, Side Rotary Lever Actuator, 1CO SPDT Contact
Honeywell MICRO SWITCH OP Series are precision, snap-action switches sealed in rugged cast aluminum housings. Cover and shaft seals keep out moisture and other contaminants on rotary operated switches. The plungers in the Q-plunger versions are not sealed.
-
BrandHoneywell
-
UPC784549329807
-
Manufacturer Part NumberOP-AR
-
CountryUSA
-
MaterialDie Cast Aluminum
-
TypeEnclosed
-
Connection Type1/2-14 NPT
-
Contact Configuration1CO SPDT
-
ActionSnap
-
ActuatorSide Rotary Lever
-
Voltage Rating125/250/480 V AC
-
Amperage Rating15 A
-
SeriesOP Series
-
Enclosure TypeNEMA 1/3/4/13
- 2.22 N to 5.56 N (8 oz to 20 oz) operating force
- 1.11 N (0.25 lb) minimum release force
- 5.56 mm (0.219 in) maximum pretravel
- 90 deg over travel
- 0.18 mm (0.007 in) maximum differential travel
- 1.5 in fixed length lever with back mounted steel roller (0.75 in diameter x 0.25 in width)
- CW actuation, field adjustable through 360 deg, roller lever may be positively locked at intervals of approximate 0.2 deg
- Mounts from four sides
- Cover seal, captive cover screws
- Momentary contact
- Grounding screw
-
UNSPSC39122213
-
Standards/ApprovalsCSA Certified|UL E12252
