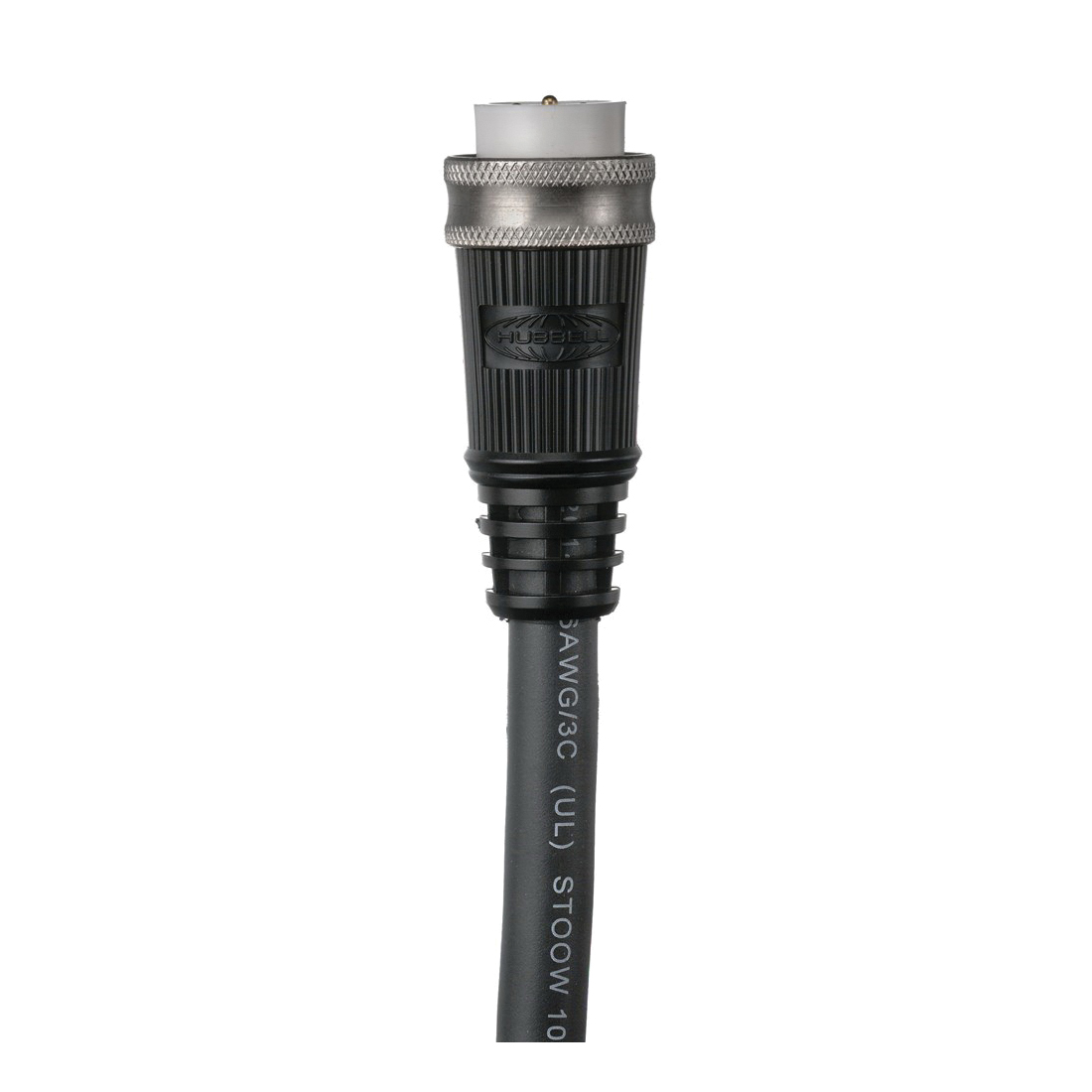

Hubbell Wiring Device-Kellems Mini-Quick® HCMS04120 Standard Control Plug, 7/8-16 UN Straight Female Connector, 20 ft L Cable, 4 Poles
Hubbell Wiring Device-Kellems Mini-Quick® HCMS04120 Standard Control Plug, 7/8-16 UN Straight Female Connector, 20 ft L Cable, 4 Poles
-
BrandHubbell Wiring Device-Kellems
-
UPC783585228600
-
Manufacturer Part NumberHCMS04120
-
CountryUSA
-
Cable TypeSEOOW
-
NEMA RatingNEMA 4/4X/12/13/IP66
-
Amperage Rating12 A
- Nickel plated brass metallic coupling nuts and receptacle shells
- Black overmold and cable
- Insulgrip® connector body design
- Plating resists corrosion in high abuse environments
- Cable assembly resists dirt and blends with environment giving a clean look to the installation
- Third party certified for electrical, mechanical and environmental performance
- Ergonomic connector body has an industrial look
- -20 to 105 deg C temperature
- 16 AWG copper conductor
- 5 MW contact resistance
- 1000 MW isolation resistance
- -20 to 105 deg C STOOW and AWM2661, -40 to 105 deg C SEOOW cable
- 500 hr salt spray per MIL-STD-1344, method 1001 corrosion resistance
-
UNSPSC32151904
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|UL 2238/50 File No. E192071|CSA C22.2 No. 182.3/94.2-07|cULus Listed
-
Instruction/Installation Manual
-
Full Engineering Drawing
-
Catalog
