Square D™ Harmony™ 9001BW92Y Type BW Pendant Control Station, 600 V AC, 5 A, 1NO-1NC Contact, 2 Operators, NEMA 1/3/3R/4/4X NEMA Rating

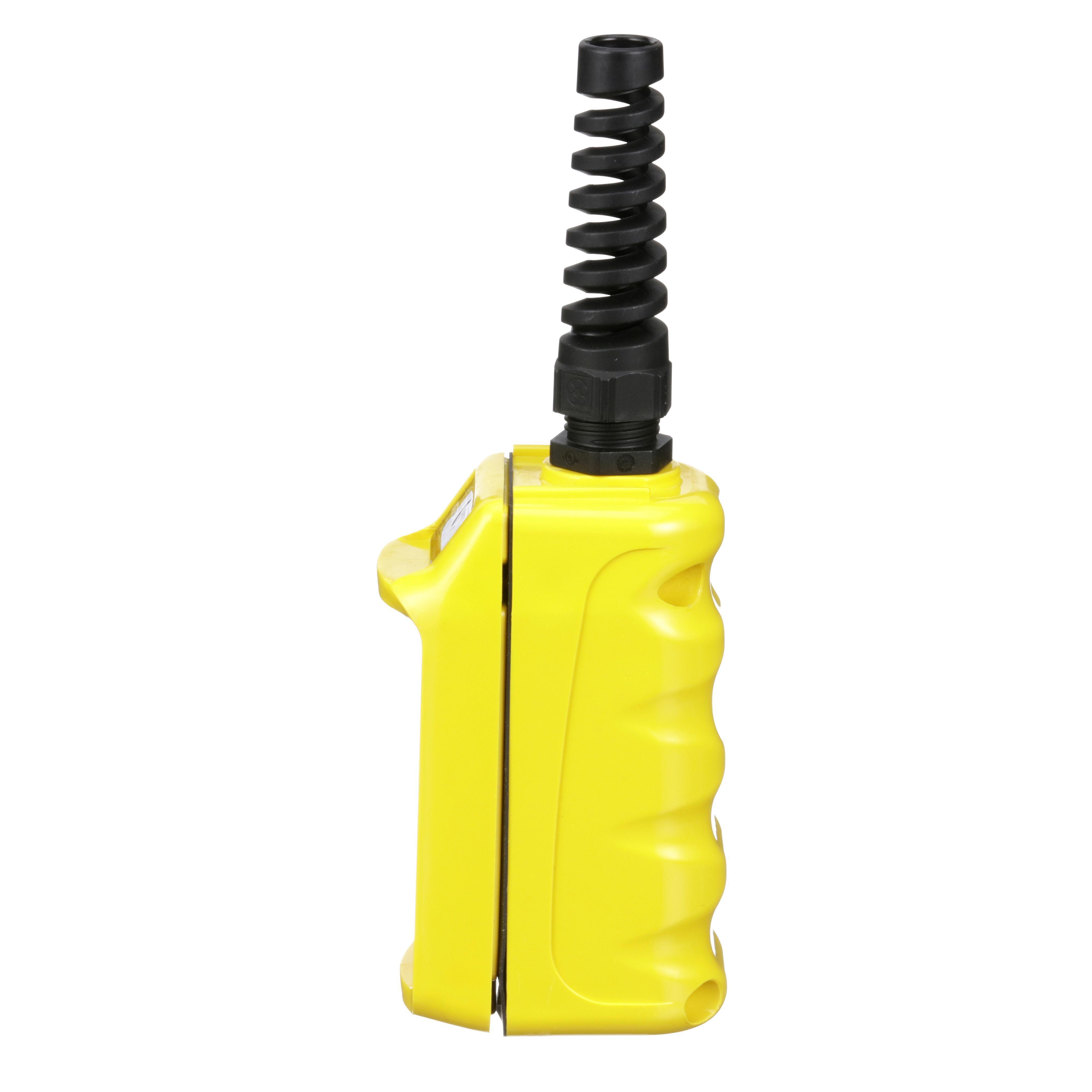

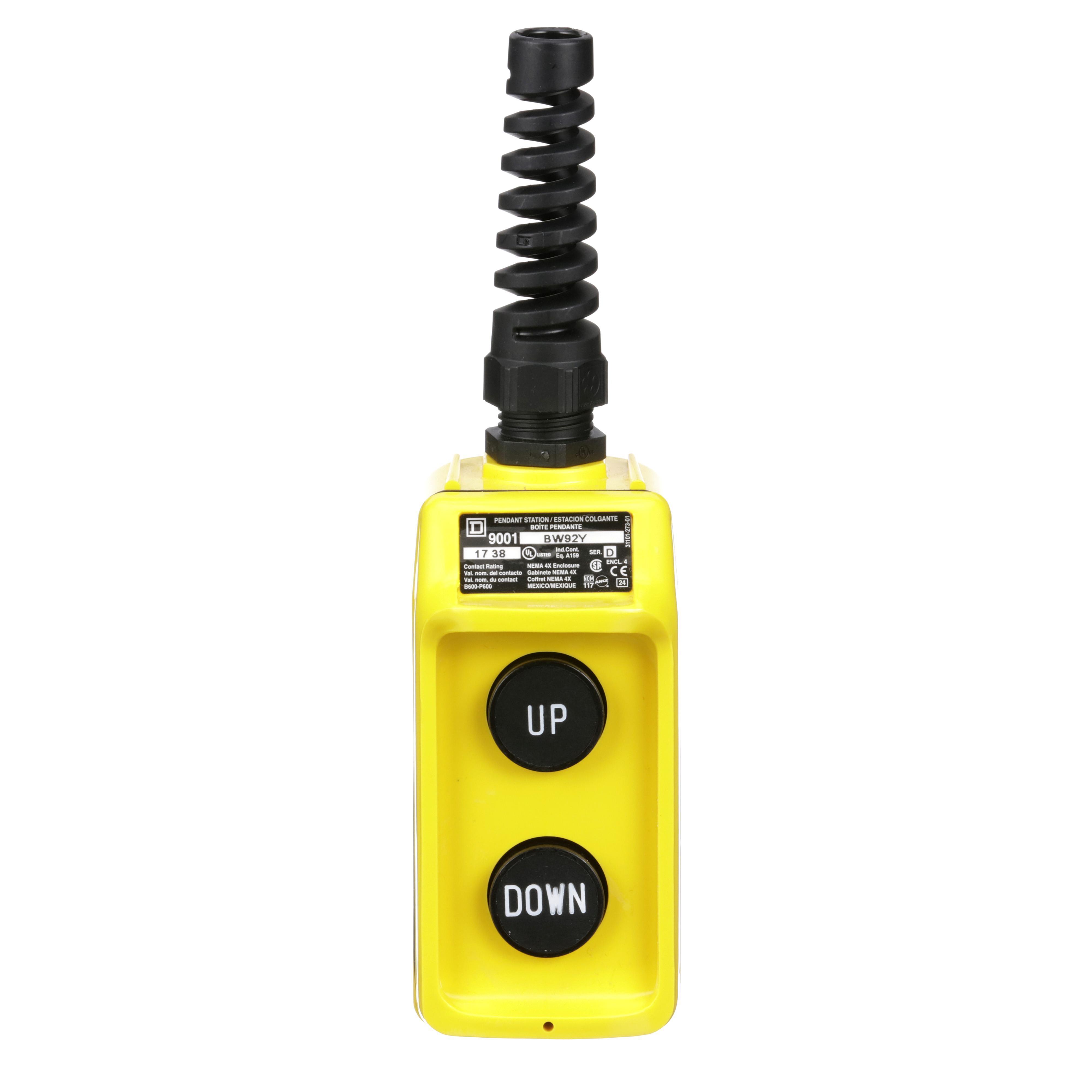

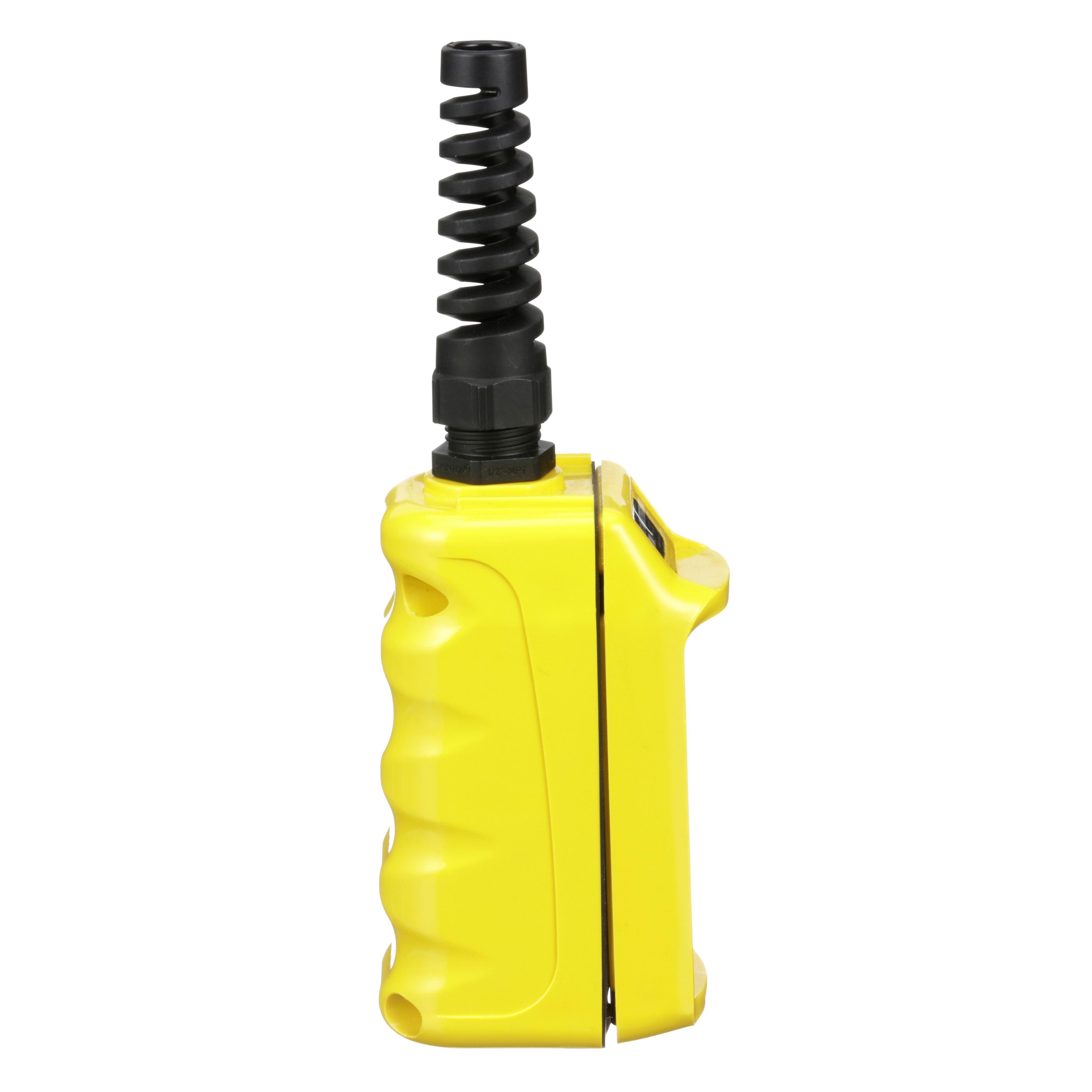

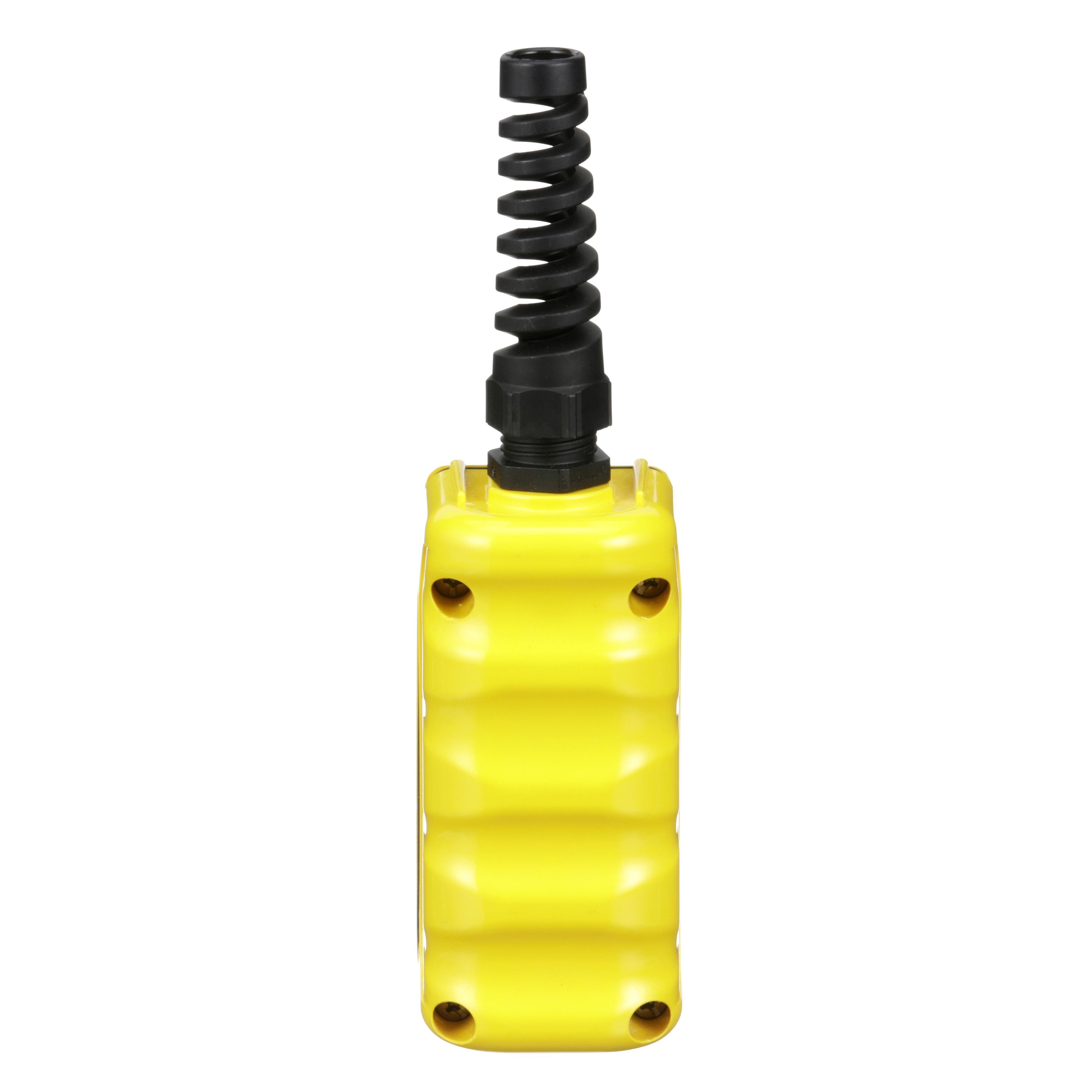

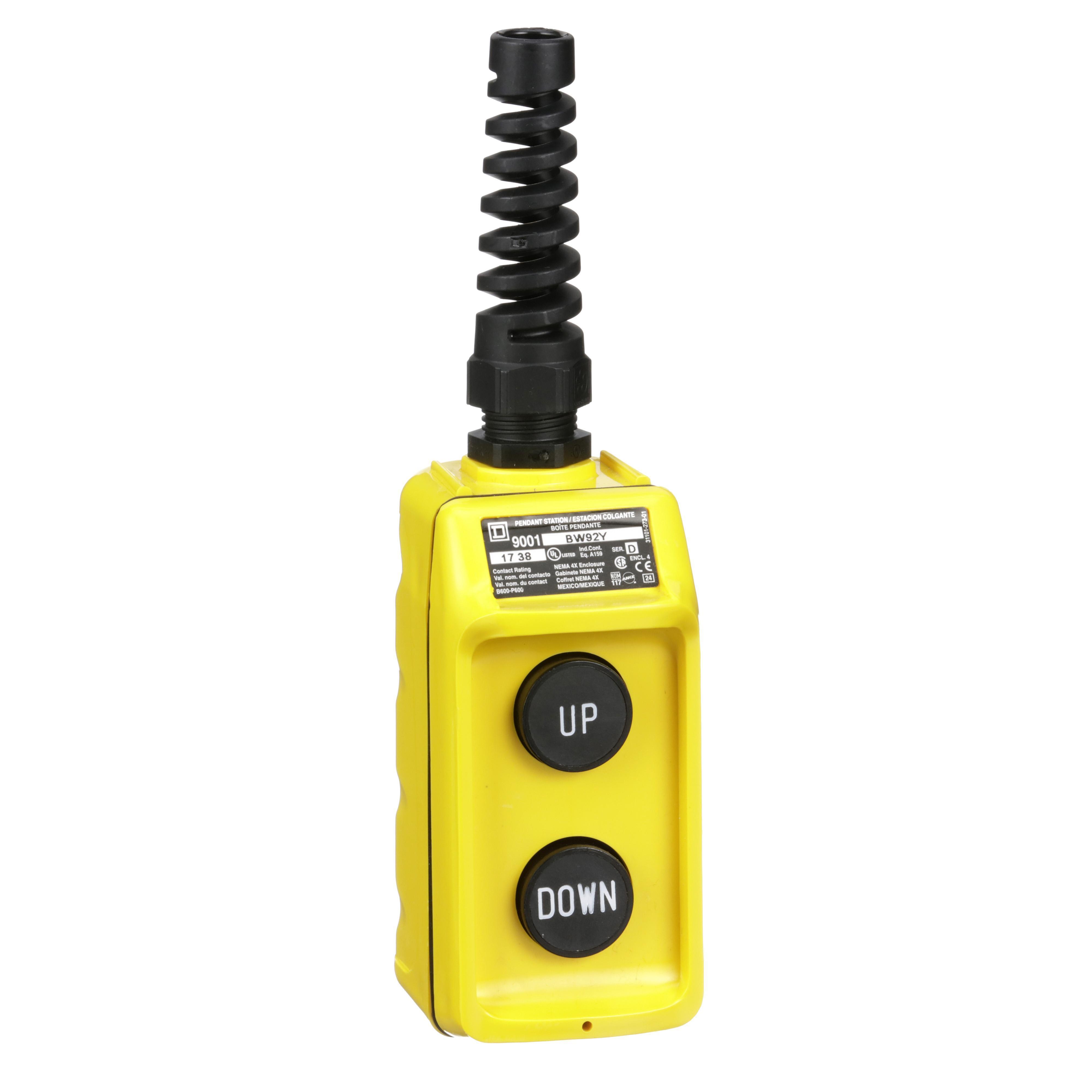

9001BW pendant stations have two push buttons that are fully assembled and are used for standard hoist applications. They can be used for single speed or two speed applications. These pendant stations are easy to hold in one hand with a contoured grip. They can have momentary and maintained contacts. The 9001BW pendant station enclosures can be yellow, black or red. The enclosures are made of high impact thermoplastic and have a self extinguishing flammability rating of UL94V. 9001BW pendants are often used for simple hoisting applications, for overhead cranes, for building cranes, for lifts, and jogging applications on conveyor systems. These 9001BW pendant stations are watertight, dusttight, oiltight, and corrosion resistent and have NEMA 1, 3, 3R, 4, 4X, & 13 ratings.
-
BrandSquare D™
-
UPC785901663683
-
Manufacturer Part Number9001BW92Y
-
CountryUSA
-
MaterialPlastic/Polycarbonate
-
ColorYellow
-
TypeType BW
-
Contact Configuration1NO-1NC
-
Contact FormMomentary
-
Mounting TypePanel
-
Contact Rating5 A 600 VAC
-
NEMA RatingNEMA 1/3/3R/4/4X
-
Voltage Rating600 V AC
-
Amperage Rating5 A
-
Series9001B
-
Dimensions4.25 in H x 2.76 in W x 3.6 in D
-
LegendUp-Down
- 1/2-14 NPT cable entry
-
Alternative Part Number11058126
-
UNSPSC39121561
-
IDEA Index ID11058126
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|PPROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Warranty18 months
-
RoHS
-
Specification Sheet
-
Owners/User Manual
