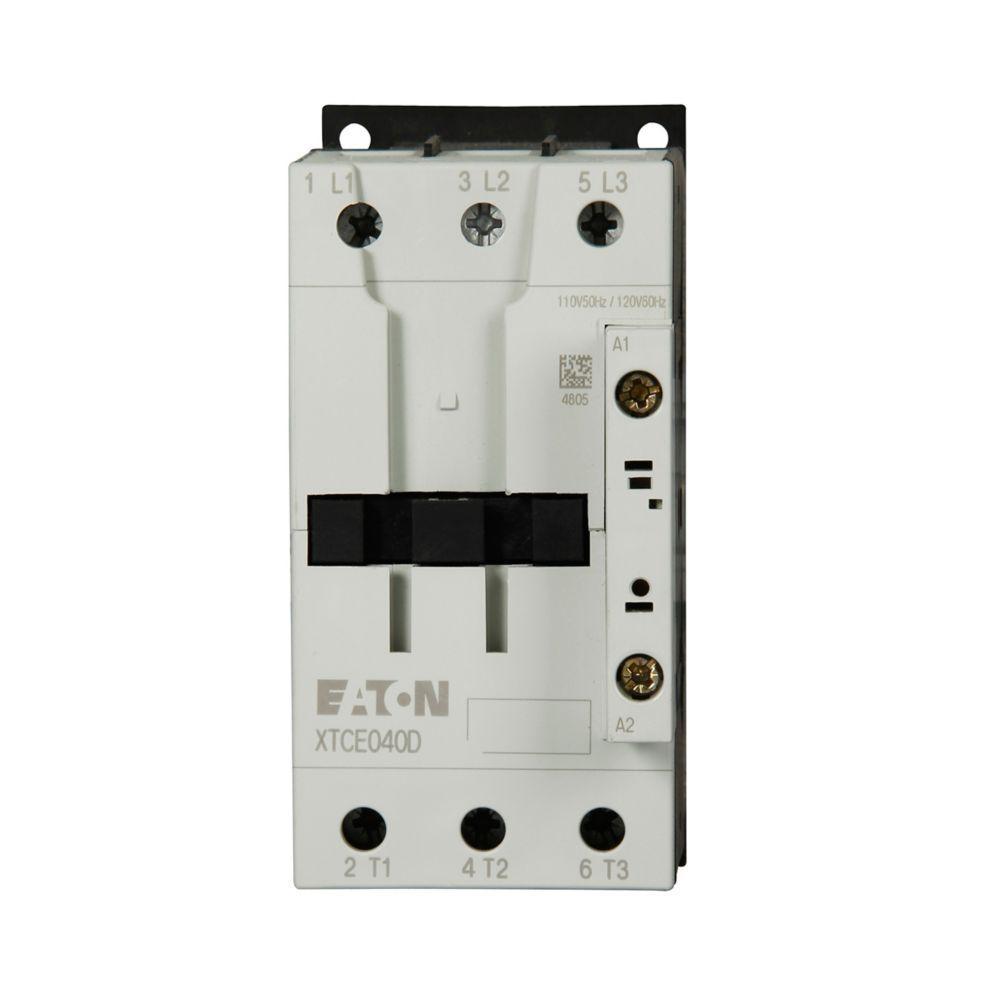

EATON XTCE040D00A Full Voltage Non-Reversing IEC Contactor, 110/120 V AC V Coil, 40 A, 0NO-0NC Contact, 3 Poles
Small size. Big impact. The XT IEC contactors are powerful, efficient and versatile, and can be combined with our full range of electronic overload relays and bimetal relays. These DC devices stand out for their reduced power consumption, which makes them more energy efficient and also reduces the size of the power supply units. XT IEC contactors are suitable for global use and cover the entire output range, from mini contactor relays (up to 7 A) all the way to vacuum contactors (up to 3180 A).
-
BrandEATON
-
Manufacturer Part NumberXTCE040D00A
-
CountryUSA
-
Terminal TypeScrew
-
Maximum Load Current40 A
-
Frequency Rating50/60 Hz
-
Coil Power Rating3 hp, 5 hp, 7-1/2 hp, 10 hp, 15 hp, 30 hp, 40 hp
-
Coil Voltage110/120 V AC
-
TypeFull Voltage Non-Reversing
-
Contact Configuration0NO-0NC
-
Mounting TypeDIN Rail/Panel
-
Contact TypeNon-Reversing
-
Wattage12.5/18.5/23/24 kW
-
SeriesXT Series
-
Number of Poles3
-
Dimensions6-1/4 in L x 5 in W x 2-1/2 in H
-
Size55 mm
-
Operating Temperature-13 to 122 deg F
-
Enclosure TypeIP20
- AC and DC controlled contactors in the same compact frame
- Low power consumption AC and DC coils
- Built-in NO/NC auxiliary contacts to 32 A
- Plug-in accessories for reduced installation time
- 3 hp at 115 VAC, 5 hp at 200 VAC, 7-1/2 hp at 230 VAC at 1 ph, 10 hp at 200 VAC, 15 hp at 230 VAC, 30 hp at 460 VAC, 40 hp at 575 VAC at 3 ph coil horsepower rating
- 12.5 kW at 220/230 VAC, 18.5 kW at 380/400 VAC, 24 kW at 415 VAC, 23 kW at 660/690 VAC wattage rating
- 110 VAC at 50 Hz, 120 VAC at 60 Hz coil voltage
-
Alternative Part Number11232583
-
UNSPSC39121529
-
IDEA Index ID11232583
-
Package DescriptionEACH
-
Standards/ApprovalsIEC 60947,UL Listed,EN 60947,CSA Certified,CE Marked,RoHS Compliant
-
Warranty1 year
-
Specification Sheet
-
Owners/User Manual
