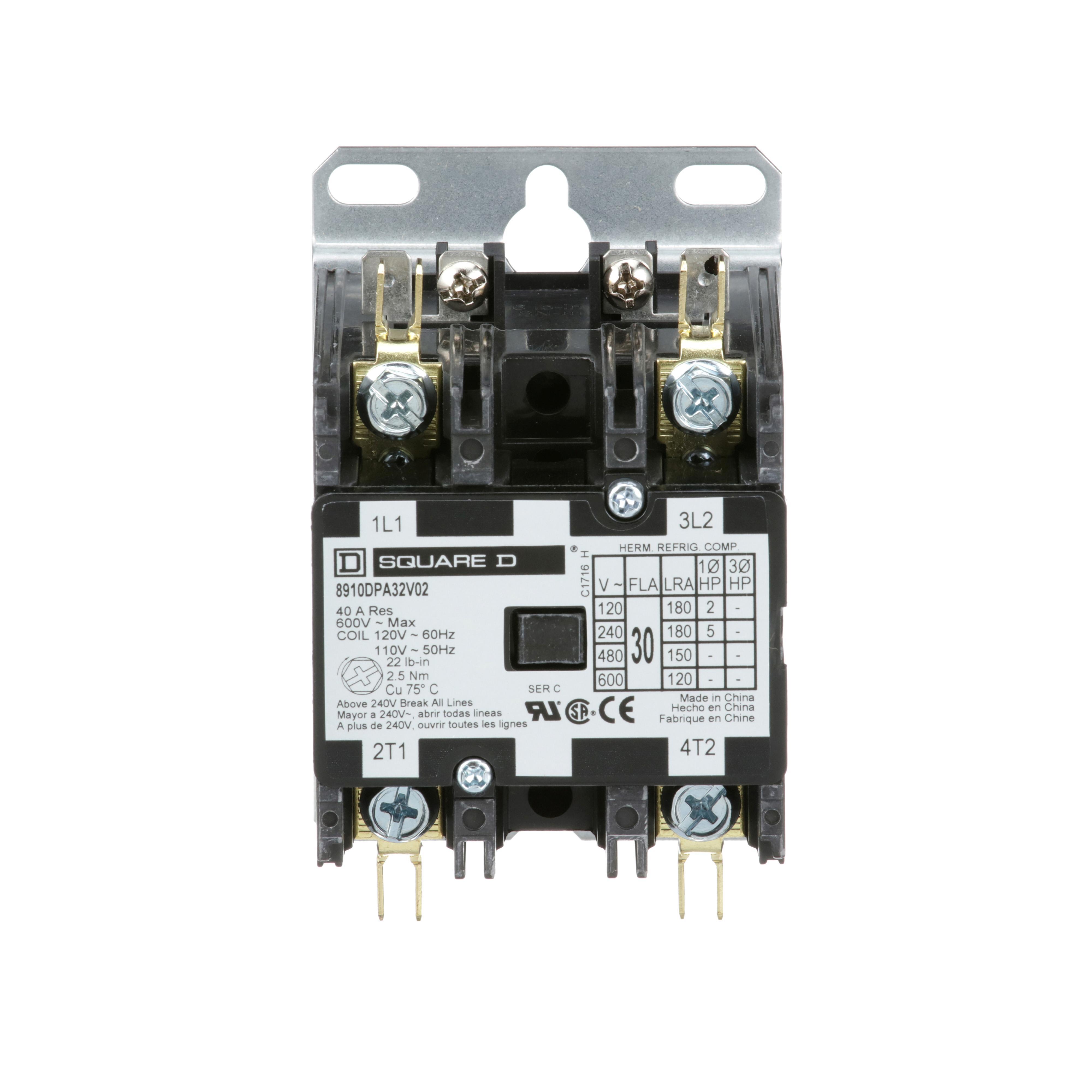

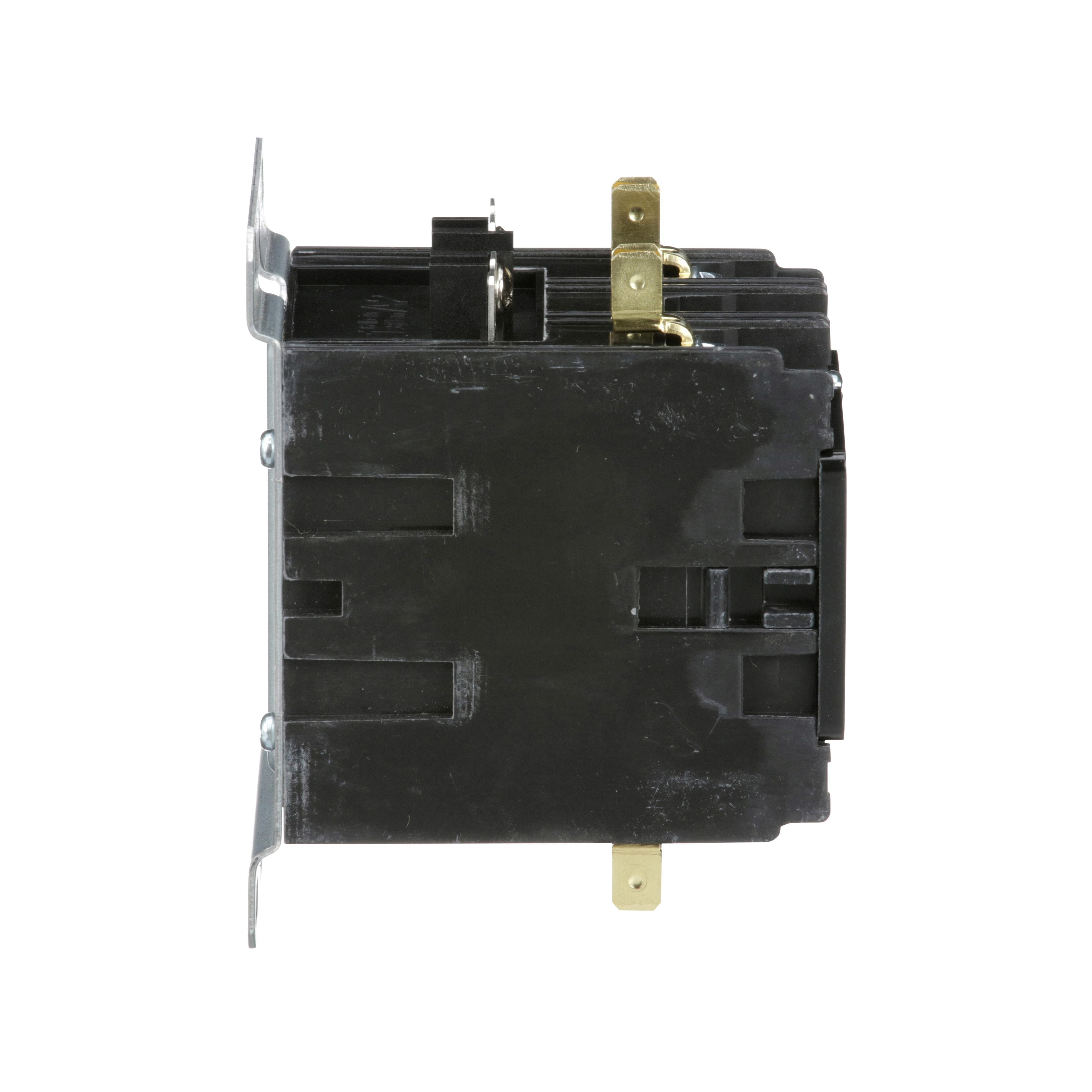

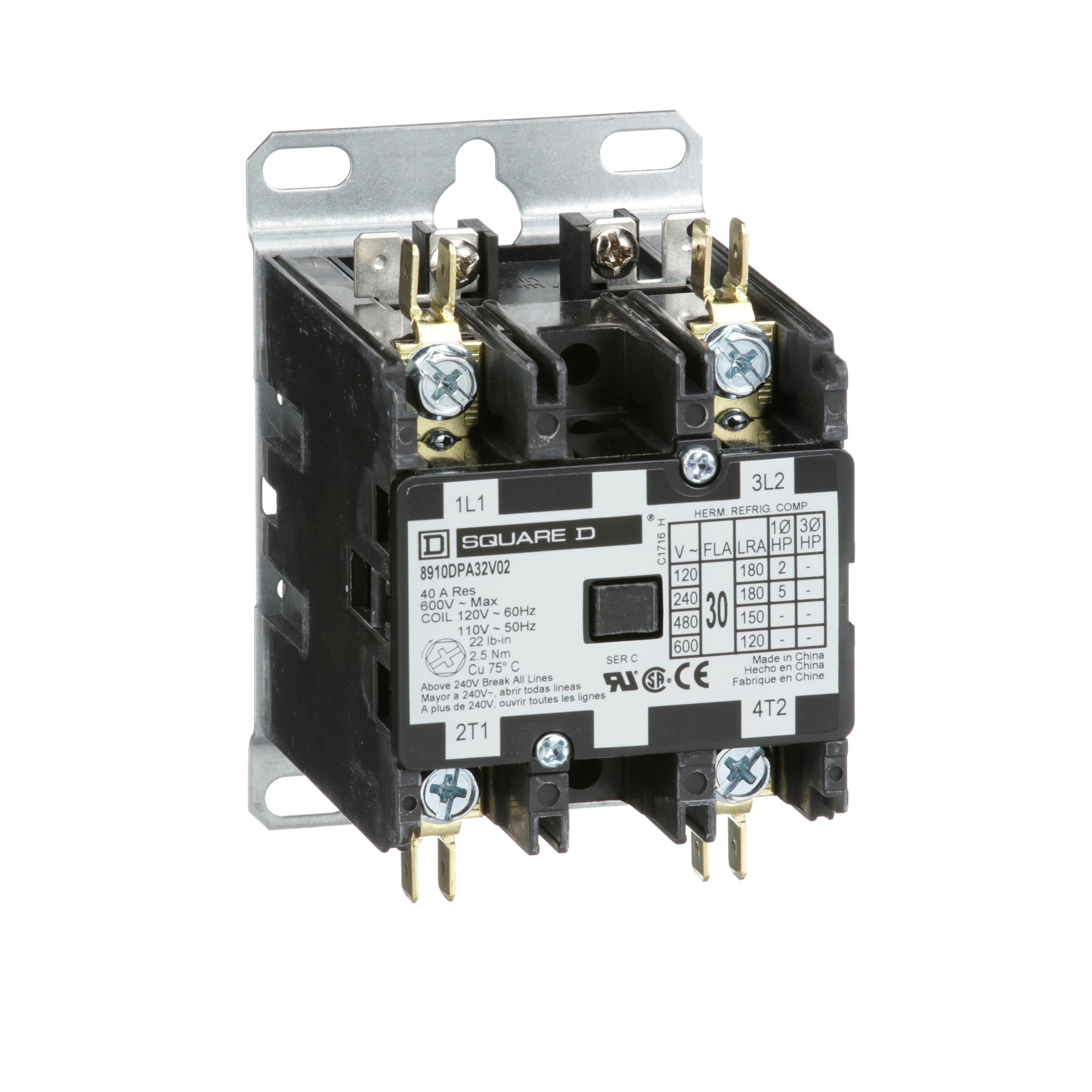

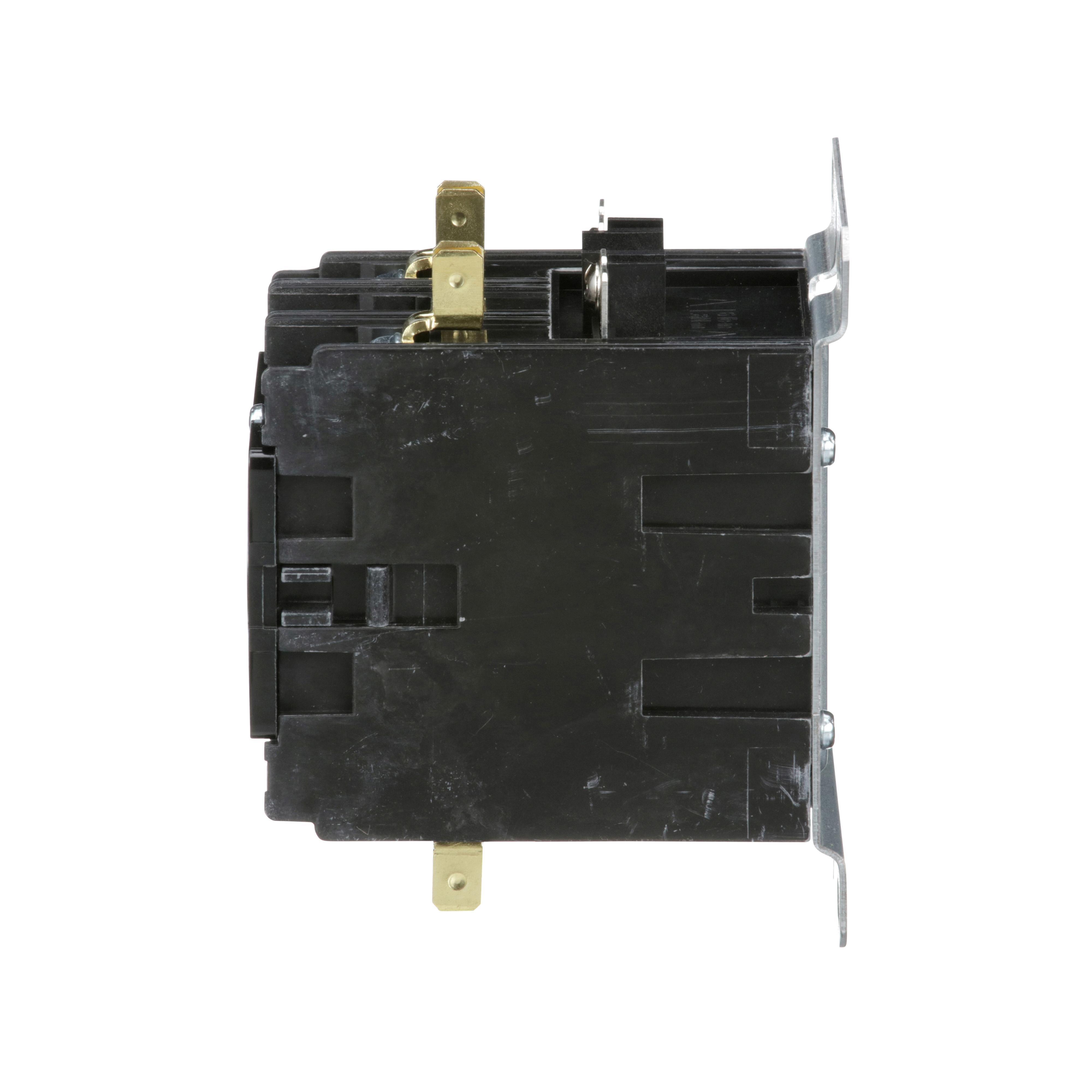

Square-D 30-AMP 2-POLE 120-VOLT CONTACTORS SQU 8910-DPA-32-V-02
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
-
BrandSquare D™
-
UPC785901116967
-
Manufacturer Part Number8910DPA32V02
-
CountryUSA|Canada
-
Terminal TypeBinding Head Screw/Quick-Connect
-
Maximum Load Current30 A
-
Frequency Rating50/60 Hz
-
Coil Power Rating2 hp at 115 VAC/5 hp at 230 VAC
-
Coil Voltage110/120 V AC
-
TypeElectro-Mechanical
-
Connection TypeQuick-Connect/Binding Head Screw
-
Contact Configuration2NO
-
Mounting TypePanel
-
Contact Rating600 V AC
-
Contact TypeNon-Reversing
-
Series8910DPA
-
Number of Poles2
-
Dimensions50.8 mm H x 62.2 mm W x 84.3 mm D
-
Operating Cycles500000 Cycles
-
Operating Temperature0 to 65 deg C
-
Enclosure TypeOpen
- Electrical systems protection from overloads and short circuits
- Quick connect terminals and binder head screws for easy wiring
- Compact design and exclusive DIN mounting option
- Low Coil VA
- Straight-Through Wiring
- Continuous Duty Cycle
-
Alternative Part Number8033462
-
UNSPSC39121529
-
IDEA Index ID8033462
-
Package DescriptionEACH
-
Standards/ApprovalsCCN Guide No. NLDX2|CE Certified|CSA File No. LR25490/Class 3211-04|RoHS Compliant|UL File No. E3190|UL Recognized|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov
-
Warranty18 months
-
RoHS
-
Specification Sheet
-
Technical Bulletin
