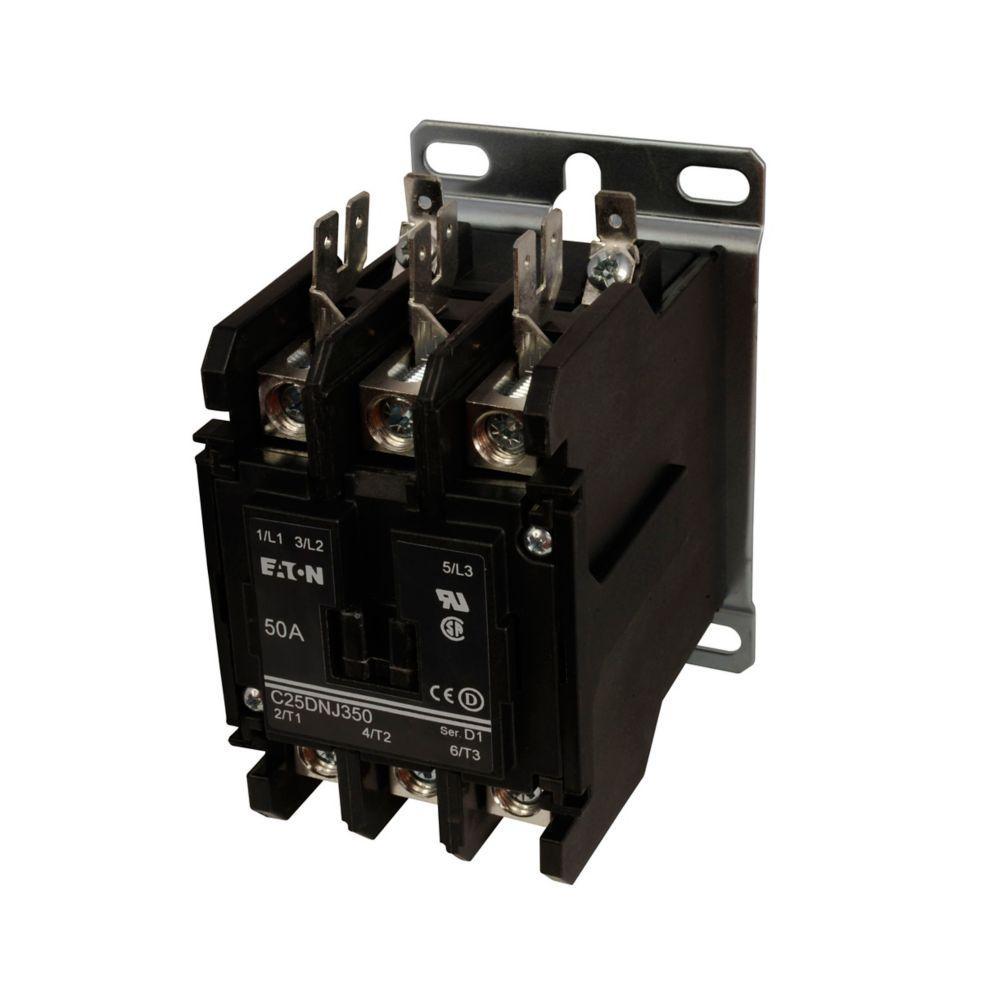

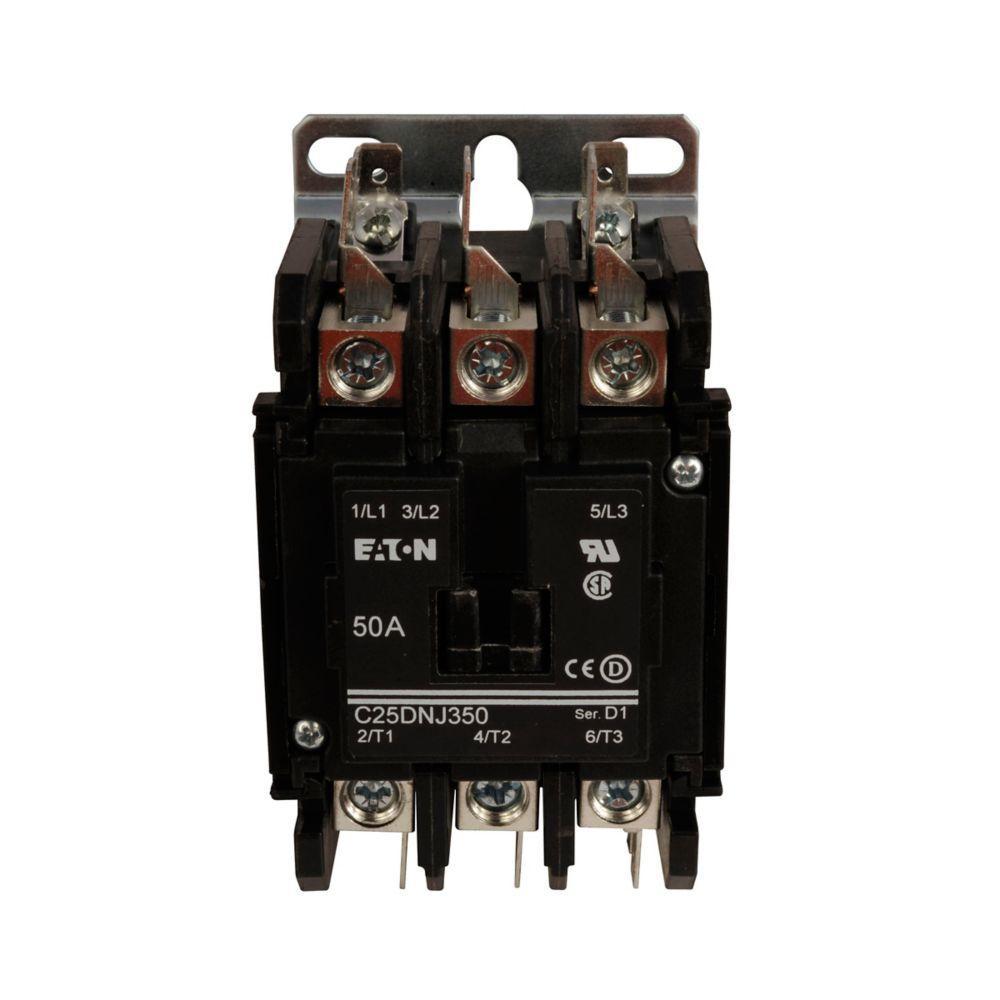

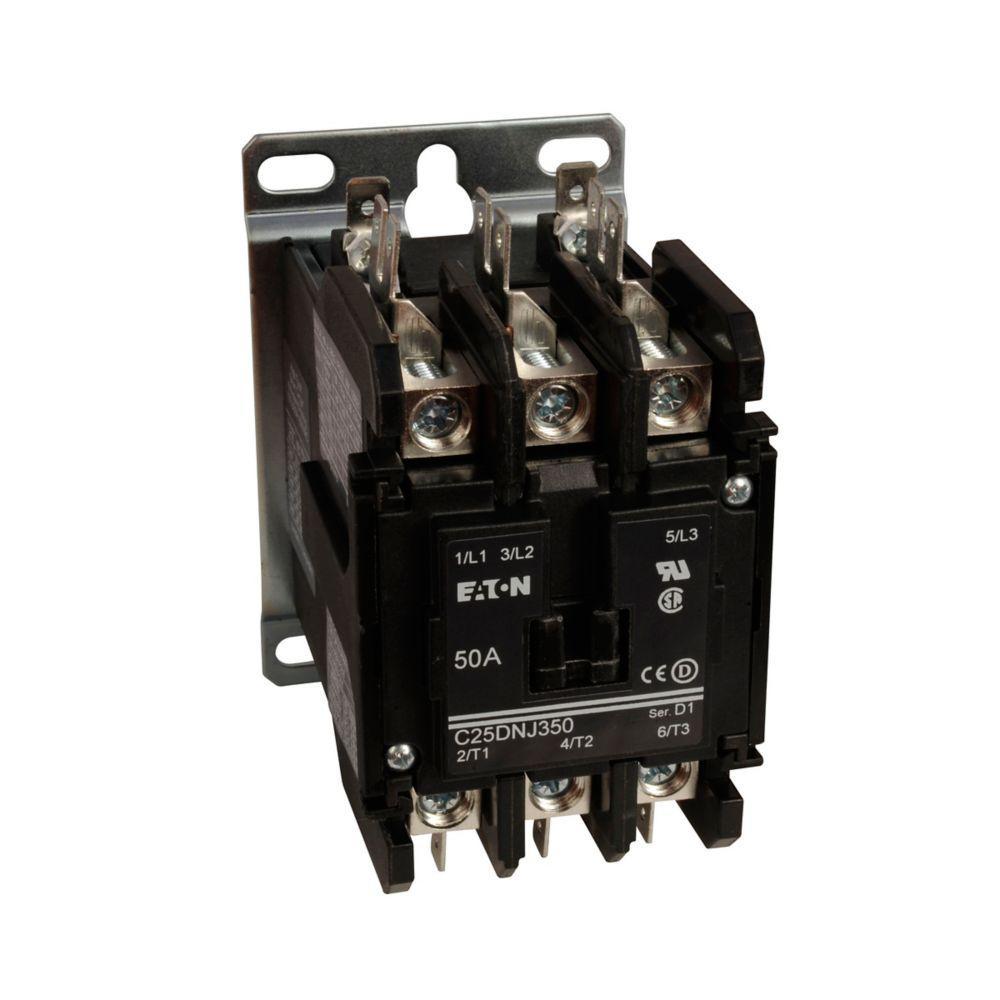

EATON C25DNJ350A D-Frame Non-Reversing Definite Purpose Control Contactor With Metal Mounting Plate, 110 to 120 V AC at 50/60 Hz V Coil, 50 A Inductive/65 A Resistive, 1NC Contact, 3 Poles
Definite purpose contactors and starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry.
-
BrandEATON
-
UPC782116300723
-
Manufacturer Part NumberC25DNJ350A
-
CountryUSA
-
Terminal TypeBox Lug
-
Maximum Load Current50 A Inductive/65 A Resistive
-
Coil Voltage110 to 120 V AC at 50/60 Hz
-
TypeD-Frame Non-Reversing
-
Connection TypeQuick-Connect (Vertical In-Line)
-
Contact Configuration1NC
-
Mounting TypeSurface
-
Contact TypeDouble Break
-
Number of Poles3
-
Dimensions4 in L x 2.6 in W x 3.8 in H
-
Operating Cycles300000 Cycles
-
Operating Temperature150 deg F
-
Enclosure TypeOpen
- The universal mounting plate eliminates changing hole patterns when replacing competitive devices
- Variety of terminal styles allows product to meet all specific application needs
- Snap-on accessories require no tools for hassle-free installation
- Quick coil changing ability allows for easy maintenance
- Non-position sensitive mounting allows for fast, convenient setup
- Shrouded or fingerproof terminals to reduce possibility of electrical shock
- 15 to 50 A frame
-
Alternative Part Number7406357
-
UNSPSC39121529
-
IDEA Index ID7406357
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed file E1491 (Guide Number NLDX2),CSA Certified,RoHS Compliant,CE Marked
-
Warranty1 year
-
Specification Sheet
