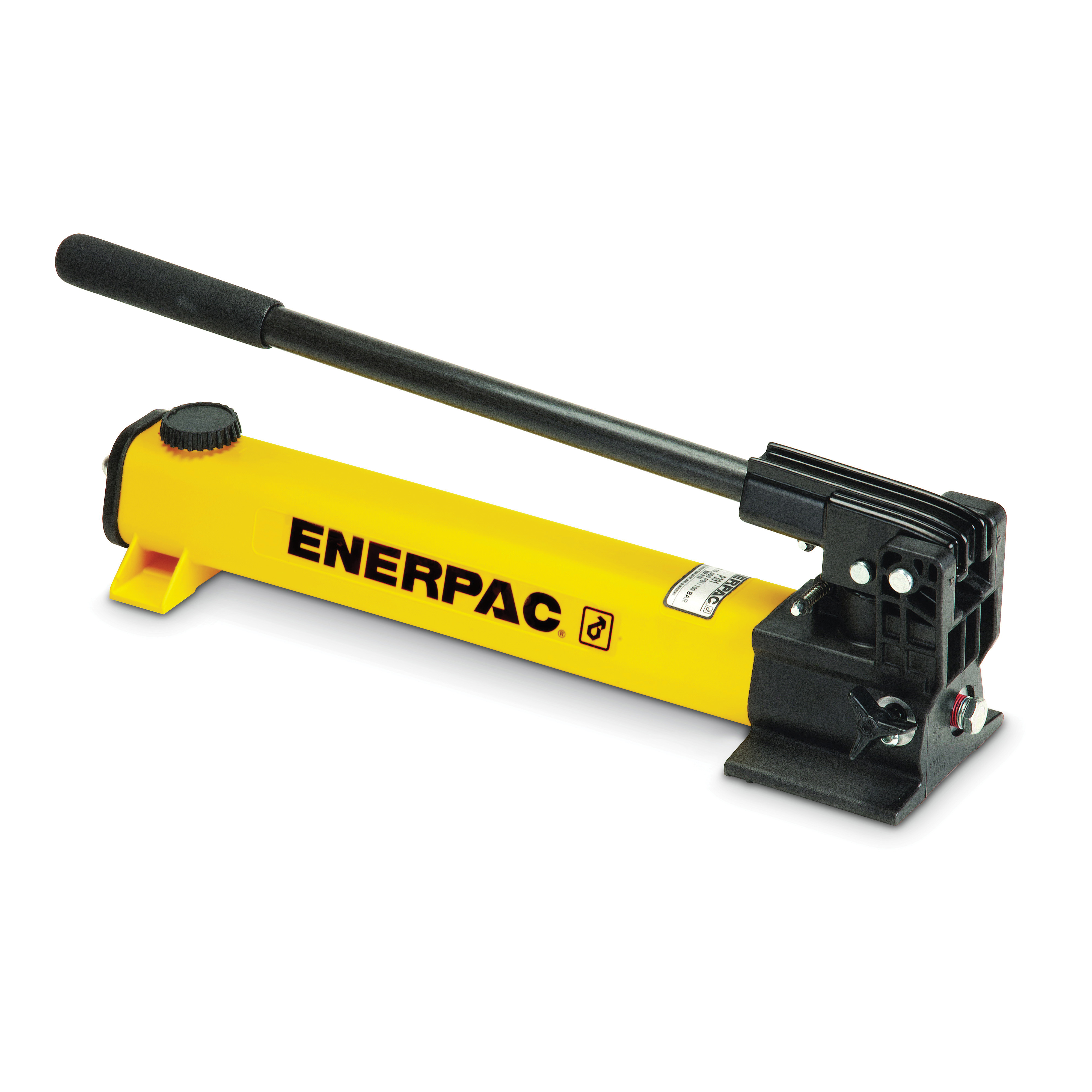

Enerpac® P-391 P-Series 1-Speed 2-Stage Lightweight Hydraulic Hand Pump, 55 cu-in Tank
Enerpac® P-391 P-Series 1-Speed 2-Stage Lightweight Hydraulic Hand Pump, 55 cu-in Tank
-
BrandEnerpac®
-
UPC662005107063
-
Manufacturer Part NumberP-391
-
CountryUSA
-
Port Size3/8-18 NPTF
-
Pressure Rating10000 psi (2nd Stage)
-
Fluid TypeOil
-
Type1-Speed 2-Stage Lightweight
-
SeriesP-Series
-
Overall Height7 in
-
Overall Length21 in
-
Overall Width4-3/4 in
-
Tank Capacity55 cu-in
- Enerpac® high pressure, hydraulic Lightweight hand pumps feature a compact design
- Durable glass filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance
- Lower handle effort to minimize operator fatigue
- Integral 4-way valve on P-842 for operation of double acting cylinders
- Handle lock and Lightweight construction for easy carrying
- Large oil capacities to power a wide range of cylinders or tools
- Non-conductive fiberglass handle for operator safety
- Internal pressure relief valve for overload protection
- 1 phase
- Release valve
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100189411 |
-
UNSPSC40151500
-
Package Description1/PK
-
WarrantyLimited
-
Warranty Information
-
Catalog
-
Instruction/Installation Manual
