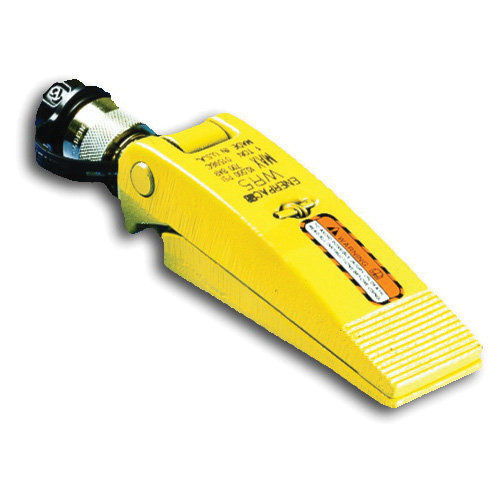

Enerpac® WR-5 WR Series Single Acting Spring Return Hydraulic Wedge and Spread Cylinder, 223 mm L x 51 mm H, 1 ton x 94 mm Spreading, Steel Jaw
Enerpac® WR-5 WR Series Single Acting Spring Return Hydraulic Wedge and Spread Cylinder, 223 mm L x 51 mm H, 1 ton x 94 mm Spreading, Steel Jaw
-
BrandEnerpac®
-
UPC662005800940
-
Manufacturer Part NumberWR-5
-
CountryUSA
-
MaterialSteel Jaw
-
TypeSingle Acting Spring Return
-
Height51 mm
-
Width51 mm
-
SeriesWR Series
-
Bare Tool/KitBare Tool
-
Spreading Distance94 mm
-
Spreading Force1 ton
-
Length223 mm
- 1 sq-in cylinder effective area
- Single-acting, spring-return cylinder
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100190424 |
-
UNSPSC27121602
-
Package Description1/PK
-
WarrantyLimited
-
Warranty Information
-
Specification Sheet
